Template for Profile Series 8800

Open the original PDF document

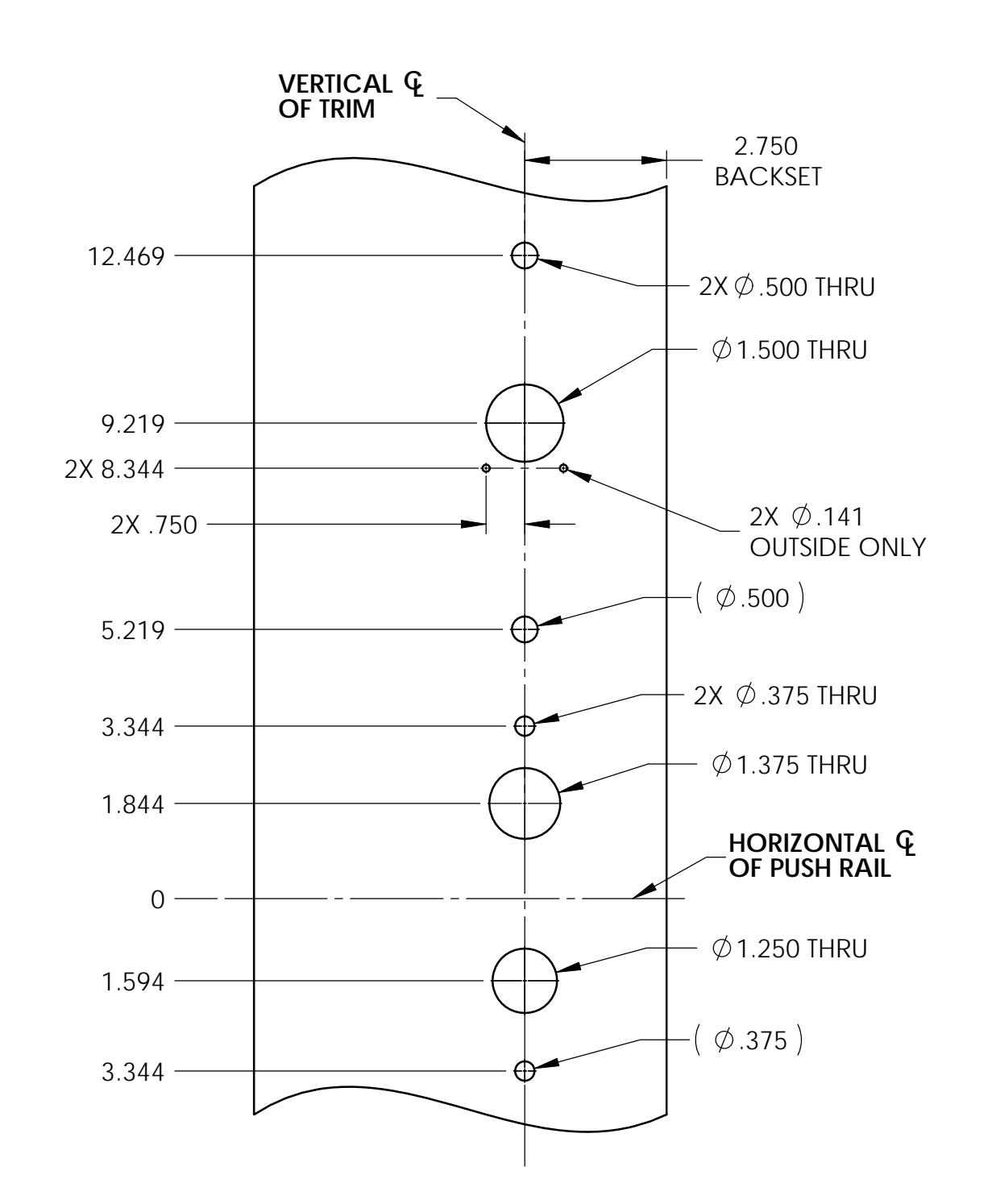

METAL DOOR LHRB DOOR SHOWN

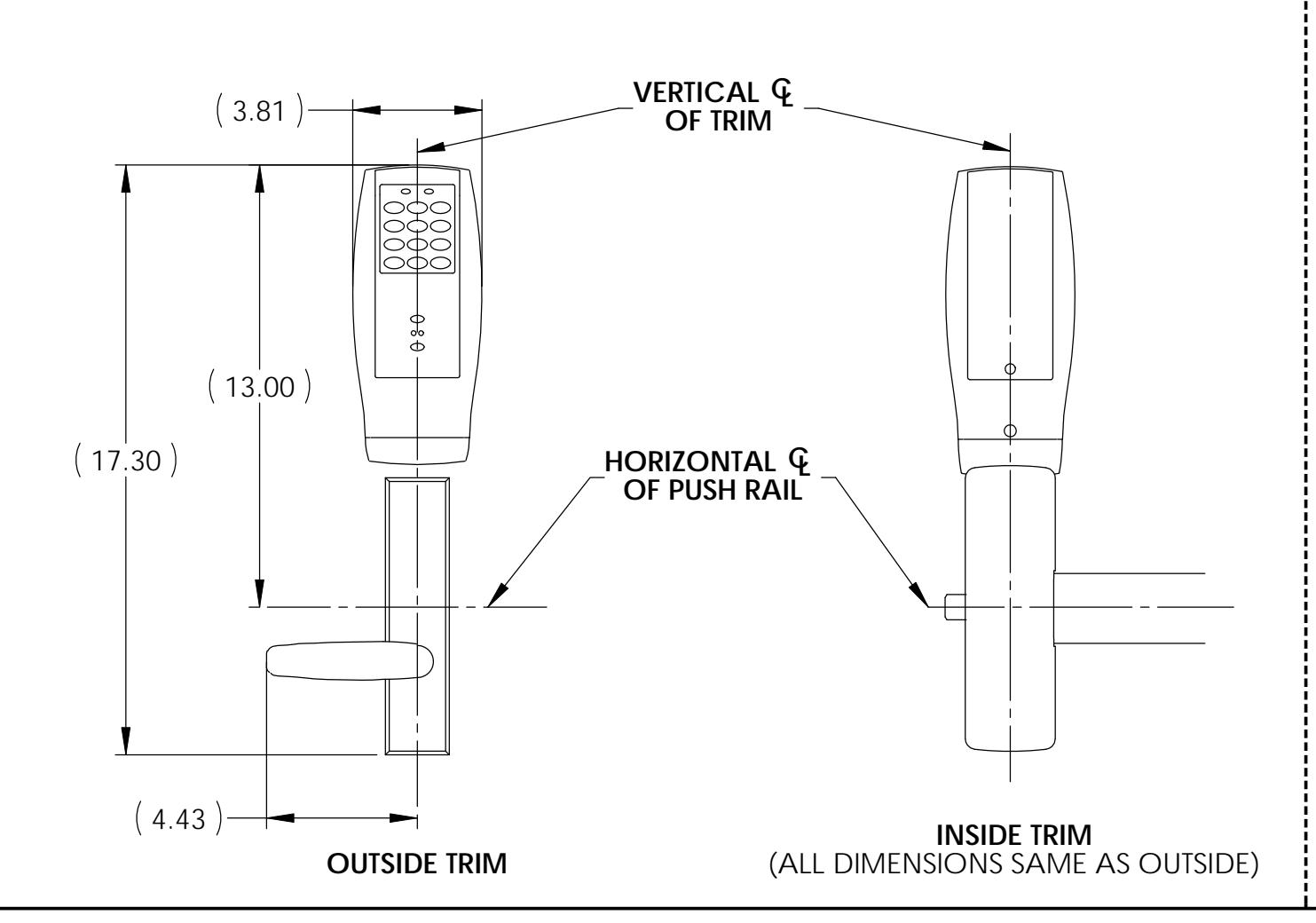

OUTSIDE OF DOOR

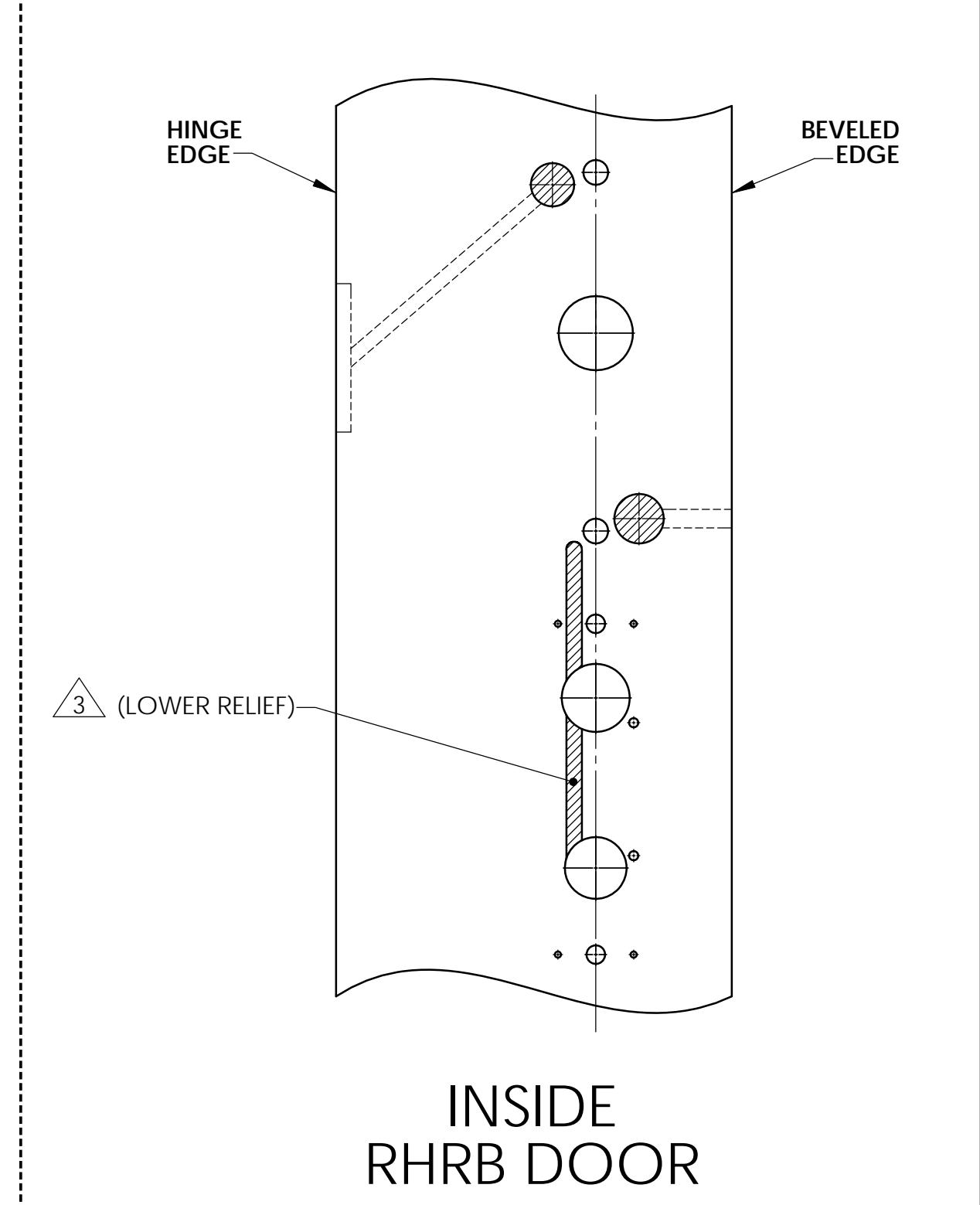

RHRB DOOR

SARGENT Sargent Manufacturing Company

DOOR MANUFACTURE TEMPLATE 8800 RIM EXIT DEVICE PROFILE SERIES

release date 21-NOV-11 EMPLATE NO. METAL DOOR (SHEET 1 OF 2) 4640 F

100 Sargent Drive New Haven, CT 06511

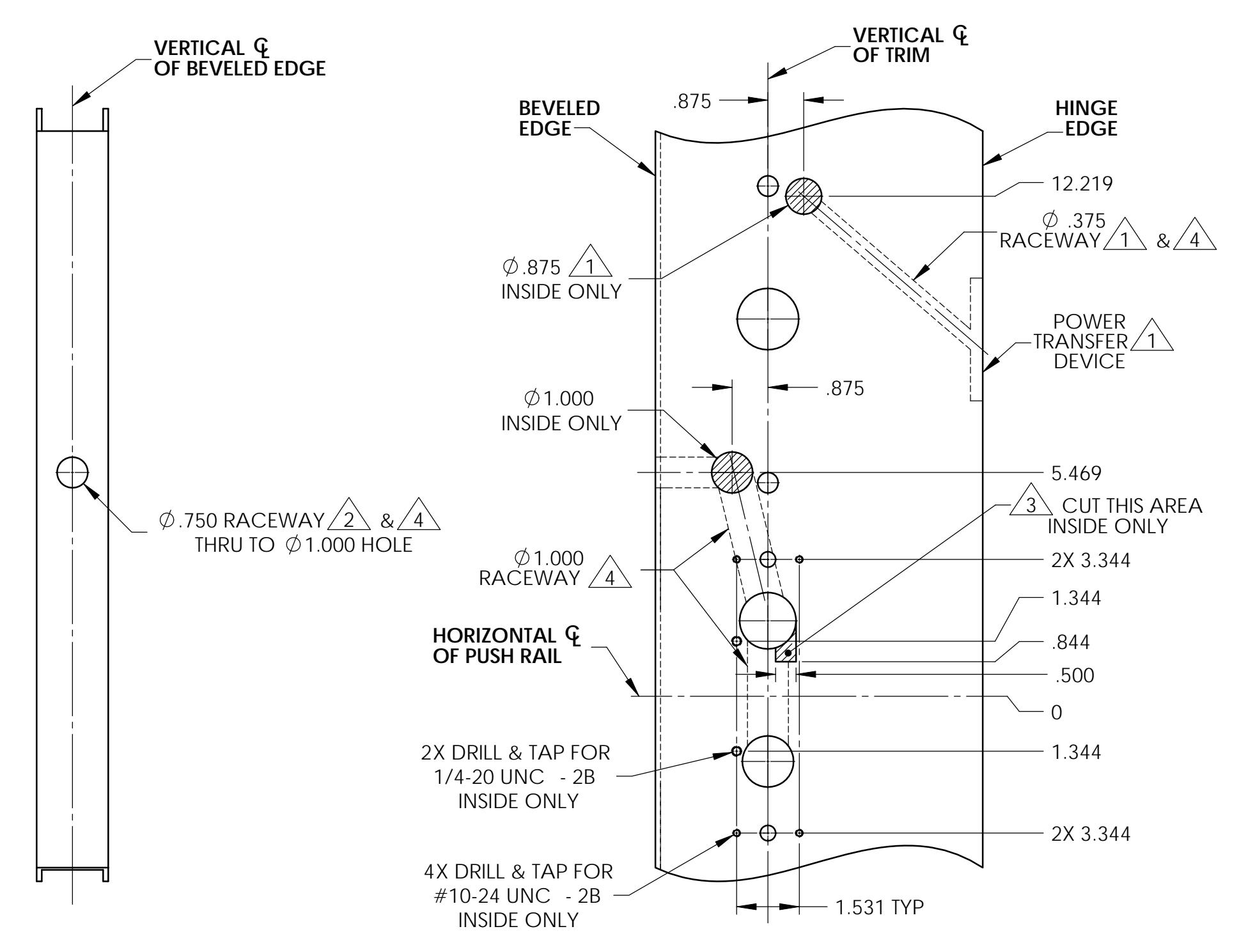

1. FEATURES FOR N1- (WIEGAND), S1- (POWER OVER ETHERNET), AND 91- (HARD WIRED) PREFIXES ONLY. a. $\emptyset$ .375 RACE WAY FOR ELECTRO LYNX APPLICATIONS REFER TO MCKINNEY TRANSFER CATALOG. b. DOOR MANUFACTURE TO PROVIDE CLEARANCE THRU REINFORCEMENT TO ALLOW INSERTION OF ELECTRICAL HINGE.
C. CONSULT WITH POWER TRANSFER MANUFACTURER FOR DEVICE CUTOUT. FEATURES FOR $1- (POWER OVER ETHERNET), $2- (WiFi), AND $1- (WIEGAND), AND $1- (POWER OVER ETHERNET), $2- (WIFI), $1- (WIEGAND), AND $1- (POWER OVER ETHERNET), $2- (WIFI), $1- (WIEGAND), AND $1- (POWER OVER ETHERNET), $1- (WIEGAND), AND $1- (POWER OVER ETHERNET), SUITABLE REINFORCEMENT REQUIRED FOR METAL DOORS.
BEVEL REQUIRED (NOT SHOWN), PREP TO ANSI A115 SPECIFICATIONS.
TOLERANCE ALL DIMENSIONS ±.015. FOR WOOD DOOR PREP SEE SHEET 2.

OUTSIDE OF DOOR

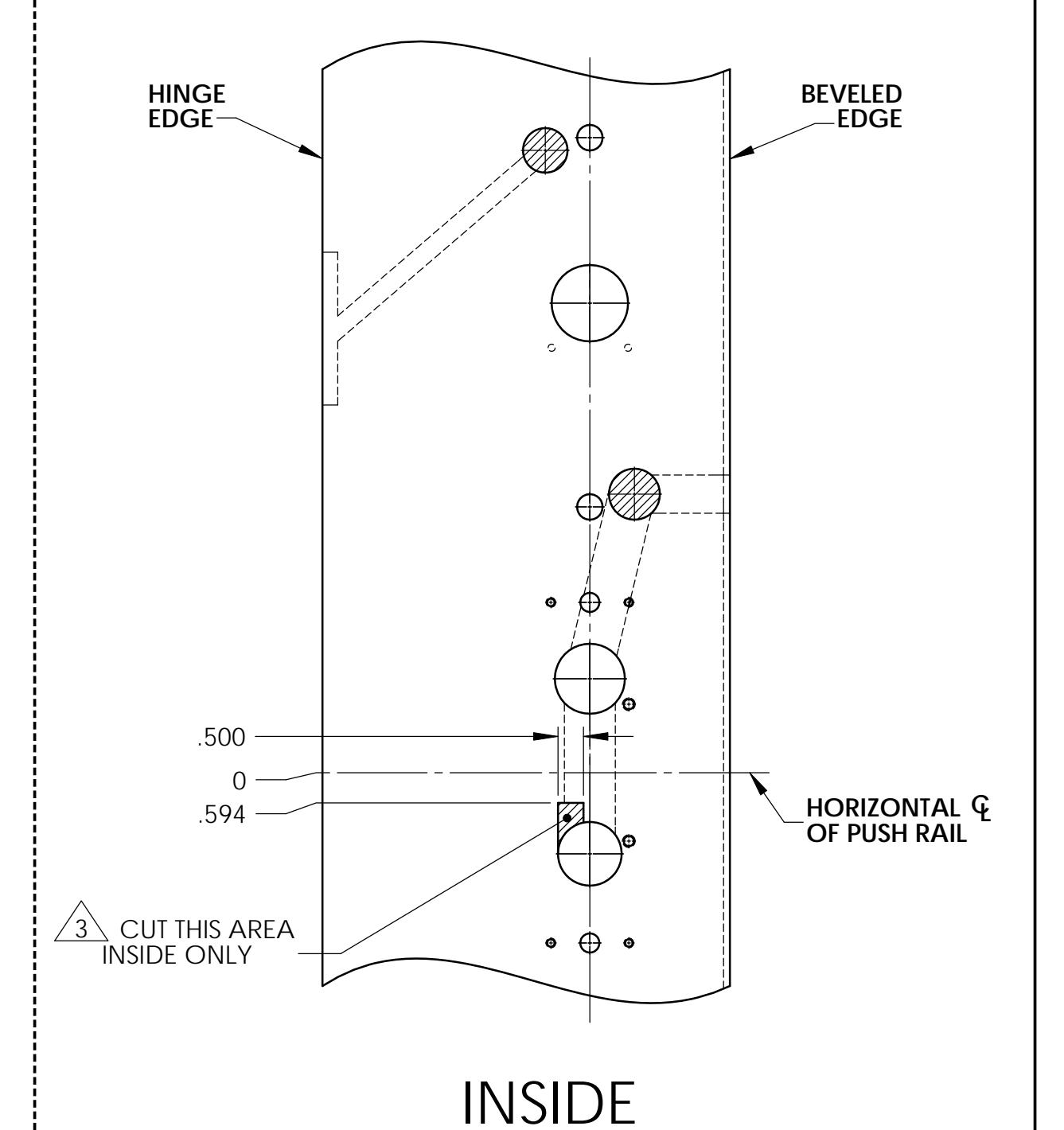

INSIDE OF DOOR

Sargent Manufacturing Company 100 Sargent Drive New Haven, CT 06511

DOOR MANUFACTURE TEMPLATE 8800 RIM EXIT DEVICE PROFILE SERIES

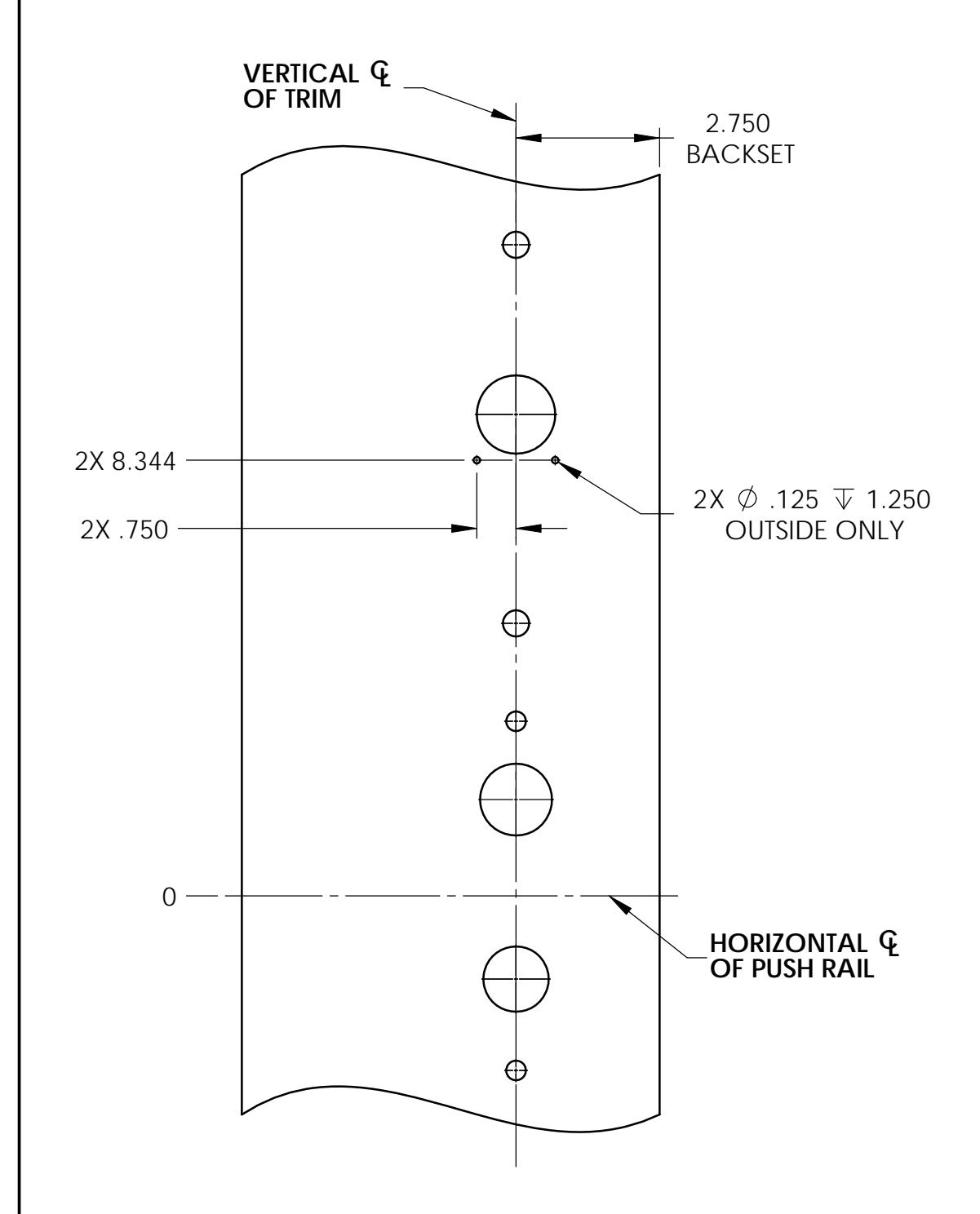

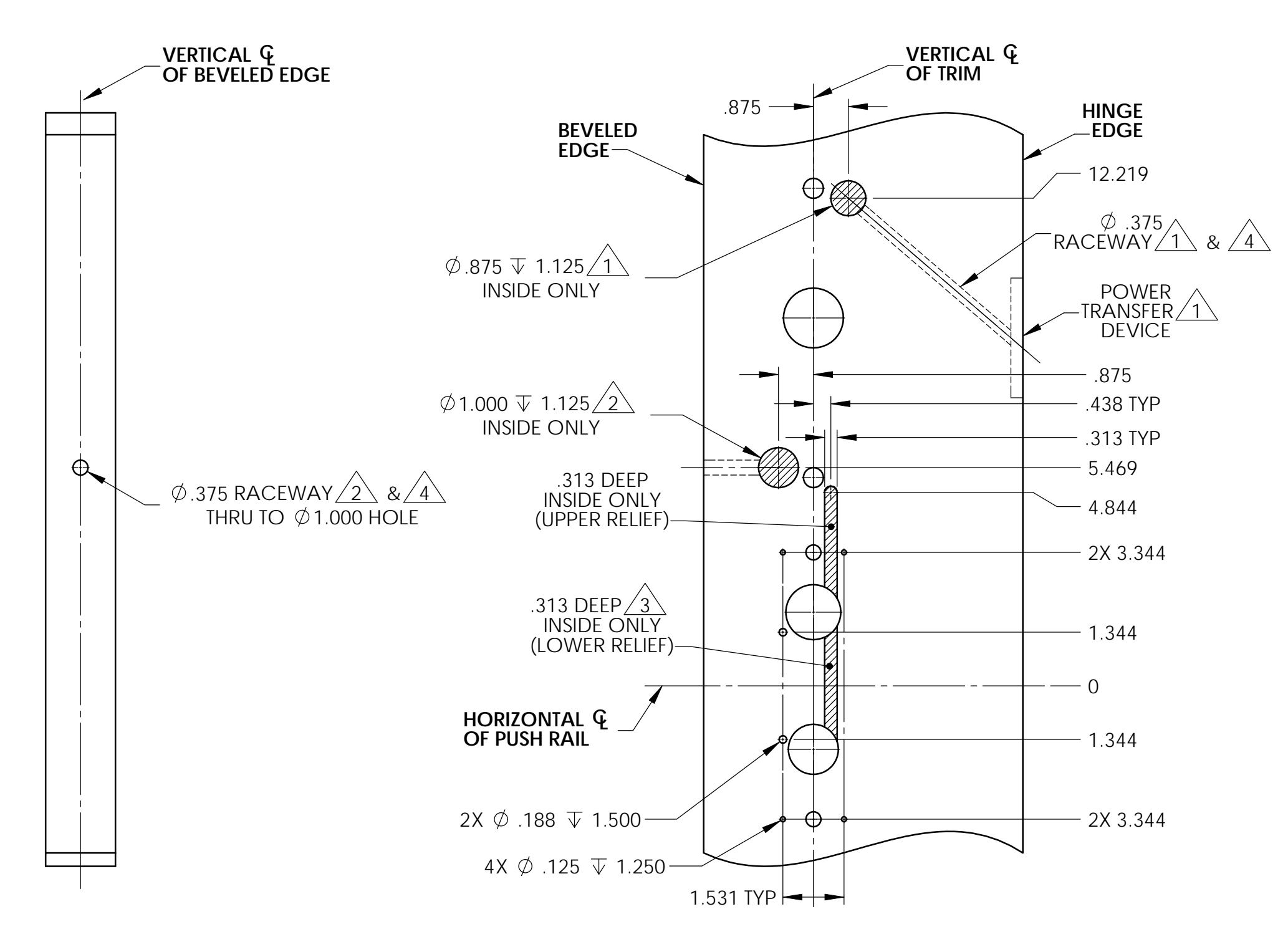

RELEASE DATE 21-NOV-11 EMPLATE NO. WOOD DOOR (SHEET 2 OF 2) 4640 F
