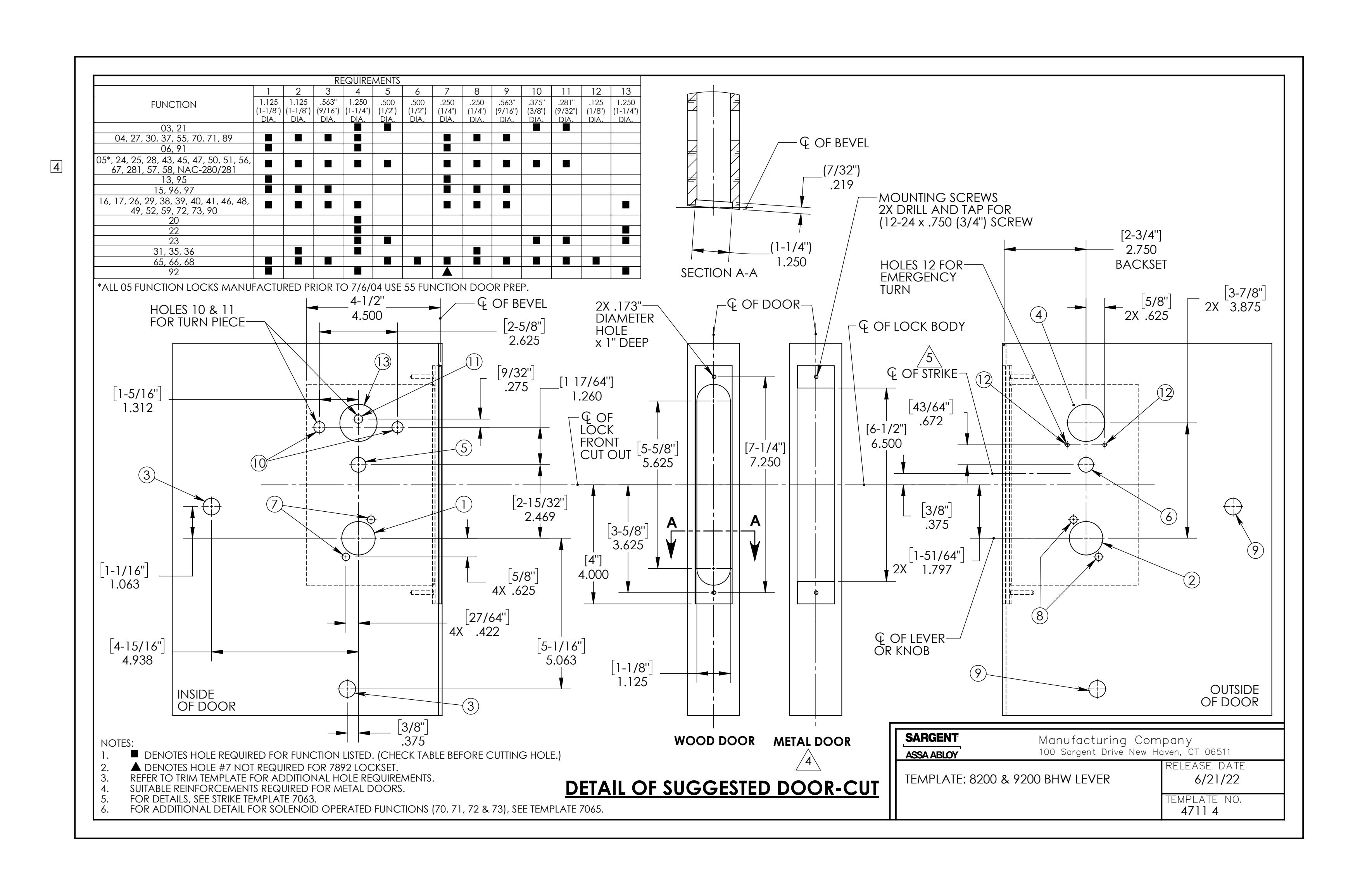

Template for 8200 & 9200 BHW Trim

REVISIONS DESCRIPTION APPROVED ZONE DATE REDRAWN AND REVISED PER EN728014 1. ADDED FUNCTIONS 57, 58 & NAC-280/281 TO CHART 2. ADDED NOTE 1 TO DRAWING 6/21/2022 TWF 6/21/22

NOTES: 1. MATERIAL AND MANUFACTURING PROCESS MUST COMPLY WITH ASSA ABLOY AMERICAS PRODUCT COMPLIANCE SPECIFICATION DOCUMENT ID# D001117360.

D

В

Α

4

NOTICE TO PERSONS RECEIVING THIS DRAWING AND/OR TECHNICAL INFORMATION he material disclosed herein is the confidential and proprietary information of Sargent Manufacturing Company (the "Company"). This drawing and/or technical information is issued in confidence for engineering information only and may not be reproduced or used to manufacture anything, including the items shown or referred to hereon, withou direct written permission from the Company. This drawir and/or technical information is the property of the

Company and is loaned for mutual assistance to be

4

UNLESS OTHERWISE DRAWING COMPLIES MATERIAL SPECIFIED TOLERANCES WITH ASME Y14.5M - 1994 Oak INCH X.XXX MM ANGLES ± 0°30' FRACTIONS ± 1/64 SURFACE FINISH 63/ THIRD ANGLE PROJECTION ASSA ABLOY returned when its purpose has been served or upon the request of the Company. 3.256 lb

TEMPLATE: 8200 & 9200 BHW TRIM MORTISE LOCK DATE CREATED 04/26/2018 DESIGNED BY HEAT TREATMENT SCALE 2:5 JRFACE/FINISH DOCUMENT ID D000919203-000 DRAWING NUMBER (ALT ID) 4711 VOLUME SURFACE AREA 371.528 in² REV 4

Approved 2022-07-19

CONFIGURATION Default LEGACY ID

SHEET 1 OF 1
