Template NB-8700 ET TRIM

METAL DOOR

SERIES	FUNCTIONS	FEATURE (1) ( SOLENOID )	FEATURE 2 ( 54- PREFIX )	RACEWAY LOCATION
	773-8, 774-8	X		A
NB 8700	54-773-8, 54-774-8	X	X	A
	ALL OTHER 54-700-8		X	В

NOTES:

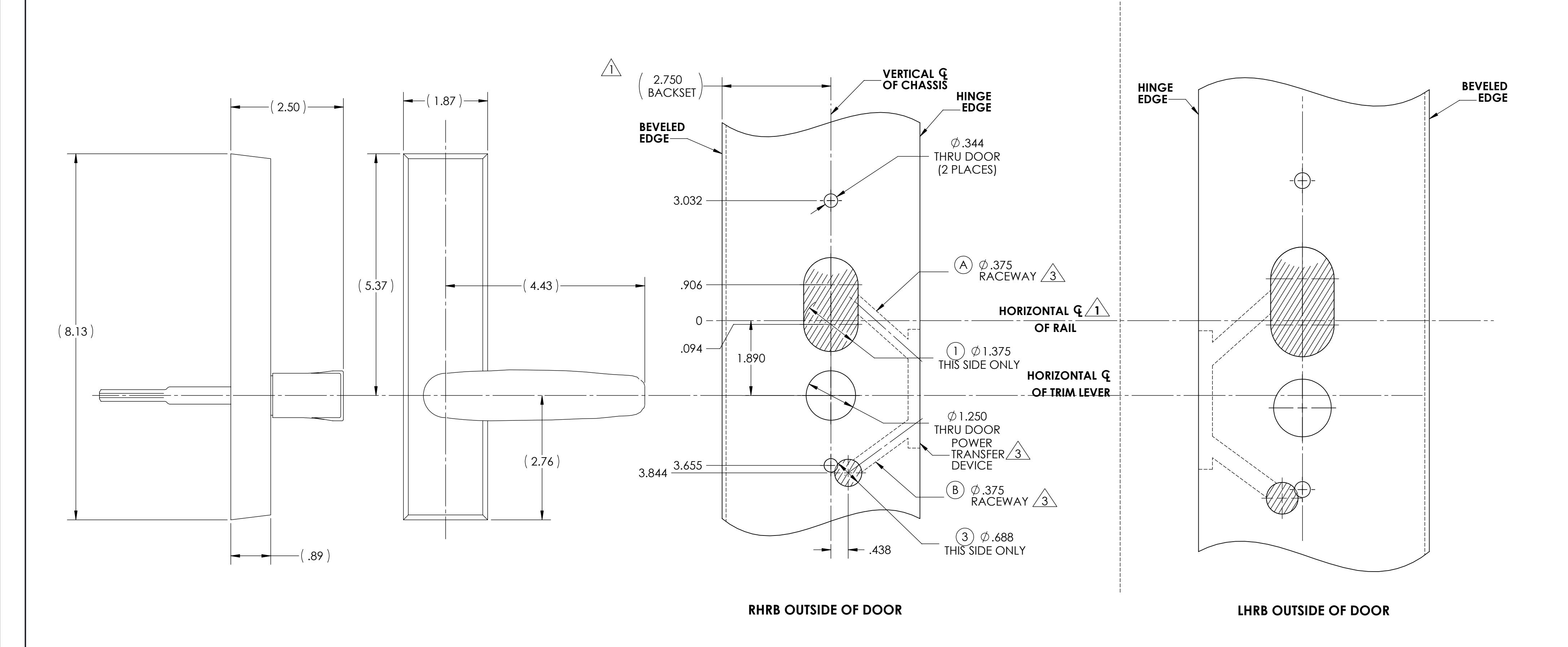

• FOR LOCATION OF VERTICAL CENTERLINES, HORIZONTAL CENTERLINES AND ALL ADDITIONAL EXIT DEVICES PREP. REFER TO APPROPRIATE EXIT DEVICE TEMPLATE. FOR ADDITIONAL "ET" TRIM DOOR PREP CUTOUTS REFER TO TEMPLATE 4414.
• a. $\backslash phi$ .375 RACE WAY FOR ELECTRO LYNX APPLICATIONS REFER TO MCKINNEY TRANSFER CATALOG. b. DOOR MANUFACTURER TO MAKE PROVISIONS TO PROTECT WIRES FROM ABRASION.
  • C. DOOR MANUFACTURE TO PROVIDE CLEARANCE REINFORCEMENT TO ALLOW INSERTION OF ELECTRICAL HINGE.
• d. CONSULT WITH POWER TRANSFER MANUFACTURER FOR DEVICE CUTOUT.
• SUITABLE REINFORCEMENT REQUIRED FOR METAL DOORS.
• BEVEL REQUIRED (NOT SHOWN), PREP TO ANSI A115 SPECIFICATIONS.
• TOLERANCE ALL DIMENSIONS ±.015.

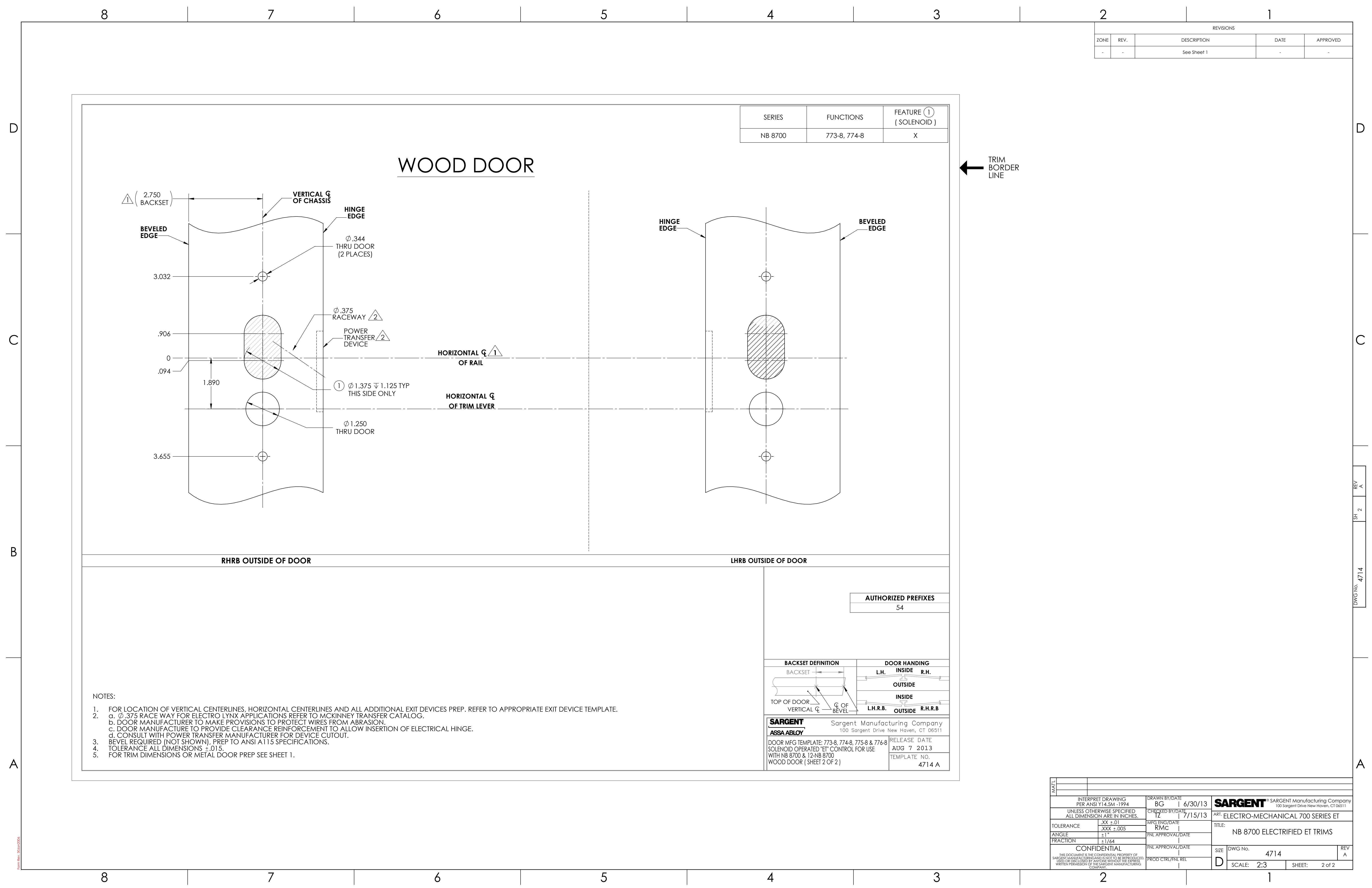

• 7. FOR WOOD DOOR PREP SEE SHEET 2.

ı	SARGENT	9	Sargent Manufacturing Company 100 Sargent Drive New Haven, CT 06511
ı	ASSA ABLOY
	DOOR MEG TEMPLATE: 54-7	00-8 LEVER MONITORING "FT". & 773-8.	RELEASE DATE 8/1/13

DOOR MFG TEMPLATE: 54-700-8 LEVER MONITORING "ET", & 773-8, 774-8, 775-8 & 776-8 SOLENOID OPERATED "ET" CONTROL FOR USE WITH NB 8700 & 12-NB 8700 METAL DOOR (SHEET 1 OF 2)

TEMPLATE NO. 4714
