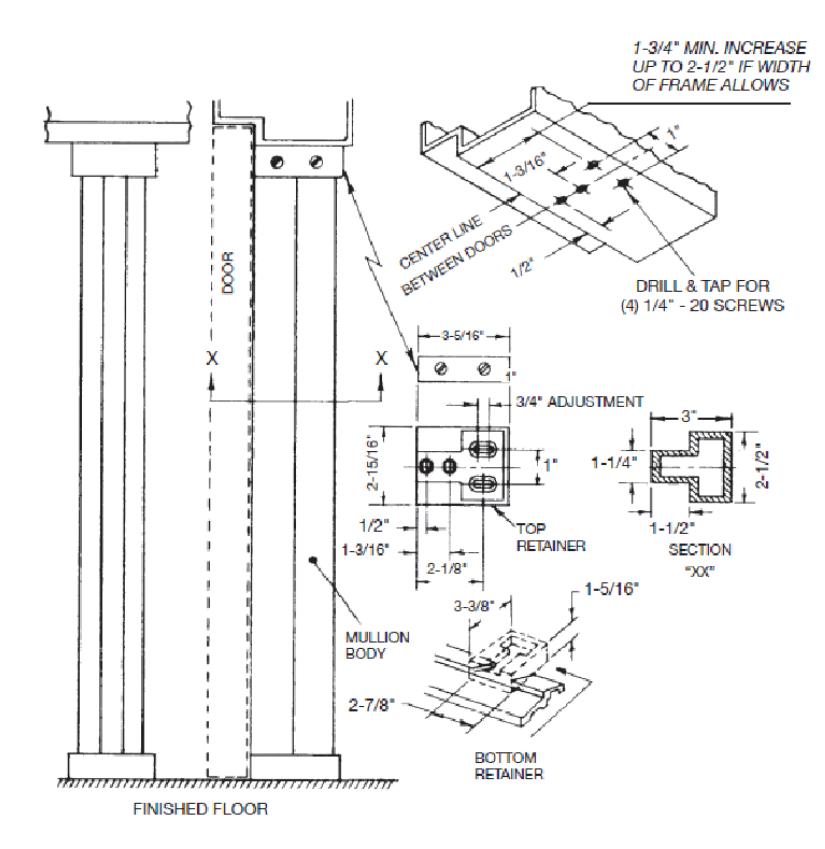

Template Metal Frame for Mullion 980 & L980

OMIT THIS HOLE IF "A" IS DRILL & TAP FOR LESS THAN 1-3/8" 507 ADAPTOR IF "A" IS 1-1/4" TO 2" WIDE, USE THIS APPLICATION

FRACTIONAL DIM. TOL. ± 1/64

SARGENT

ASSA ABLOY

ASSA ABLOY, the global leader in door opening solutions

Copyright © 2012, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

METAL FRAME TEMPLATE FOR MULLION NO. 980 & L980

RELEASE DATE SEP 25, 2012

TEMP. NO. 4006E
