Template Alarm Lock DL1200ET DL1300ET PDL1300ET for DCI 1200 1300

IMPORTANT

Templates must be printed without size modifications and verified for dimensional accuracy.

• • Before printing, select the printing options necessary to ensure that copies are produced without size adjustments.
• • After printing, measure the dimensions indicated on the template to ensure correct scale.

345 Bayview Avenue Amityville, New York 11701 For Sales and Repairs 1-800-ALA-LOCK For Technical Service 1-800-645-9440 Publicly traded on NASDAQ Symbol: NSSC

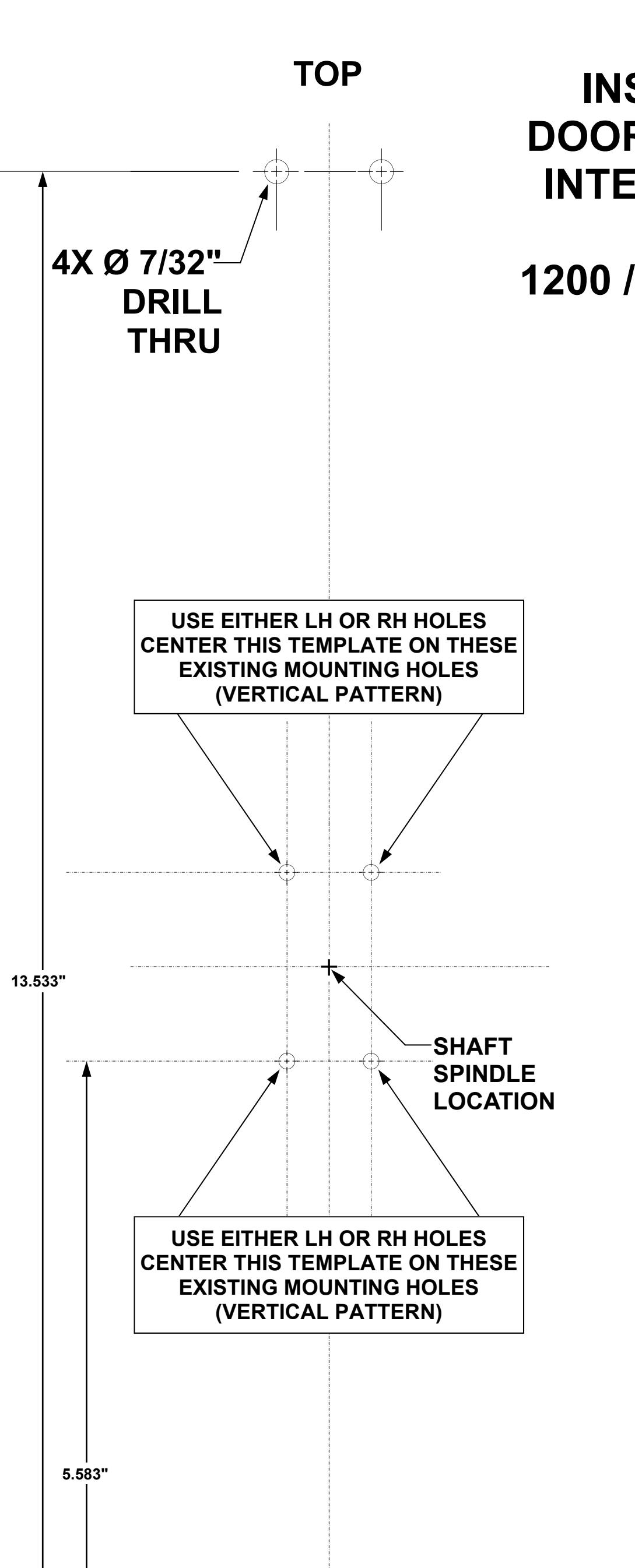

INSTALLATION TEMPLATE DL1200ET DL1300ET PDL1300ET

4X.468"

2X.936"

USE TO INSTALL ON: DOOR CONTROLS INTERNATIONAL (DCI) 1200 / 1300 SERIES

IMPORTANT

ALWAYS SELECT PRINTING OPTIONS TO ENSURE THAT COPIES OF TEMPLATES ARE PRODUCED WITHOUT SIZE ADJUSTMENTS.

AFTER PRINTING, VERIFY THE DIMENSIONS OF THIS BOX ARE 2.000 X 2.000 INCHES ± 0.010.
