Template 1331 JPS, JPSH, JCPS or JCPSH & 125JV Reinforcing Bracket
Open the original PDF document
View PDF
SARGENT
ASSA ABLOY
| Door Opening | Dim A | Dim B |
|---|---|---|
| 85° | 5-1/2 (139.7) | 11-0 (279.4) |
| 90° | 4-3/4 (120.7) | 10-1/4 (260.4) |
| 95° | 4-0 (101.6) | 9-1/2 (241.3) |
| 100° | 3-3/8 (85.7) | 8-7/8 (225.4) |
| 105° | 2-3/4 (70) | 8-1/4 (209.6) |
| 110° | 2-1/8 (54) | 7-5/8 (193.7) |
Do not scale drawing.
Drill Sizes
- Left hand door shown, right hand opposite.
- Dimensions are in inches / (mm)
- Hollow metal door require channel or box type reinforcement when through bolt mount is specified.
- Sex bolts required for wood or plastic faced fire door mounting.
- Minimum thickness recommended for reinforcements in hollow metal doors and frames: .146" (2.66mm) unless otherwise specified.
- Arm with Hold Open function is NOT permitted on fire door.
- Maximum width hinge for this template is 5"
SARGENT ® Manufacturing Company

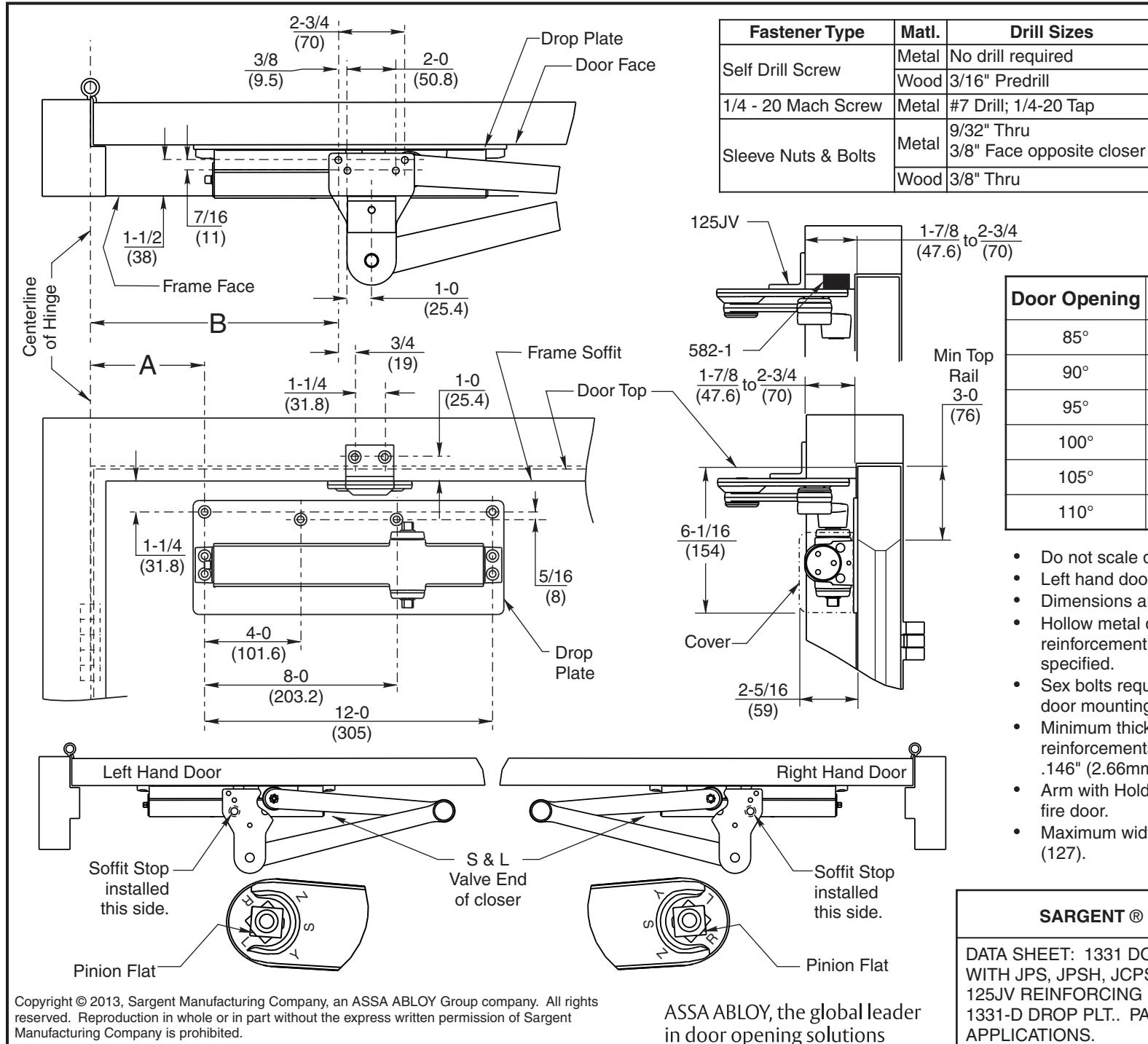

DATA SHEET: 1331 DOOR CLOSER WITH JPS, JPSH, JCPS, OR JCPSH & 125JV REINFORCING BRACKET WITH 1331-D DROP PLT.. PARALLEL ARM APPLICATIONS.
RELEASE DATE: 8/20/2013
TEMPLATE NO.
A8180A
