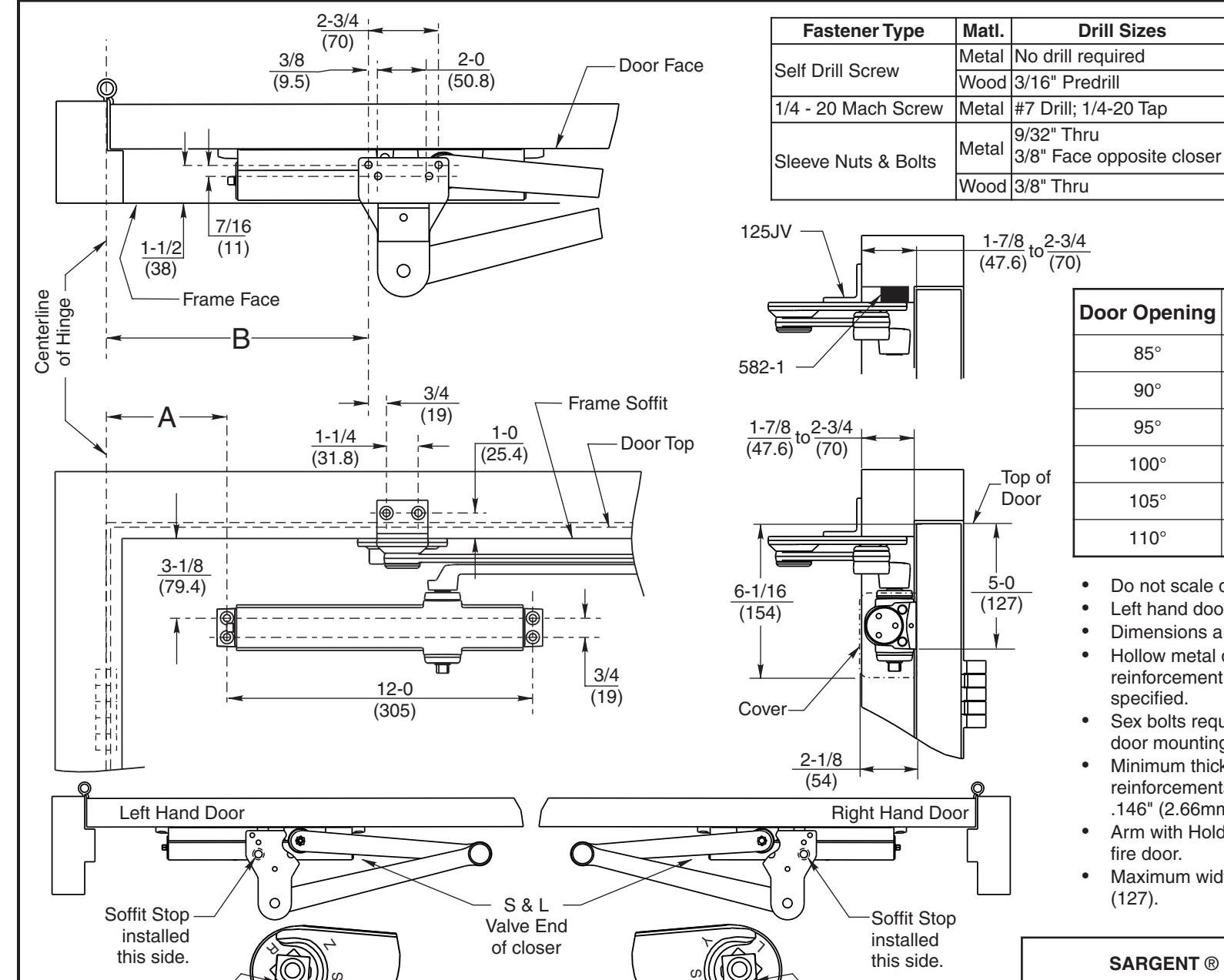

Template 1331 JPS, JPSH, JCPS, JCPSH & 125JV with Reinforcing Bracket
Open the original PDF document
View PDF
SARGENT
ASSA ABLOY
| Door Opening | Dim A | Dim B |
|---|---|---|
| 85° | 5-1/2 (139.7) | 11-0 (279.4) |
| 90° | 4-3/4 (120.7) | 10-1/4 (260.4) |
| 95° | 4-0 (101.6) | 9-1/2 (241.3) |
| 100° | 3-3/8 (85.7) | 8-7/8 (225.4) |
| 105° | 2-3/4 (70) | 8-1/4 (209.6) |
| 110° | 2-1/8 (54) | 7-5/8 (193.7) |
Do not scale drawing.
Drill Sizes
- Left hand door shown, right hand opposite.
- Dimensions are in inches / (mm)
- Hollow metal door require channel or box type reinforcement when through bolt mount is specified.
- Sex bolts required for wood or plastic faced fire door mounting.
- Minimum thickness recommended for reinforcements in hollow metal doors and frames: .146" (2.66mm) unless otherwise specified.
- Arm with Hold Open function is NOT permitted on fire door.
- Maximum width hinge for this template is 5"
SARGENT ® Manufacturing Company
DATA SHEET: 1331 DOOR CLOSER WITH JPS, JPSH, JCPS, OR JCPSH & 125JV REINFORCING BRACKET. PARALLEL ARM APPLICATIONS.
RELEASE DATE: 8/20/2013
TEMPLATE NO.
A8167A
Copyright © 2013, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
Pinion Flat
ASSA ABLOY, the global leader in door opening solutions
Pinion Flat
