Template 1331 JP9 Arm Applications
Open the original PDF document
View PDF
(11) CL Centerline of Hinge or Pivot

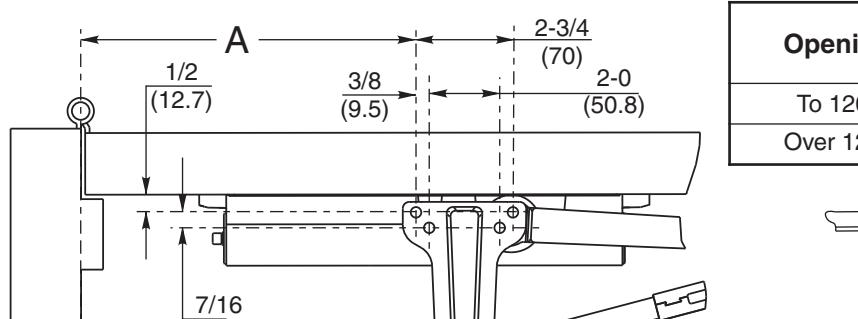

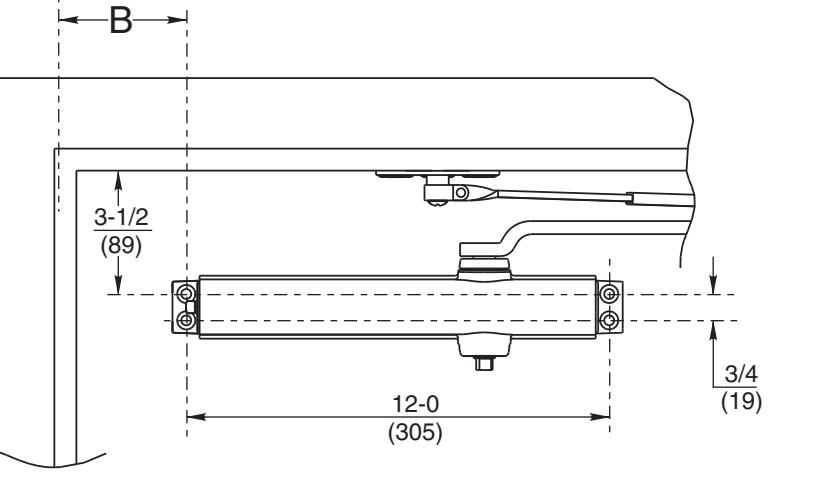

| Dimension "A" | Dimension "B" | ||
|---|---|---|---|
| Opening | Inches (mm) | ||
| To 120° | 9-1/2 (241.3) | 3-3/4 (95.3) | |
| Over 120° | 7-0 (177.8) | 1-1/4 (31.8) | |
NOTE:These installation instructions to be used for product manufactured on or after Nov. 1, 2013. Date Code: KU Shipped with arm as shown.
- Ÿ Do not scale drawing.
- Ÿ Left hand door shown, right hand opposite.
- Ÿ Dimensions are in inches / (mm)
- Ÿ Hollow metal door require channel or box type reinforcement when through bolt mount is specified.
- Ÿ Sex bolts required for wood or plastic faced fire door mounting.
- Ÿ Minimum thickness recommended for reinforcements in hollow metal doors and frames: .146" (2.66mm) unless otherwise specified
- Ÿ Maximum width hinge for this template is 5" (127).

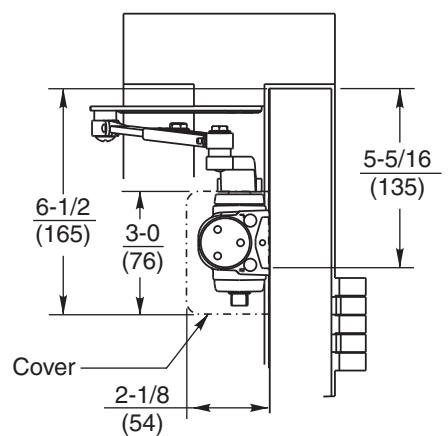

| Left Hand Door | Right Hand Door |
|---|---|
|
S & L
Valve End |
|
|
of closer
R Z S Pinion Y L Flat |
Pinion |
| Flat |
| Copyright © 2013, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights | |||
|---|---|---|---|
| reserved. Reproduction in whole or in part without the express written permission of Sargent | |||
| Manufacturing Company is prohibited. | |||
| Fastener Type | Matl. | Drill Sizes |
|---|---|---|
| Self Drill Screw | Metal | No drill required |
| Wood | 3/16" Predrill | |
| 1/4 - 20 Mach Screw | Metal | #7 Drill; 1/4-20 Tap |
| Sleeve Nuts & Bolts | Metal |
9/32" Thru
3/8" Face opposite closer |
| Wood | 3/8" Thru |
SARGENT ® Manufacturing Company
DATA SHEET: 1331 DOOR CLOSER WITH JP9 ARM. PARALLEL ARM APPLICATION
RELEASE DATE: 8/20/2013
TEMPLATE NO.
A8172A
