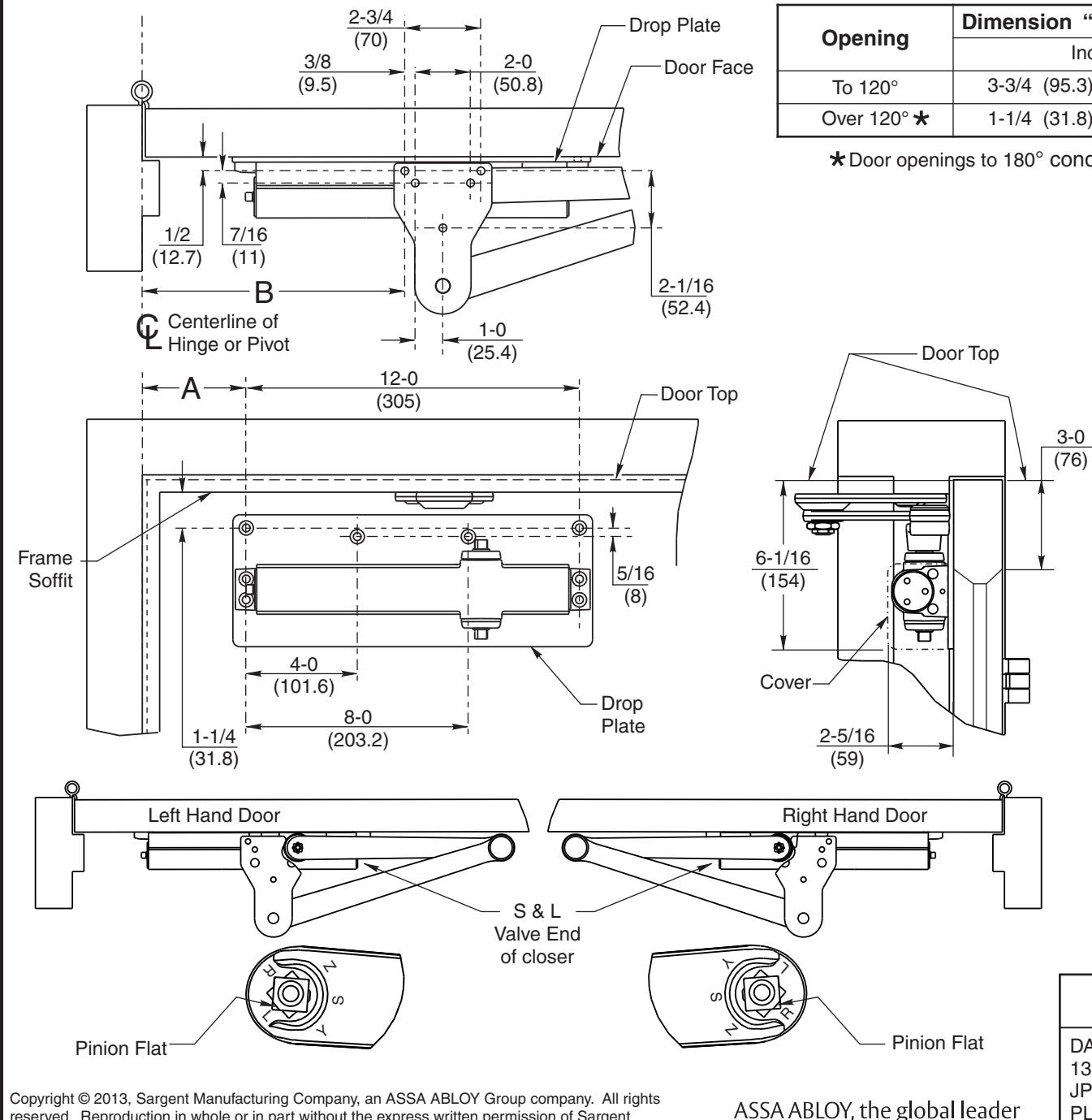

Template 1331 JP10 or JPH10 Arm with Drop Plate
Open the original PDF document
View PDF
reserved. Reproduction in whole or in part without the express written permission of Sargent
Manufacturing Company is prohibited.
Dimension "A" Dimension "B" Inches (mm) 3-3/4 (95.3) 9-1/2 (241.3) 1-1/4 (31.8) 7-0 (177.8)
ASSA ABLOY
SARGENT
★ Door openings to 180° conditions permitting.
in door opening solutions
| Fastener Type | Matl. | Drill Sizes |
|---|---|---|
| Metal | No drill required | |
| Wood | 3/16" Predrill | |
| 1/4 - 20 Mach Screw | Metal | #7 Drill; 1/4-20 Tap |
| Sleeve Nuts & Bolts | Metal |
9/32" Thru
3/8" Face opposite closer |
| Wood | 3/8" Thru |
Min. Top Rail
- Do not scale drawing.
- Left hand door shown, right hand opposite.
- Dimensions are in inches / (mm)
- Hollow metal door require channel or box type reinforcement when through bolt mount is specified.
- Sex bolts required for wood or plastic faced fire door mounting.
- Minimum thickness recommended for reinforcements in hollow metal doors and frames: .146" (2.66mm) unless otherwise specified.
- Arm with Hold Open function is NOT permitted on fire door.
- Maximum width hinge for this template is 5" (127).
SARGENT ® Manufacturing Company
DATA SHEET: 1331 DOOR CLOSER WITH JP10 OR JPH10 ARM WITH 1331-D DROP PLATE. PARALLEL ARM APPLICATIONS.
RELEASE DATE: 8/20/2013
TEMPLATE NO.
A8176A
