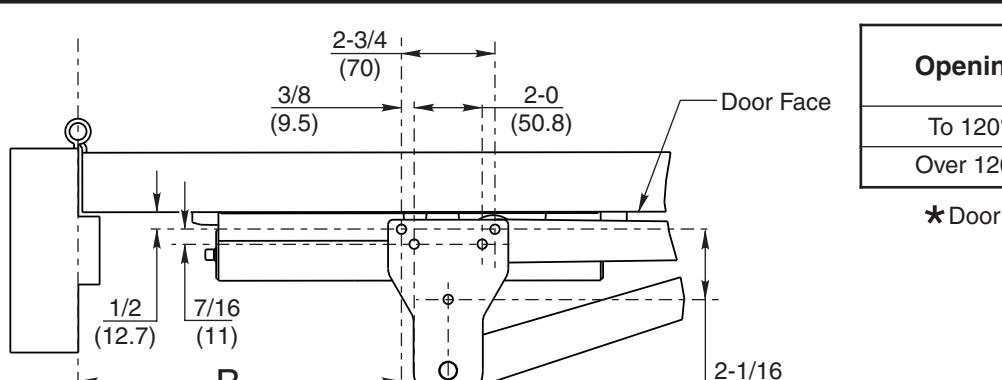

DATA SHEET: 1331 DOOR CLOSER WITH JP10 OR JPH10 ARM. PARALLEL ARM APPLICATIONS.
RELEASE DATE: 8/20/2013
TEMPLATE NO.
A8163A
