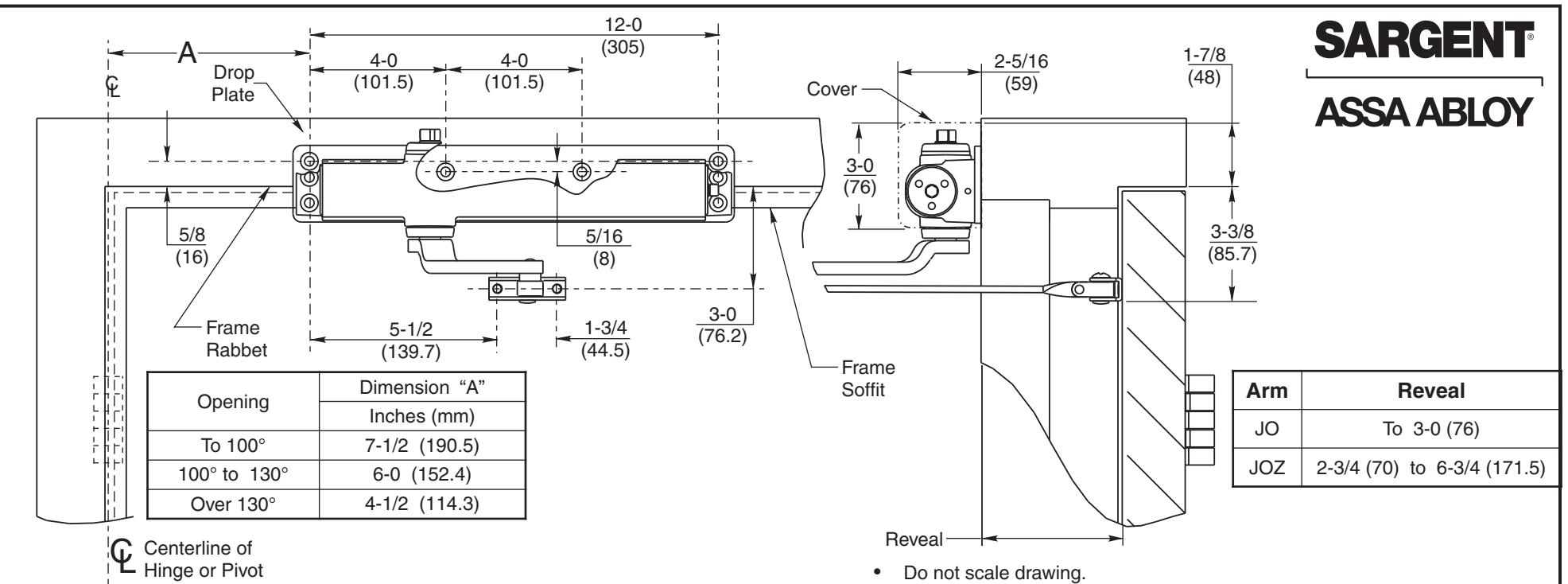

Template 1331 JO, JOZ Arm Applications and Top Jamb
Open the original PDF document
View PDF
-
Ÿ Left hand door shown, right hand opposite.
- Ÿ Dimensions are in inches / (mm)
- Ÿ Hollow metal door require channel or box type reinforcement when through bolt mount is specified.
- Ÿ Sex bolts required for wood or plastic faced fire door mounting.
- Ÿ Minimum thickness recommended for reinforcements in hollow metal doors and frames: .146" (2.66mm) unless otherwise specified.
- Ÿ Maximum width hinge for this template is 5" (127).
|
Z
S Pinion Y Flat R 90° L |
These views are looking
Pinion up at closer from floor Flat level. 90° |
|---|---|
| S & L Valves | S & L Valves |
| Left Hand Door | Right Hand Door |
Copyright © 2013, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
NOTE:These installation instructions to be used for product manufactured on or after Nov. 1, 2013. Date Code: KU Shipped with arm as shown.
Mfg. Date: KU
KU
| Fastener Type | Matl. | Drill Sizes | |
|---|---|---|---|
| Self Drill Screw | Metal | No drill required | |
| Wood | 3/16" Predrill | ||
| 1/4 - 20 Mach Screw | Metal | #7 Drill; 1/4-20 Tap | |
| Sleeve Nuts & Bolts | Metal |
9/32" Thru
3/8" Face opposite closer |
|
| Wood | 3/8" Thru |
SARGENT ® Manufacturing Company
DATA SHEET: WITH JO, JOZ ARM AND 1331-B DROP PLATE. TOP JAMB ARM FOR STD OR DEEP REVEAL LOW CEILING APPLICATIONS.. 1331 DOOR CLOSER RELEASE DATE:
8/20/2013
TEMPLATE NO. A8178A
