Template 1331 JO Arm Regular Arm Applications
Open the original PDF document
View PDF

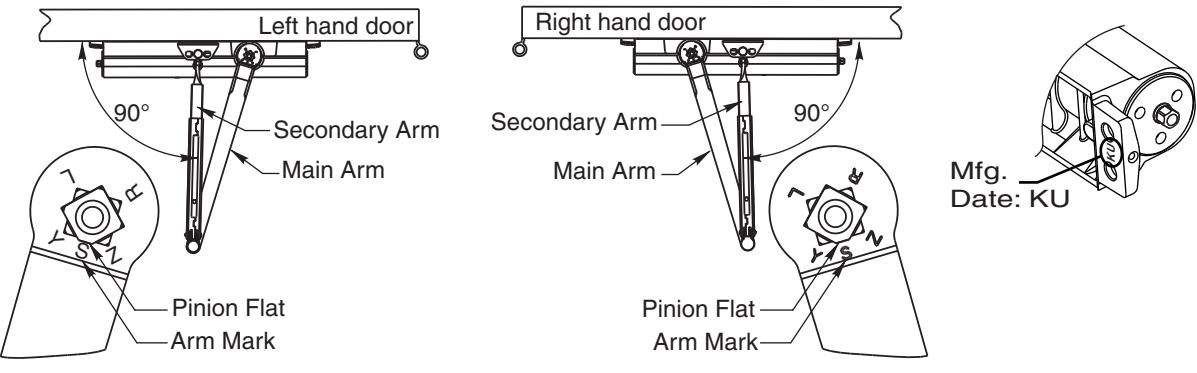

- Right hand door shown, left hand opposite.

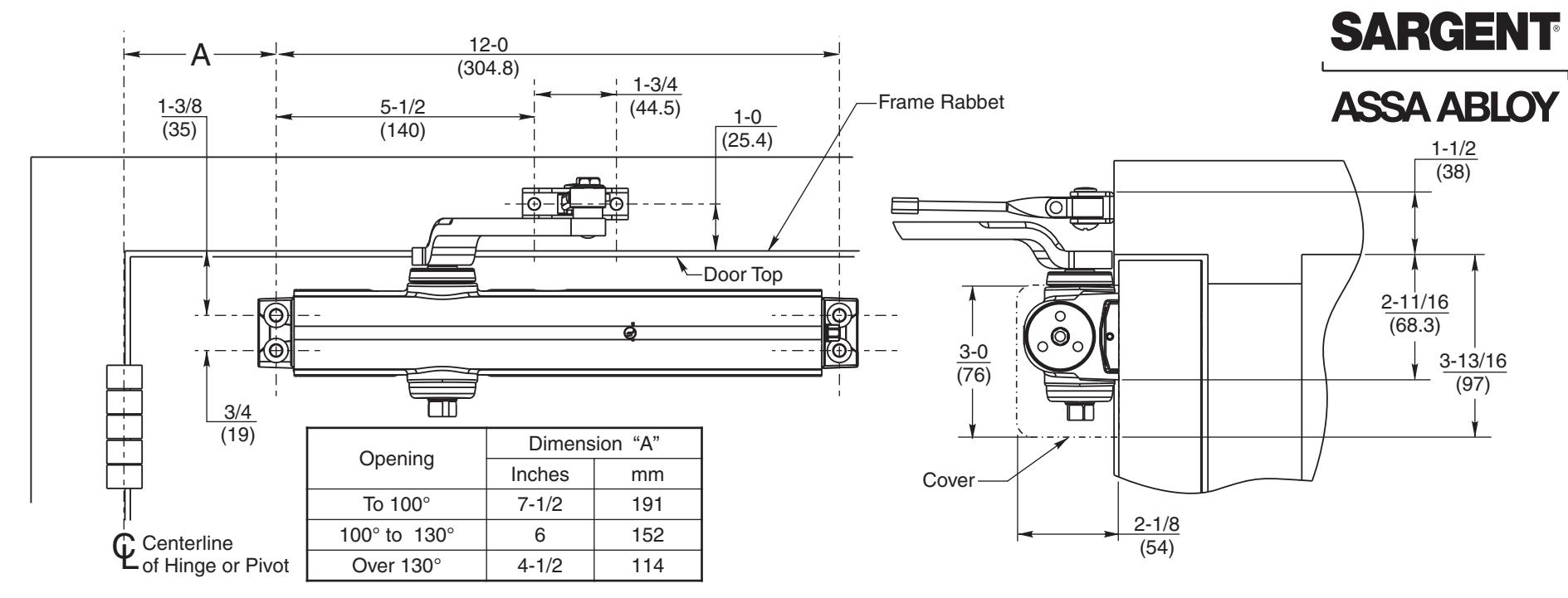

- Dimensions are in inches / (mm)
- Hollow metal door require channel or box type reinforcement when through bolt mount is specified.
- Sex bolts required for wood or plastic faced fire door mounting.
- Minimum thickness recommended for reinforcements in hollow metal doors and frames: .146" (2.66mm) unless otherwise specified.
ASSA ABLOY, the global leader in door opening solutions
| Fastener Type | Matl. | Drill Sizes |
|---|---|---|
| Self Drill Screw | Metal | No drill required |
| Wood | 3/16" Predrill | |
| 1/4 - 20 Mach Screw | Metal | #7 Drill; 1/4-20 Tap |
| Sleeve Nuts & Bolts | Metal |
9/32" Thru
3/8" Face opposite closer |
| Wood | 3/8" Thru |
SARGENT ® Manufacturing Company
DATA SHEET: 1331 DOOR CLOSER WITH JO ARM. REGULAR ARM APPLICATIONS.
RELEASE DATE: 8/20/2013
TEMPLATE NO.
A8170A
