Template 1331 JH Regular Arm Applications
Open the original PDF document
View PDF

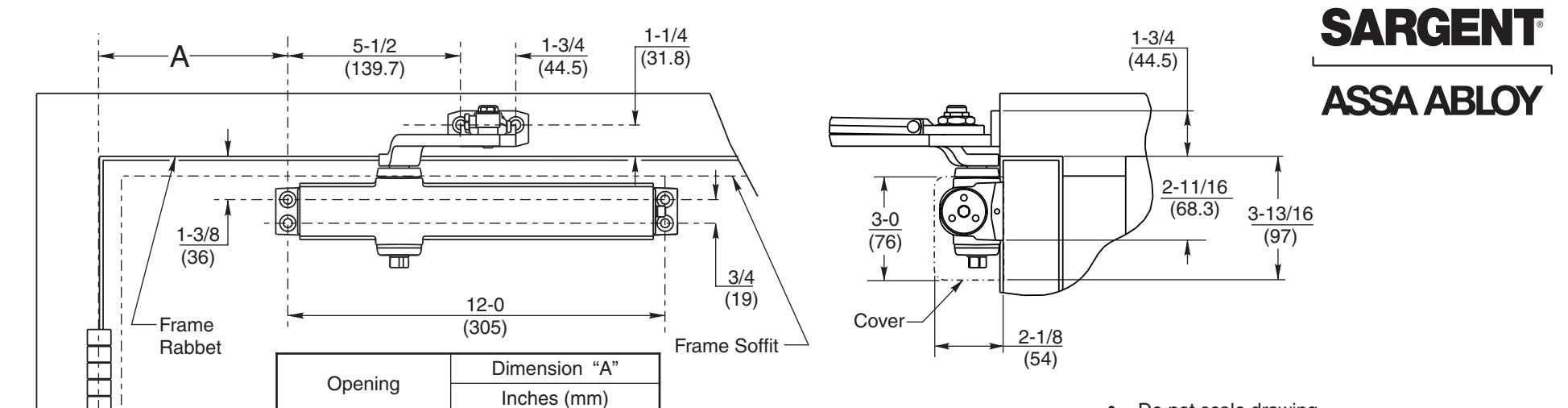

7-1/2 (190.5)
6-0 (152.4)
4-1/2 (114.3)

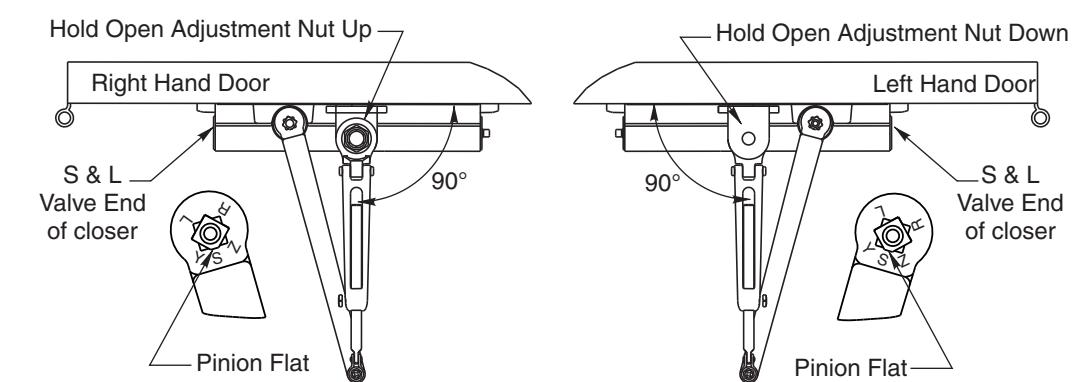

NOTE: These installation instructions to be used for product manufactured on or after Nov. 1, 2013. Date Code: KU Shipped with arm as shown.
Centerline of Hinge or Pivot
To 100°
100° to 130°
Over 130°
Date: Kl
Copyright © 2013, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
ASSA ABLOY, the global leader in door opening solutions
- Do not scale drawing.
- Right hand door shown, left hand opposite.
- Dimensions are in inches / (mm)
- Hollow metal door require channel or box type reinforcement when through bolt mount is specified.
- Sex bolts required for wood or plastic faced fire door mounting.
- Minimum thickness recommended for reinforcements in hollow metal doors and frames: .146" (2.66mm) unless otherwise specified.
- Arm with Hold Open function is NOT permitted on fire door.
- Maximum width hinge for this template is 5" (127).
| Fastener Type | Matl. | Drill Sizes |
|---|---|---|
| Self Drill Screw | Metal | No drill required |
| Wood | 3/16" Predrill | |
| 1/4 - 20 Mach Screw | Metal | #7 Drill; 1/4-20 Tap |
| Sleeve Nuts & Bolts | Metal |
9/32" Thru
3/8" Face opposite closer |
| Wood | 3/8" Thru |
SARGENT ® Manufacturing Company 100 Sargent Drive New Haven, CT 06511
DATA SHEET: 1331 DOOR CLOSER WITH JH ARM REGULAR ARM APPLICATIONS.
RELEASE DATE: 8/20/2013 TEMPLATE NO.
A8171A
