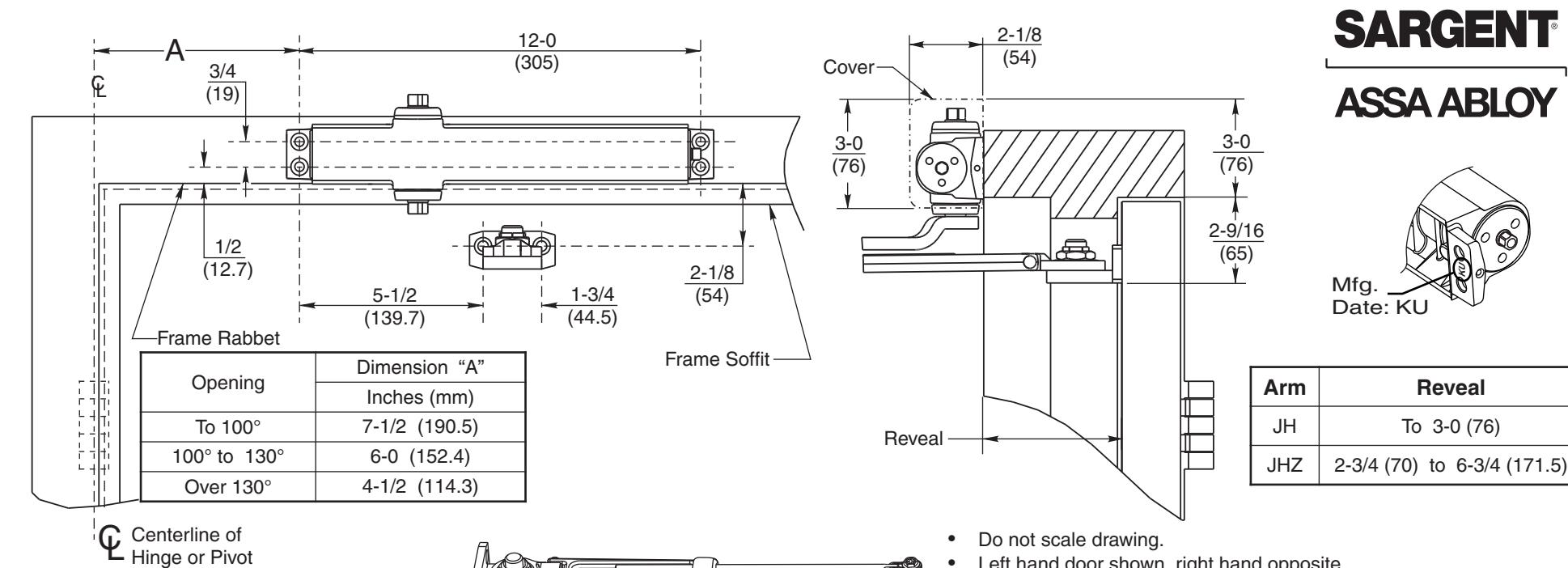

Template 1331 JH, JHZ Arm with Top Jamb for STD Deep Reveal
Open the original PDF document
View PDF
NOTE:These installation instructions to be used for product manufactured on or after Nov. 1, 2013. Date Code: KU Shipped with arm as shown.
Hinge or Pivot
Left Hand Door Right Hand Door Pinion Flat Pinion Flat S & L Valve End of closer Hold Open Adjustment Nut Up Hold Open Adjustment Nut Down R L ZY S
Copyright © 2013, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
- Ÿ Do not scale drawing.
- Ÿ Left hand door shown, right hand opposite.
- Ÿ Dimensions are in inches / (mm)
- Ÿ Hollow metal door require channel or box type reinforcement when through bolt mount is specified.
- Ÿ Sex bolts required for wood or plastic faced fire door mounting.
- Ÿ Minimum thickness recommended for reinforcements in hollow metal doors and frames: .146" (2.66mm) unless otherwise specified.
- Ÿ Arm with Hold Open function is NOT permitted on fire door.
- Ÿ Maximum width hinge for this template is 5" (127).
| Fastener Type | Matl. | Drill Sizes |
|---|---|---|
| Self Drill Screw | Metal | No drill required |
| Wood | 3/16" Predrill | |
| 1/4 - 20 Mach Screw | Metal | #7 Drill; 1/4-20 Tap |
| Sleeve Nuts & Bolts | Metal |
9/32" Thru
3/8" Face opposite closer |
| Wood | 3/8" Thru |
SARGENT ® Manufacturing Company
DATA SHEET: 1331 DOOR CLOSER WITH JH, JHZ ARM. TOP JAMB ARM FOR STD AND DEEP REVEAL APPLICATIONS..
RELEASE DATE: TEMPLATE NO. 8/20/2013 A8166A
