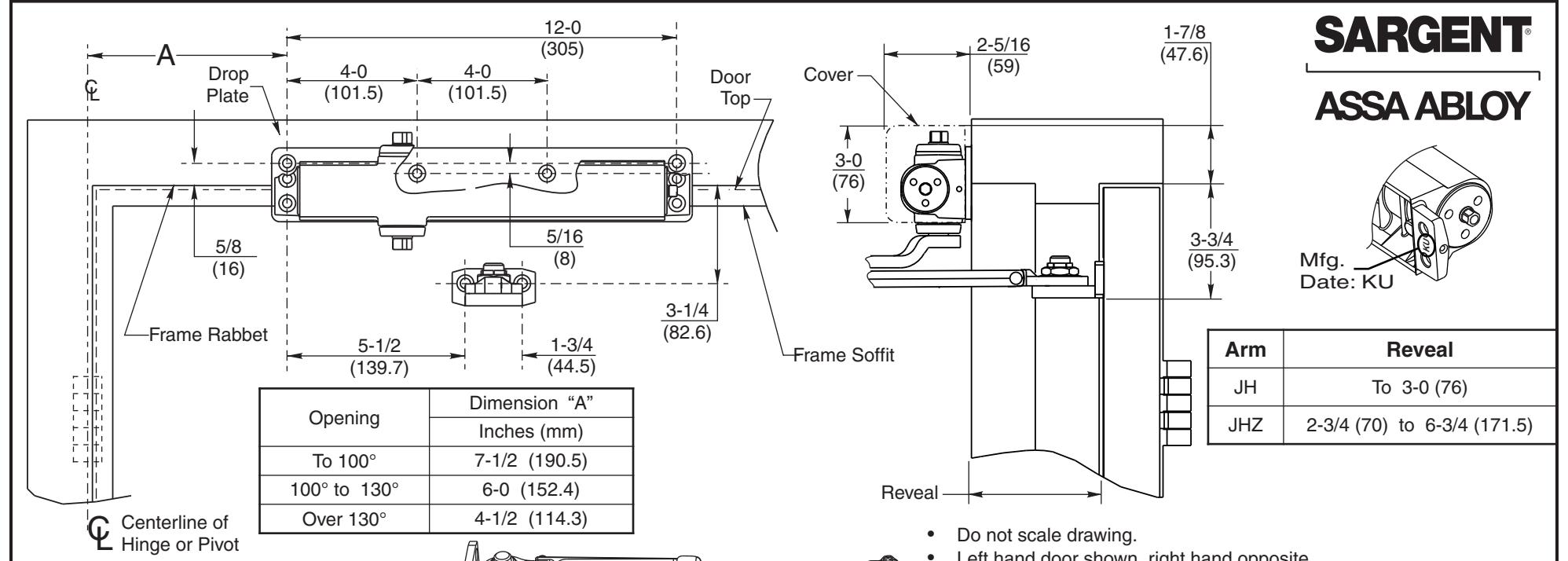

Template 1331 JH, JHZ Arm Applications and Top Jamb
Open the original PDF document
View PDF
in door opening solutions
NOTE: These installation instructions to be used for product manufactured on or after Nov. 1, 2013. Date Code: KU Shipped with arm as shown.
reserved. Reproduction in whole or in part without the express written permission of Sargent
Manufacturing Company is prohibited.

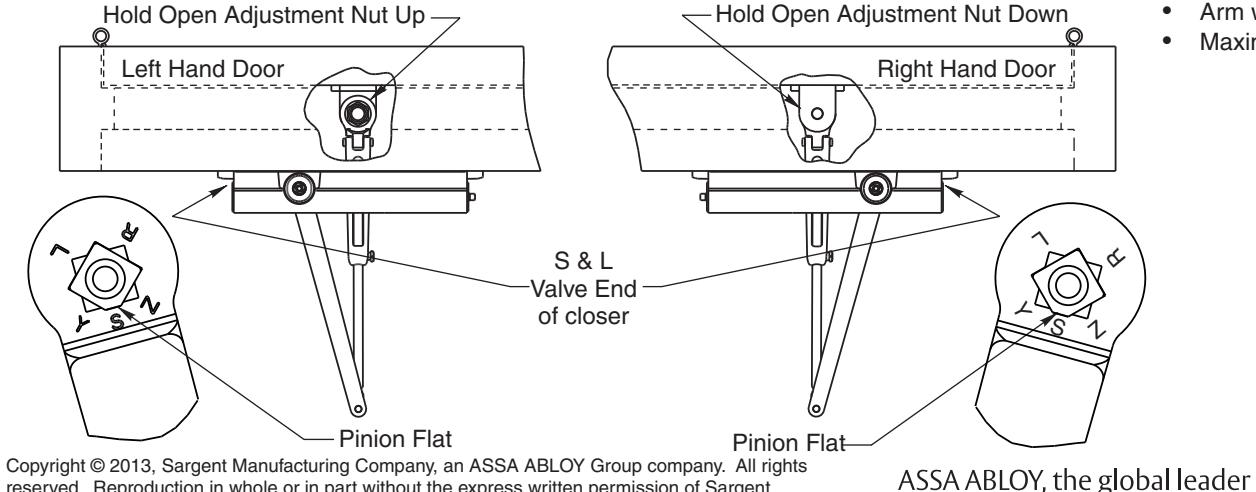

- Left hand door shown, right hand opposite.
- Dimensions are in inches / (mm)
- Hollow metal door require channel or box type reinforcement when through bolt mount is specified.
- Sex bolts required for wood or plastic faced fire door mounting.
- Minimum thickness recommended for reinforcements in hollow metal doors and frames: .146" (2.66mm) unless otherwise specified.
- Arm with Hold Open function is NOT permitted on fire door.
- Maximum width hinge for this template is 5" (127).
| Fastener Type | Matl. | Drill Sizes |
|---|---|---|
| ISAlf Drill Scrow | Metal | No drill required |
| Wood | 3/16" Predrill | |
| 1/4 - 20 Mach Screw | Metal | #7 Drill; 1/4-20 Tap |
| Sleeve Nuts & Bolts | Metal |
9/32" Thru
3/8" Face opposite closer |
| Wood | 3/8" Thru |
SARGENT ® Manufacturing Company
DATA SHEET: 1331 DOOR CLOSER WITH JH. JHZ ARM AND 1331-B DROP PLATE. TOP JAMB ARM FOR STD AND DEEP REVEAL LOW CEILING APPLICATIONS...
RELEASE DATE: 8/20/2013 TEMPLATE NO.
A8179A
