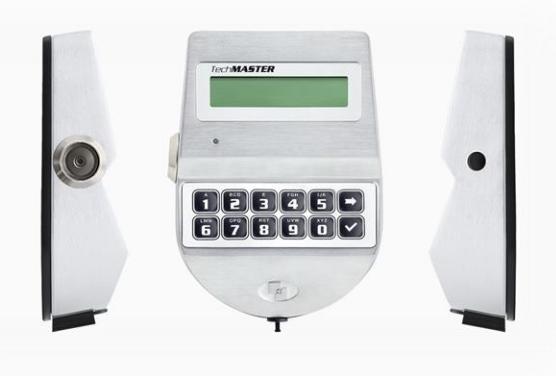

TechMaster

User instructions

Default codes

Master 1 2 3 4 5 6 7 8

Manager 0 1 - 1 2 3 4 5 6 + Optional Dallas key User 2 0 2 - 0 2 0 2 0 2 + Optional Dallas key User 3 0 3 - 0 3 0 3 0 3 + Optional Dallas key User x x x – x x x x x x + Optional Dallas key

Dallas key

In the event that the user is composed of "code + Dallas key", before or after entering the code, the Dallas key must be placed on the appropriate Dallas key reader.

Override users

Override users open without waiting the time delay. In the default programming they are set in dual code opening but, upon request, the single opening mode can also be set.

Silent alarm

It is activated by increasing or decreasing the last digit by one number when entering the opening code.

Penalty

After four attempts to enter an incorrect code, the lock starts a 4-minute delay period. Each attempt to enter the code within the 4 minutes delay period restarts the count.

Low battery warning

A message on the display and a long beep during opening indicates a low battery level. Replace immediately the low battery with a new Alkaline battery.

Sound signals

A double beep normally indicates a correct operation. A long beep indicates an incorrect operation and the end of the operation itself.

Reccomendations

Do not use easily identifiable codes such as 123456, dates of birth or other personal information.

Opening (It is recommended to change the factory code before use and to safely store the new code)

Press any key to turn on the device. The display shows the message: USER CODE

Press to open with Manager code or go to the next step.

Enter the opening code. The display shows the time delay counting if programmed. TIME DELAY

At the end of the time delay, the display shows the counting of the open window. OPEN WINDOW

Enter the opening code. The display shows the message: OPEN

Open the safe door within 4 seconds.

Dual code opening (It is recommended to change the factory code before use and to safely store the new code)

Press any key to turn on the device. The display shows the message: USER CODE

Press to open with Manager code or go to the next step.

Enter the opening code. The display shows the time delay counting if programmed. TIME DELAY

At the end of the time delay, the display shows the counting of the open window. OPEN WINDOW

Enter the 1° opening code. The display shows the message: 2° USER CODE

Enter the 2° opening code. The display shows the message: OPEN WINDOW

Open the safe door within 4 seconds.

X X – X X X X X X
MANAGER X X X X X X
00:59
00:01

X X – X X X X X X
MANAGER X X X X X X
00:59
00:01
X X – X X X X X X

User instructions

TechMaster

Change code ( Safely store the new code and perform various opening / closing tests before closing the safe door ) To be performed with the door open!
Press and hold . The display shows the message:	OLD CODE X X - X X X X X X
To change the Manager code press twice. The display shows the message:	CHANGE MANAGER CODE
Enter the old code. The display shows the message:	NEW CODE X X X X X X
Enter the new code. The display shows the message:	CONFIRM CODE X X X X X X
Confirm the new code.	OPERATION DONE
Perform various opening / closing tests before closing the safe door.
Users management
Press and then . The display shows the message:	MANAGER MENU X X X X X X
Enter the Manager code and scroll through the submenus with until Users management. Press to access.	USERS MANAGEMENT
Press to scroll the list or enter the user ID.	02 03 04 05 06  x _ _ 
"" installed user, "X" deleted user, "_" disabled user.
Overrides users can be installed only when the lock is open.
Press . If the user is not installed, the display shows the message:	02 INSTALL?
Press to confirm, or to disable/enable/delete and to confirm.
Membrane test
Press any key to turn on the device.
Press and hold the button . The display shows the message:	MEMBRANE TEST 1234567890 
Press in sequence the buttons shown in the display.	MEMBRANE TEST 1234567890 
A confirmation beep is given for each pushed key working properly.
A damaged key is indicated with a long beep. The display shows the message:	WRONG/FAULTY KEY
Change date and time
Press (or press and hold) . The display shows the message:	MASTER MENU X X X X X X X X
Enter the Master code. The display shows the message:	TIME AND DATE SETTINGS
Press . The display shows the date and time currently set:	12:00 WED 13 /02/2019
To modify, press . The display shows the message:	hh:mm DD/MM/YYYY
Enter time and date and press to confirm.

Further information

For the complete manual and further information on the product's features, please visit www.tecnosicurezza.it
