TRX-L Installation

TOWNSTEEL TRXL LIGATURE RESISTANT LOCK INSTRUCTIONS

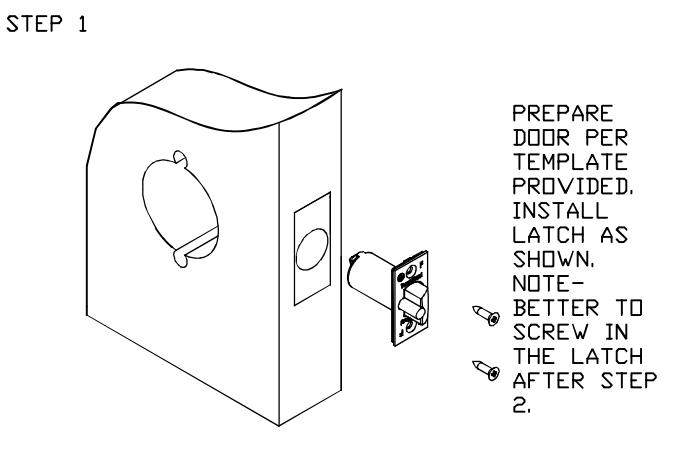

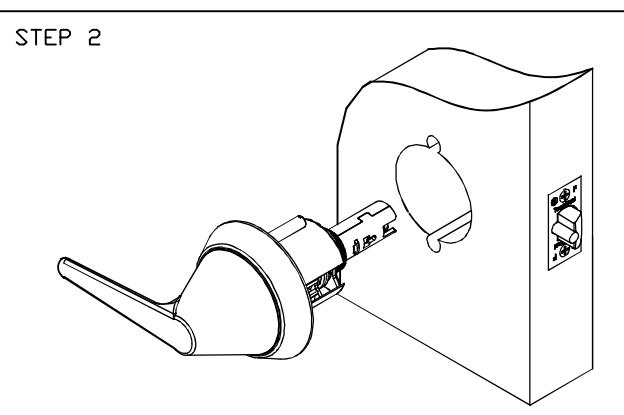

INSTALL INSIDE LOCK ASSEMBLY IN CUTOUT. LINE UP RETRACTOR ON LOCK BODY WITH LATCH (NOTE- EASIER TO DO THIS WITH THE LATCH LOOSE AND THEN SCREW IN THE LATCH AFTER THIS STEP)

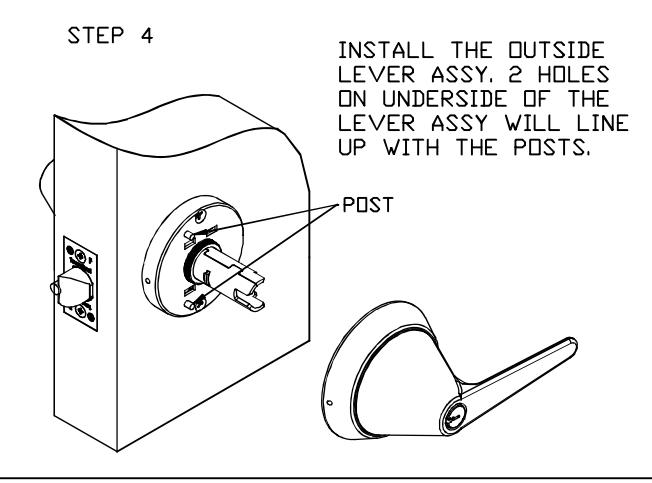

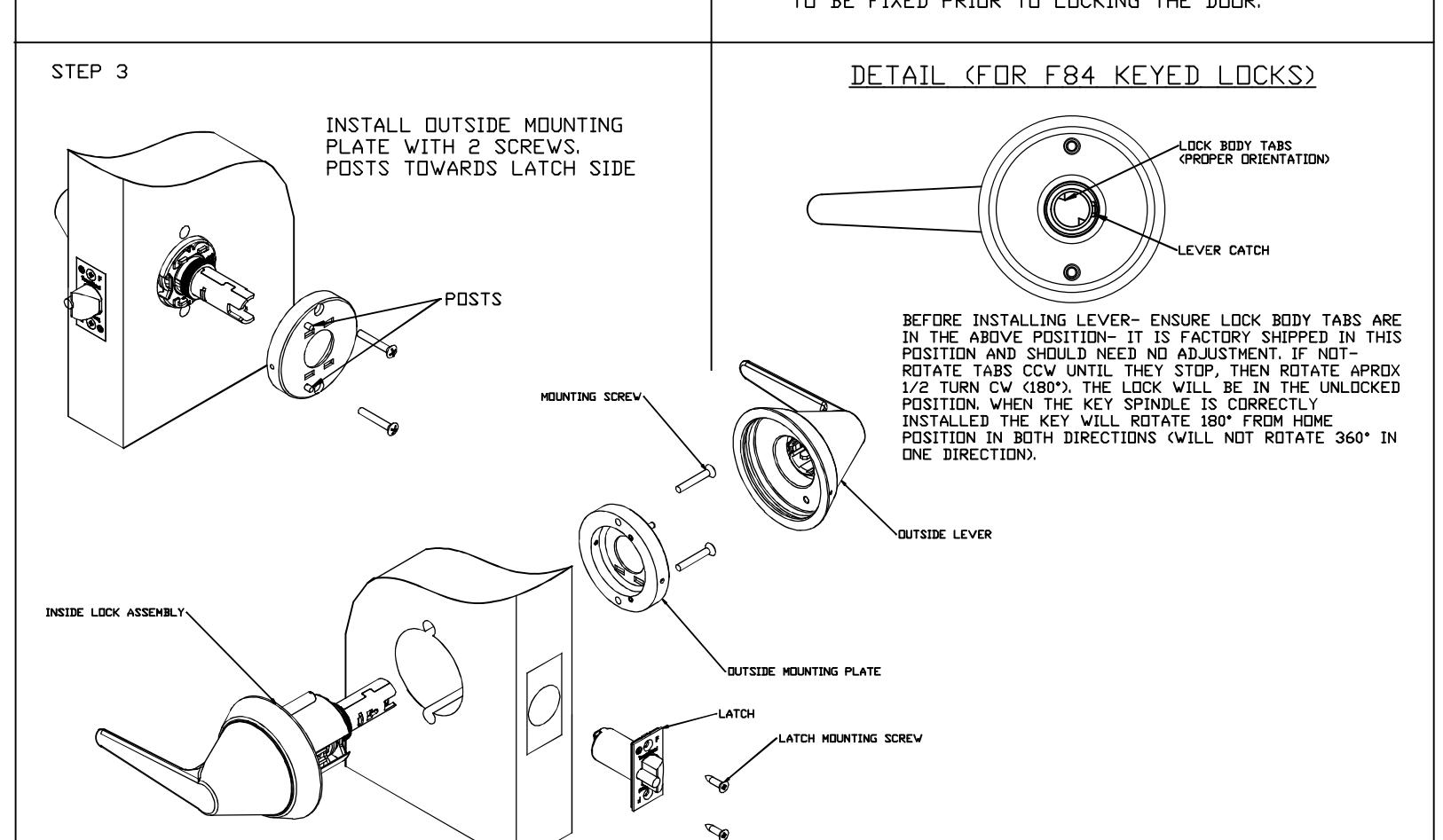

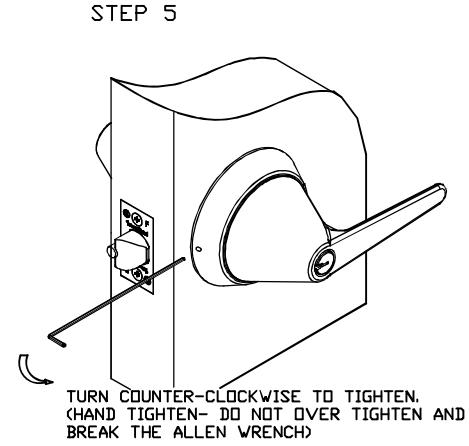

AFTER PLACING THE DUTSIDE LEVER ASSEMBLY ON THE OUTSIDE PLATE USE THE PROVIDED (54") ALLEN WRENCH (THROUGH THE SET SCREW HOLE, 1 ON EACH SIDE) AND SECURE THE OUTSIDE LEVER ASSEMBLY BY TURNING THE SET SCREWS COUNTER-CLOCKWISE (TO REMOVE ROTATE CLOCKWISE).

10-29-14

NOTE- CHECK LOCK OPERATION PRIOR TO LOCKING THE DOOR. IF THERE ARE ANY ISSUES THEY NEED TO BE FIXED PRIOR TO LOCKING THE DOOR.
