ED2REXKIT-ED

I N S E R T I n s t r u c t i o n s

Field Installable Request To Exit Switch for Townsteel 1000 & LSDA 9200, USCAN 2100 Series Exit Devices.

C.

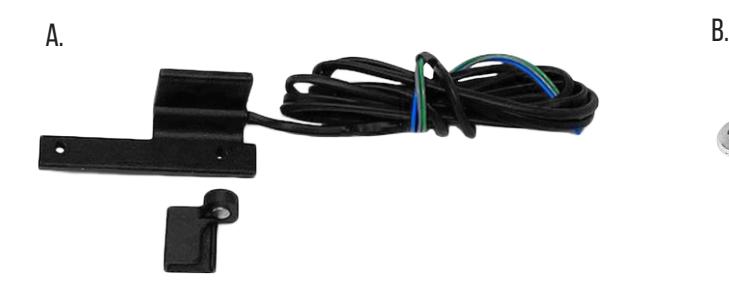

A. 60713 & 60714 - (x1) REX Switch Bracket B. 40076 - (x2) 6 x 32 3/16 Phillips Head Screw

Kit Includes Tools Required

Phillips Screwdriver

SPECIFICATIONS

• • SPDT Single Pole double throw
• • Switch Rating: .5A @24V

Wire Color Code

• • Green= Common (C)
• • Blue = Normally Open (NO)
• • Grey = Normally Closed (NC)

Scan QR Code to Watch Installation Video
