TEMPLATE ELECTRO-MECHANICAL EXIT DEVICE RAILS (NARROW)
Open the original PDF document
View PDF

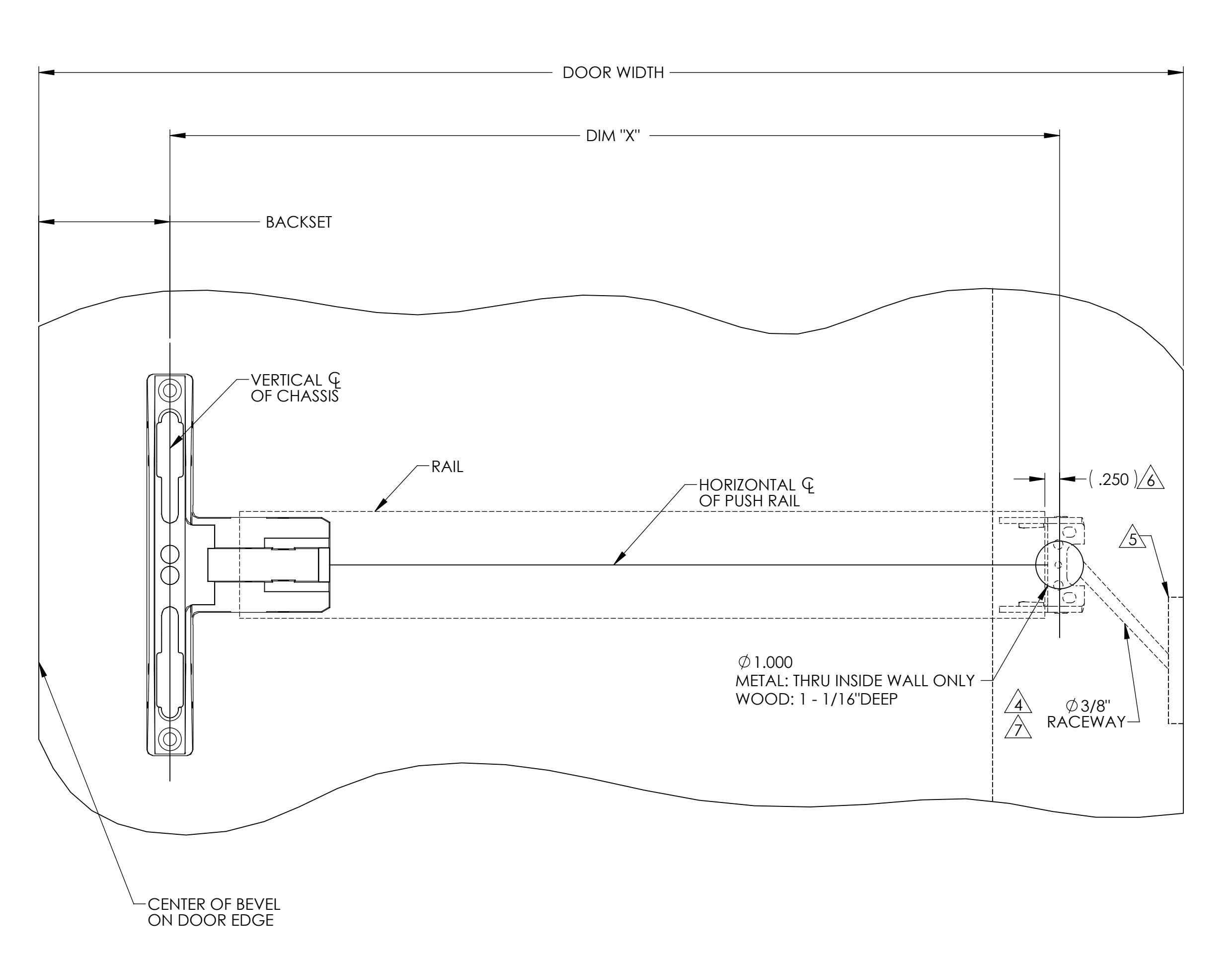

8400 CONCEALED VERTICAL ROD AND 8500 RIM: NARROW DESIGN ELECTROFIED EXIT DEVICE RAIL ON NARROW STILE TYPE DOOR CONSTRUCTION
DIMENSION "X" CROSS-REFERENCE CHART
| CHARI | |||
|---|---|---|---|
|
DOOR
WIDTH |
DIM "X" FOR
NARROW DESIGN CHASSIS |
||
| 48" | 45.365" | ||
| 47'' | 44.365" | ||
| 46'' | 43.365" | ||
| 45" | 42.365" | ||
| 44" | 41.365" | ||
| 43" | 40.365" | ||
| 42" | 39.365" | ||
| 41" | 38.365" | ||
| 40'' | 37.365" | ||
| 39" | 36.365" | ||
| 38" | 35.365" | ||
| 37" | 34.365" | ||
| 36" | 33.365" | ||
| 35" | 32.365" | ||
| 34" | 31.365" | ||
| 33" | 30.365" | ||
| 32" | 29.365" | ||
| 31" | 28.365" | ||
| 30" | 27.365" | ||
| 29" | 26.365" | ||
| 28" | 25.365" | ||
| 27" | 24.365" | ||
| 26" | 23.365" | ||
| 25" | 22.365" | ||
| 24" | 21.365" | ||
8300 MORTISE LOCK: NARROW DESIGN ELECTROFIED EXIT DEVICE RAIL ON WIDE STILE TYPE DOOR CONSTRUCTION.
DIMENSION "X" CROSS-REFERENCE CHART
| CHARI | ||
|---|---|---|
|
DOOR
WIDTH |
DIM "X" FOR
NARROW DESIGN CHASSIS |
|
| 48'' | 42.180" | |
| 47'' | 41.180" | |
| 46" | 40.180" | |
| 45" | 39.180" | |
| 44" | 38.180" | |
| 43" | 37.180" | |
| 42" | 36.180" | |
| 41" | 35.180" | |
| 40'' | 34.180" | |
| 39" | 33.180" | |
| 38" | 32.180" | |
| 37" | 31.180" | |
| 36" | 30.180" | |
| 35" | 29.180" | |
| 34" | 28.180" | |
| 33" | 27.180" | |
| 32" | 26.180" | |
| 31" | 25.180" | |
| 30" | 24.180" | |
| 29" | 23.180" | |
| 28'' | 22.180" | |
| 27'' | 21.180" | |
| 26" | 20.180" | |
| 25" | 19.180" | |
| 24" | 18.180" | |
| AUTHORIZED 80 SERIES EXIT DEVICE PREFIX TEMPLATE AND INSTUCTION SHEET | ||||
|---|---|---|---|---|
| DESCRIPTION | PREFIX |
INSTALLATION
INSTUCTIONS |
||
| LATCH MONITOR SWITCH | 53- | A7678 | ||
| SIGNAL SWITCH RAIL | 55- | A6808 | ||
| ELECTRIFIED LATCH RETRACTION | 56- | A7925 | ||
| DELAYED EGRESS | 57- | A7743 | ||
| ELECTRIC DOGGING | 58- | A6835 | ||
| ELECTROGUARD | 59- | A7690 | ||
| ALARMED | AL- | A7224 | ||
| BEACON | BT- | A7974 | ||
| ILLUMINATED TOUCHPAD | TL- | A7711 | ||
(C)
| 1. | IMPORTANT: FOR LOCATION OF VERTICAL AND HORIZONTAL , AND ADDITIONAL EXIT DEVICE |
|---|---|
| PREP. REFER TO APPROPRIATE EXIT DEVICE TEMPLATE. |
FOR ELECTROLYNX<sup>TM</sup> APPLICATIONS REFER TO THE McKINNEY TRANSFER DEVICE. HARNESS ROUTES MAY DIFFER BY DOOR, CONSULT DOOR MANUFACTURERS SPECS FOR ROUTES USED. 3/8" RACEWAY FOR ELECTROLYNX<sup>TM</sup> APPLICATIONS REFER TO MCKINNY TRANSFER DEVICE CATALOG. CONSULT WITH POWER TRANSFER DEVICE
NOTES:
(C)
(C)
(C)
(C)
MANUFACTURER AND DOOR MANUFACTURER FOR DOOR AND FRAME TEMPLATE DETAILS. FOR MODIFIED RAIL LENGTHS; POSITION HOLE .250" BEYOND END OF RAIL. DOOR MFG TO PROVIDE CLEARANCE IN REINFORCEMENT TO ALLOW INSERTION OF ELECTRICAL WIRES RUNNING BETWEEN RAIL AND ELECTRIC HINGE. MAKE PROVISIONS TO PROTECT WIRES FROM ABRASION.
| SARGENT | Sargent Manufacturing Company |
|---|---|
| ASSA ABLOY | 100 Sargent Drive New Haven, CT 06511 |
DOOR MANUFACTURERS TEMPLATE: ELECTRO - MECHANICAL EXIT DEVICE RAILS (NARROW DESIGN)
RELEASE DATE FEB 11, 2010
TEMPLATE NO.
4568
