TEMPLATE ELECTRO-MECHANICAL EXIT DEVICE RAIL (WIDE)

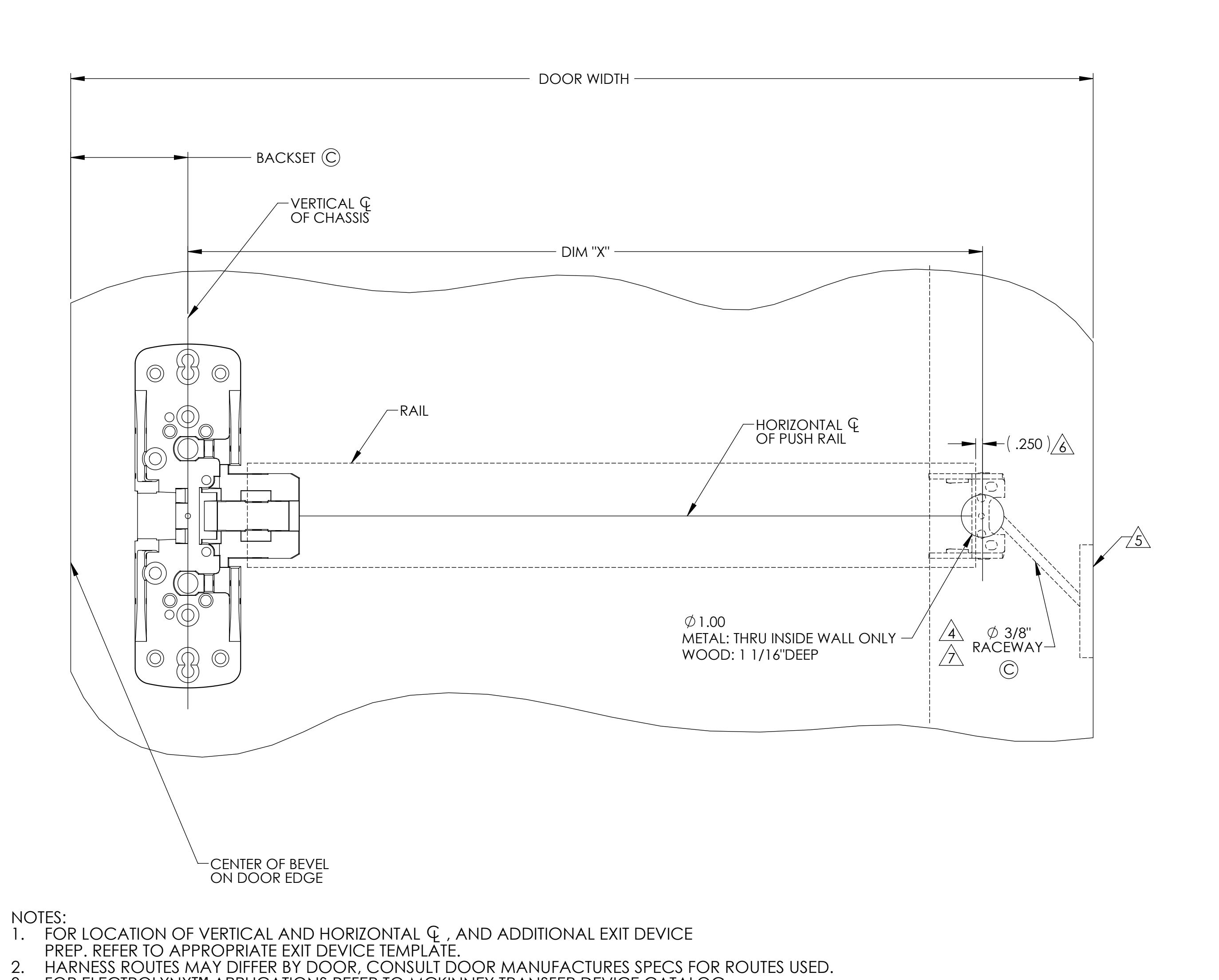

ELECTRIFIED EXIT DEVICE RAIL PREP LOCATION

DIMENSION "X" CROSS-REFERENCE CHART

DOOR WIDTH	DIM "X" FOR WIDE STYLE CHASSIS
48"	42.655"
47''	41.655"
46''	40.655"
45"	39.655"
44"	38.655"
43"	37.655"
42"	36.655"
41"	35.655"
40''	34.655"
39"	33.655"
38"	32.655"
37"	31.655"
36"	30.655"
35"	29.655"
34"	28.655"
33"	27.655"
32"	26.655"
31"	25.655"
30''	24.655"
29''	23.655"
28''	22.655"
27''	21.655"
26"	20.655"
25''	19.655"
24"	18.655"

AUTHORIZED 80 SERIES EXIT DEVICE PREFIX TEMPLATE AND INSTUCTION SHEET
DESCRIPTION	PREFIX	INSTALLATION INSTUCTIONS
LATCH MONITOR SWITCH	53-	A7678
SIGNAL SWITCH RAIL	55-	A6808
ELECTRIFIED LATCH RETRACTION	56-	A7925
DELAYED EGRESS	57-	A7743
ELECTRIC DOGGING	58-	A6835
ELECTROGUARD	59-	A7690
ALARMED	AL-	A7224
BEACON	BT-	A7974
ILLUMINATED TOUCHPAD	TL-	A7711

$\backslash bigcirc$

ſ
	SARGENT	Sargent	Manufo	acturing	Company
	ASSA ABLOY	100 Sarg	ent Drive	New Haver	n, CT 06511

FEB 11, 2010

EMPLATE NO. 4569 C

DOOR MANUFACTURERS TEMPLATE: ELECTRO - MECHANICAL EXIT DEVICE RAILS (WIDE DESIGN)

5. CONSULT WITH POWER TRANSFER DEVICE MANUFACTURER AND DOOR MANUFACTURER FOR

DOOR AND FRAME TEMPLATE DETAILS.

(C)

$\backslash bigcirc$

6. FOR MODIFIED RAIL LENGTHS; POSITION HOLE .250" BEYOND END OF RAIL.

7. DOOR MFG TO PROVIDE CLEARANCE IN REINFORCEMENT TO ALLOW INSERTION OF ELECTRICAL WIRES RUNNING BETWEEN RAIL AND ELECTRIC HINGE. MAKE PROVISIONS TO PROTECT WIRES FROM ABRASION.

3. FOR ELECTROLYNX^TM APPLICATIONS REFER TO MCKINNEY TRANSFER DEVICE CATALOG. 4. 3/8" RACEWAY FOR ELECTROLYNX^TM APPLICATIONS REFER TO MCKINNY TRANSFER DEVICE CATALOG.

(C)
