TEMP-CONV 7500-125 HiTower CONVERSION TEMPLATE – 1-1/4" - 1-3/4" FRAMES

NOT TO SCALE

DO NOT USE THIS TEMPLATE FOR SCHLAGE APPLICATIONS

IMPORTANT

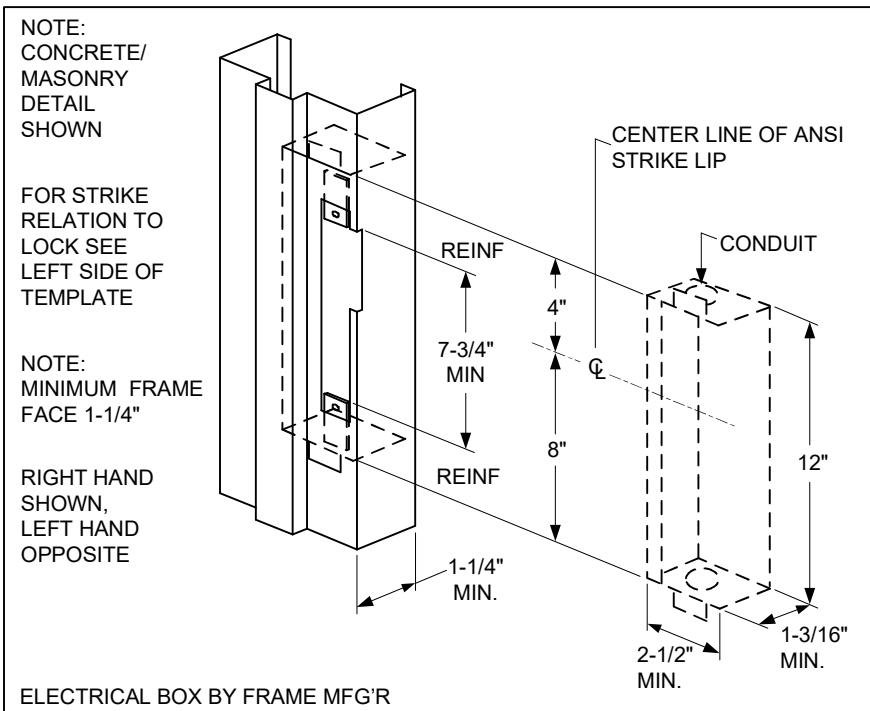

Details show space requirements for electric controller box. Allowances for different wall construction materials must be taken into consideration. Install conduit connectors in top of box before welding to frame.

NOTE:

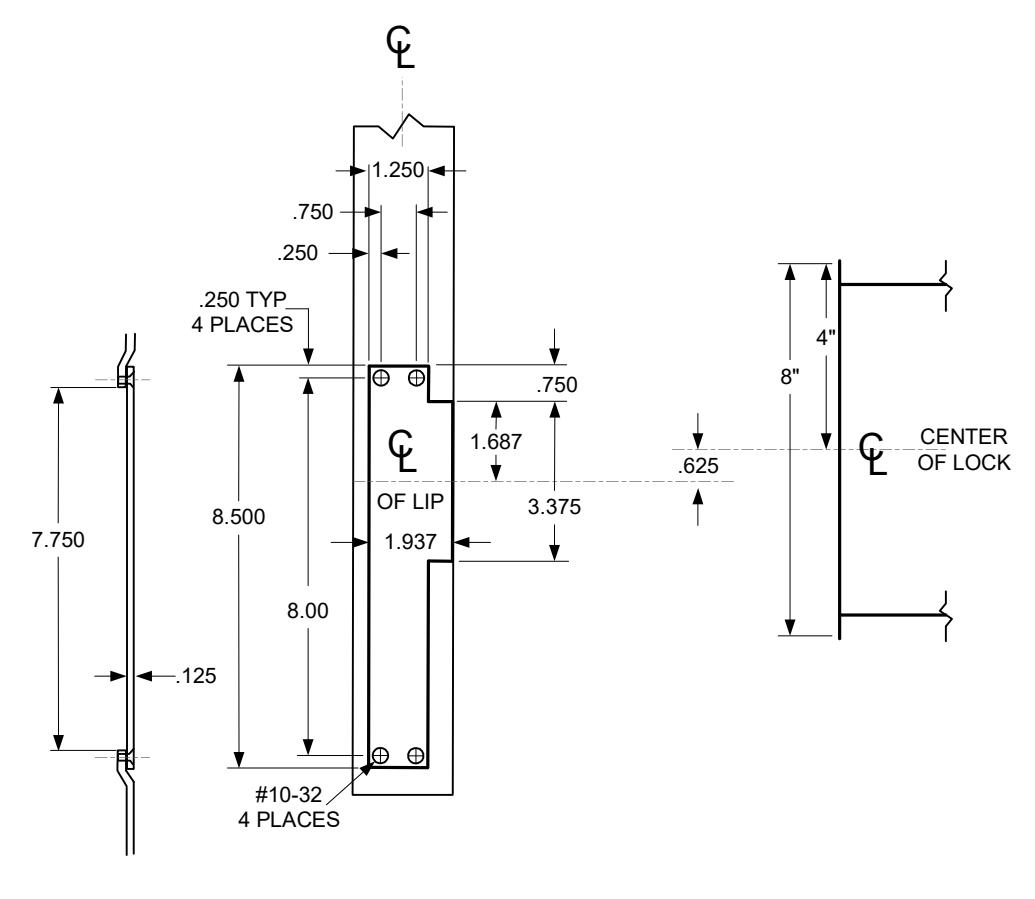

THE 7-3/4" CLEARANCE BETWEEN THE STRIKE REINFORCEMENT TABS IS CRITICAL. *MAXIMUM THICKNESS OF TABS .125

UL LISTED BOX AS SHOWN AVAILABLE FROM SECURITY DOOR CONTROLS PART #7500EB-N

HOLES REQUIRED FUNCTIONS O O O CYL OUTSIDE ONLY SIDES 7550 7530

Door Prep. Only

Identify the lock and manufacturer by letter prefix. Review proper manufactures template requirements for door prep only . See details far left and above for frame prep.

SOURCE#		MODEL#
ZY	SDC	7550
0	Yale	7130F L5
U	Dorma	ML9080
٧	Marks	5EW
Α	Falcon	MA581
