PRODUCT DESCRIPTION
The TDM-HC is a multipurpose microprocessor based timing module that can be used for a variety of applications. Its unique design and open architecture allows the TDM-HC to be used in any type of application that requires timing control of up to two outputs with up to four inputs.
The first output of the TDM-HC has a capacity of 20 amps, making it compatible with every electronic locking device, including electric-latch-retraction exit devices
Common Applications include:
- Using the TDM-HC to provide asimple time delay of 0-99seconds..
- Using the TDM-HC as a make/break relay to eliminatemechanical binding of theelectrical locking mechanism onan automatic door.
- Using the TDM-HC to sequencevestibule doors. One unit iscapable of sequencing thevestibule doors from bothdirections.
The four inputs on the TDM-HC allow sequencing or independent operation of the two outputs.
- Input 1 will sequence Output 1then 2.
- Input 2 will sequence Output 2then 1.
- Input 3 will operate Output 1 independently.
- Input 4 will operate Output 2 independently.
Both outputs on the TDM are programmable for "on time" duration as well as the delay time between the two outputs from 0 to 99 seconds
SPECIAL FUNCTIONS
Pushbutton Fault Indicator
- Provides valuable diagnostic information to installer Preprogrammable
- Easily set-up on site or inadvance using the LED Display
- Settings are stored in memoryso TDM-HC remembers settings (even after powerfailure)

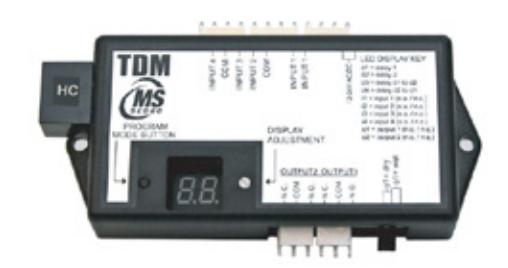

TDM-HC UNIVERSAL TIME DELAY MODULE
HIGH CURRENT
American National Standards Institute (ANSI) - Building Hardware ManufacturersAssociation (BHMA) - ANSI/ BHMA A156.10 & A156.19.
SPECIFICATIONS
| Model | TDM-HC |
|---|---|
| Power | 12 to 24 V AC or DC |
| Power Consumption | 2W Maximum |
| Output Contact | Form C, Rated At 20 Amps |
| Temperature | -22°F to 158°F (-30°C to 70°C) |
| Color | Flat Black |
| Enclosure | ABS Plastic |
| Weight | 0.25 lb. |

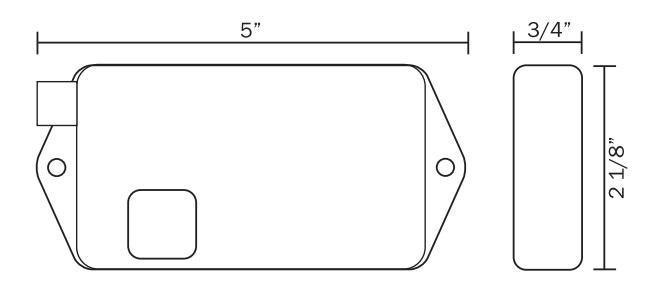

| Physical Size | 5"L x 2 1/8"W x 3/4"H |
