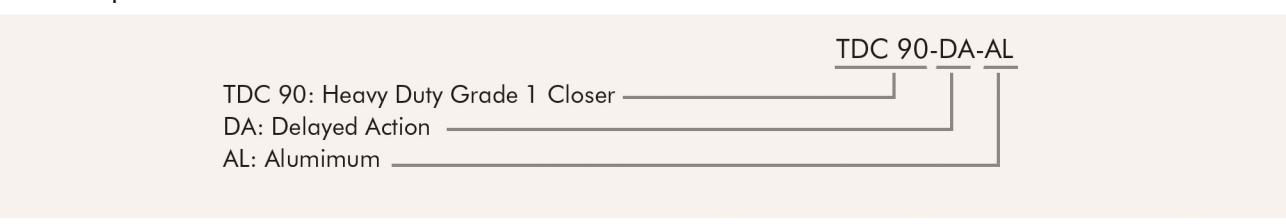

TDC90 How-To-Order

Open the original PDF document

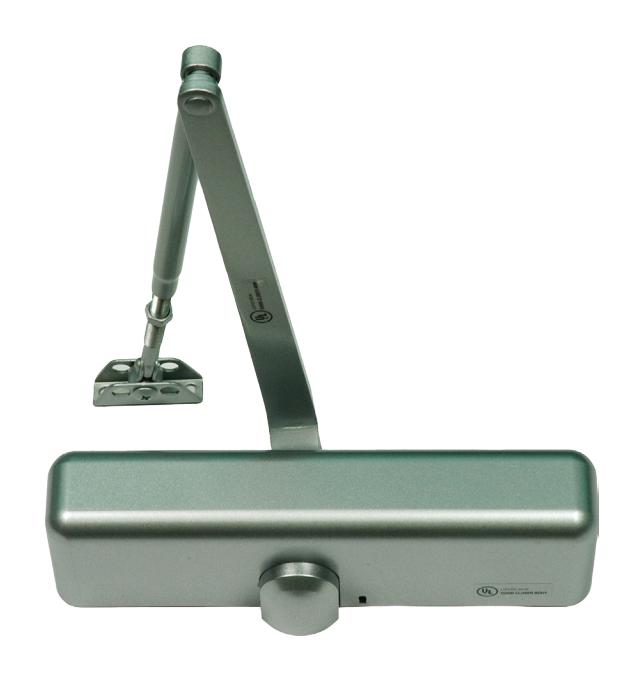

TDC90 CLOSERS

GRADE 1

Lite Duty Commercial Door Closer

FEATURES

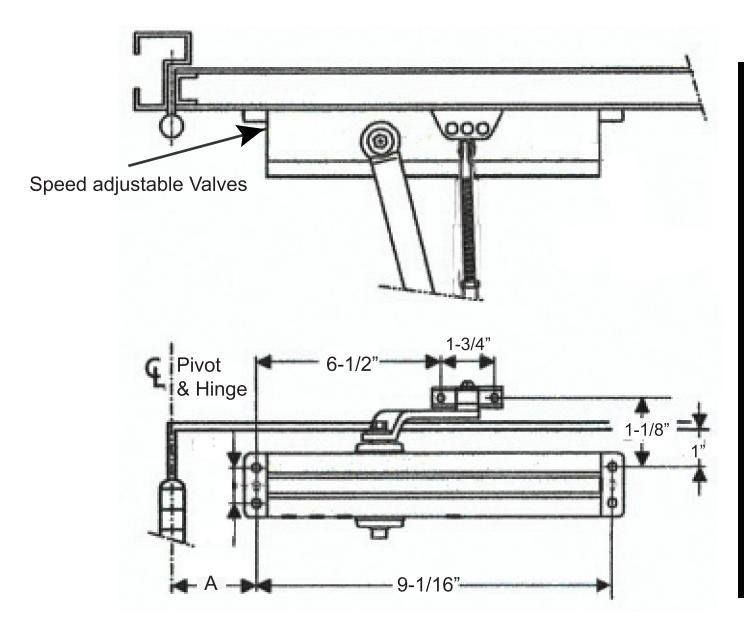

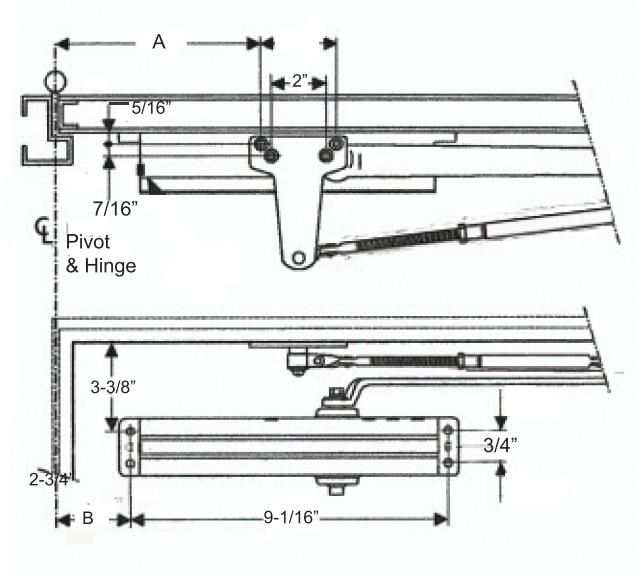

Tri-Pack with regular, parallel and top-jamb mounting, instructions and full size template.
BF -Barrier free spring adjustment from size 1 to 4.
Standard spring adjustment from size 2 to 5.
Non handed.
Standard with adjustable sweep, latch and back check.

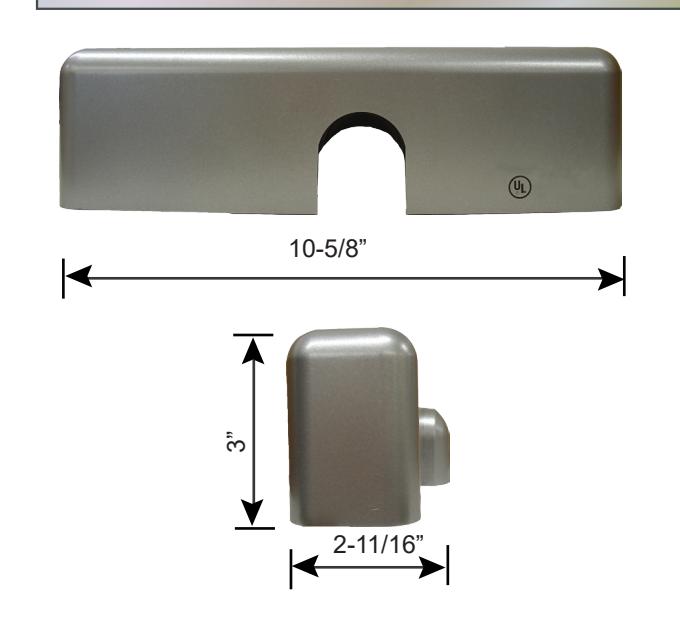

Slimline Plastic Cover.
SNB Sex Nuts and Bolts.
Standard hole pattern and mounting location.

SPECIFICATIONS

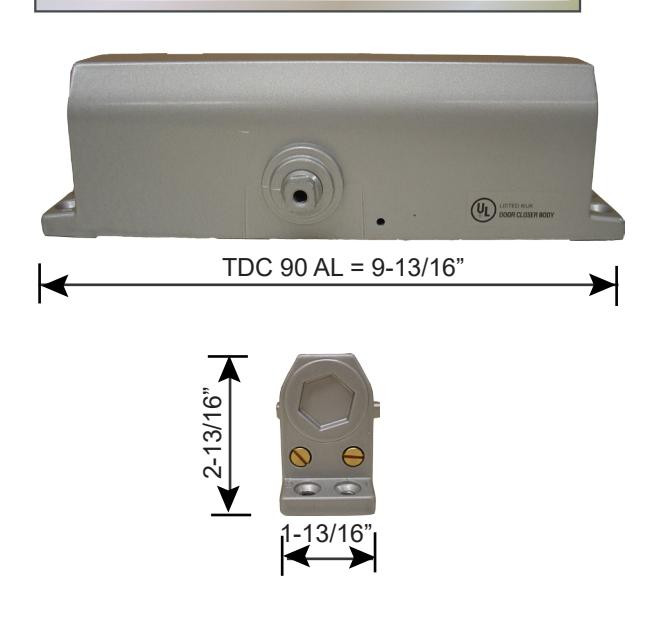

Closer Closers shall be by TownSteel model number TDC-90 and TDC-90BF, full rack and pinion type with cast aluminum alloy body. All closers shall be provided with non-critical valves adjustment to independently regulate the sweep, latch and back-check. Closers shall be non-handed with projection from the face of the door of 2-1/16' without cover and 3" with cover. Closer shall have full spring adjustment from size 1 to size 4 for barrier free (BF) size and size 2 to size 5 for standard size. The closer shall be pre-adjusted at the factory to size 2 for the TDC90BF and size 3 for TDC90. The closer shall be adjusted for each door condition and mounted to allow the maximum degree of swing.
