TDC-85 SERIES DOOR CLOSER

INSTALLATION INSTRUCTIONS Non Hold Open Door Closer

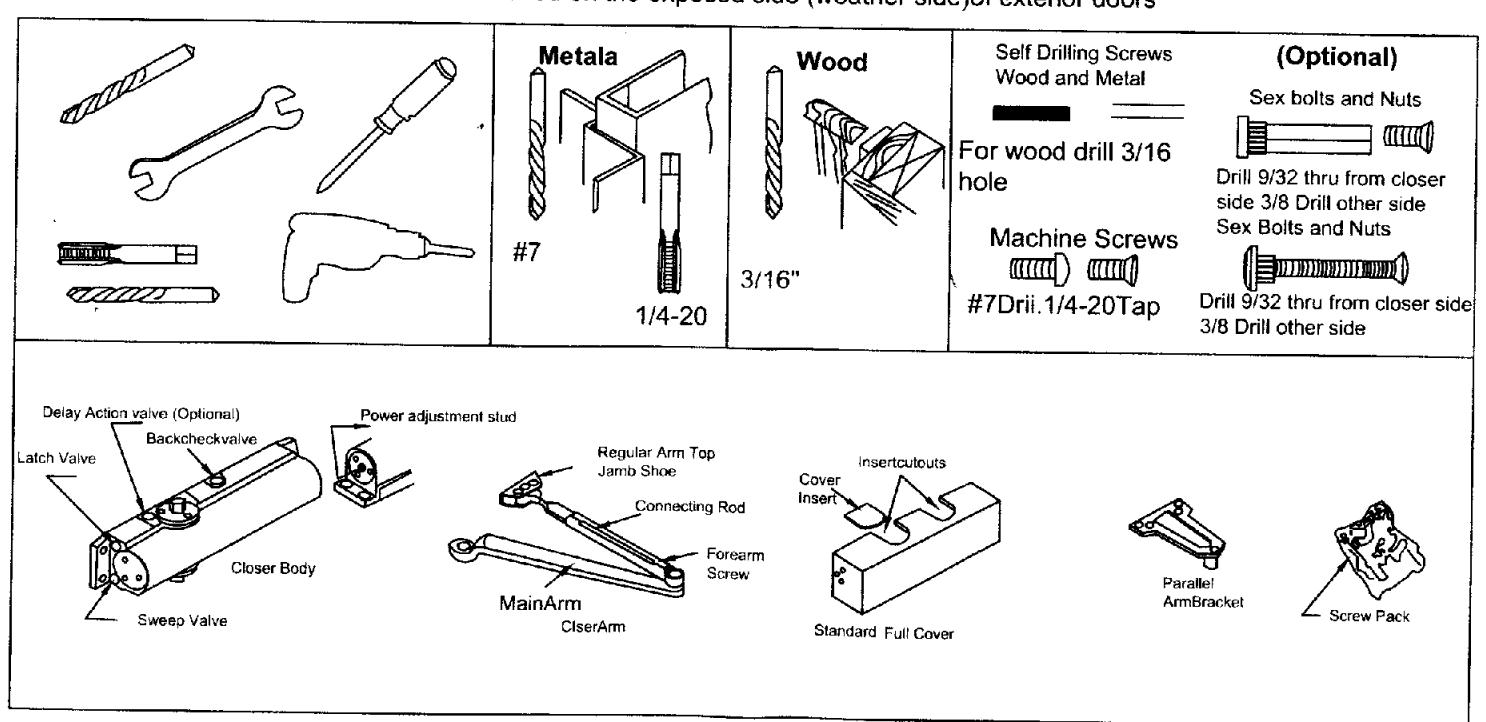

Non hold Open Model Adjustable Size (1 thru 6) Standard Backcheck Optional Delay Action

An incorrectly installed or improperly adjusted doorcloser can caused properly damage or personal injury. These installation instructions should be followed to avoid the possibility of misapplication or misadjustment

NOTE: For special applications a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustable only.

• Doors should be hung on ball bearing or Anti-friction hinges.
• A separate door stop is recommended.
• Door and frame must be properly reinforced.
• Adjust closing time speed between 3 and 7 seconds from 90° to 0°. Greater closing Times may be required for elderly or handicapped.

These door closers shuold NOt be installed on the exposed side (weather side)of exterior doors

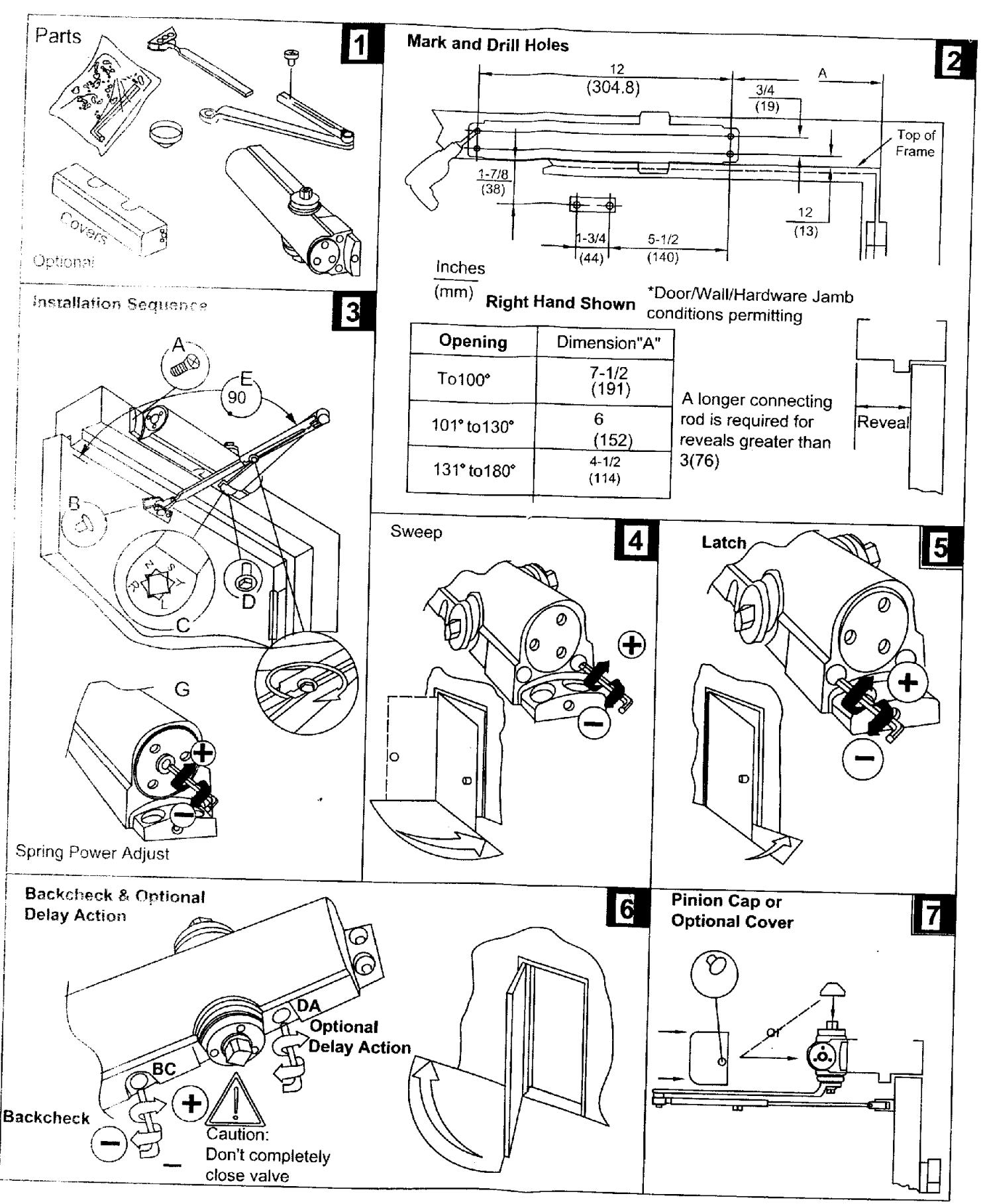

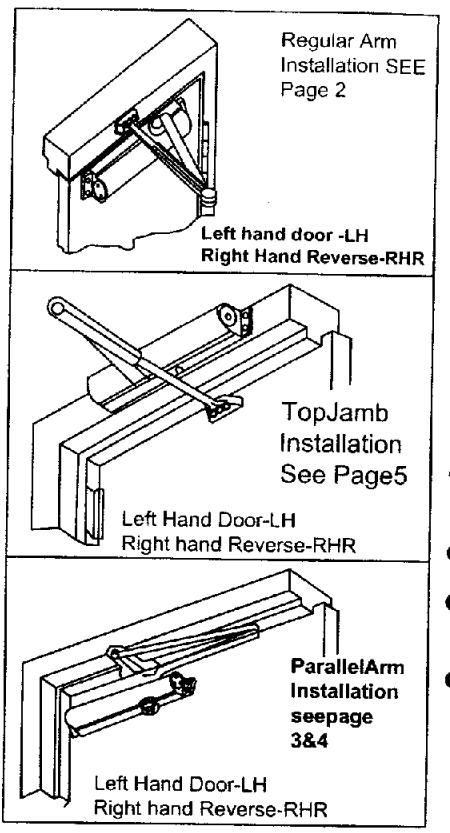

Non Hold Open Door Closers-Regular Arm Mark and Drill Holes 1000 5-1/2 (140) 1-3/4 (44)1-3/16 (30)(30)12 (304.8) Optional Right Hand Shown Installation Sequence 3 Dimension A Opening <u>Inches</u> (mm) 7-1/2 To 100° (191)* Door/Wall/Hardware/Jamb 101° to 130° (152)conditions permitting 4-1/2 131° to*180° (114)4 5 Sweep Latch Burng power Adjust Backcheck & Optional 6 Pinion Cap 7 Delay Action or Optional Cover

Optional Delay Action

Caution:

Don't completely closevalve

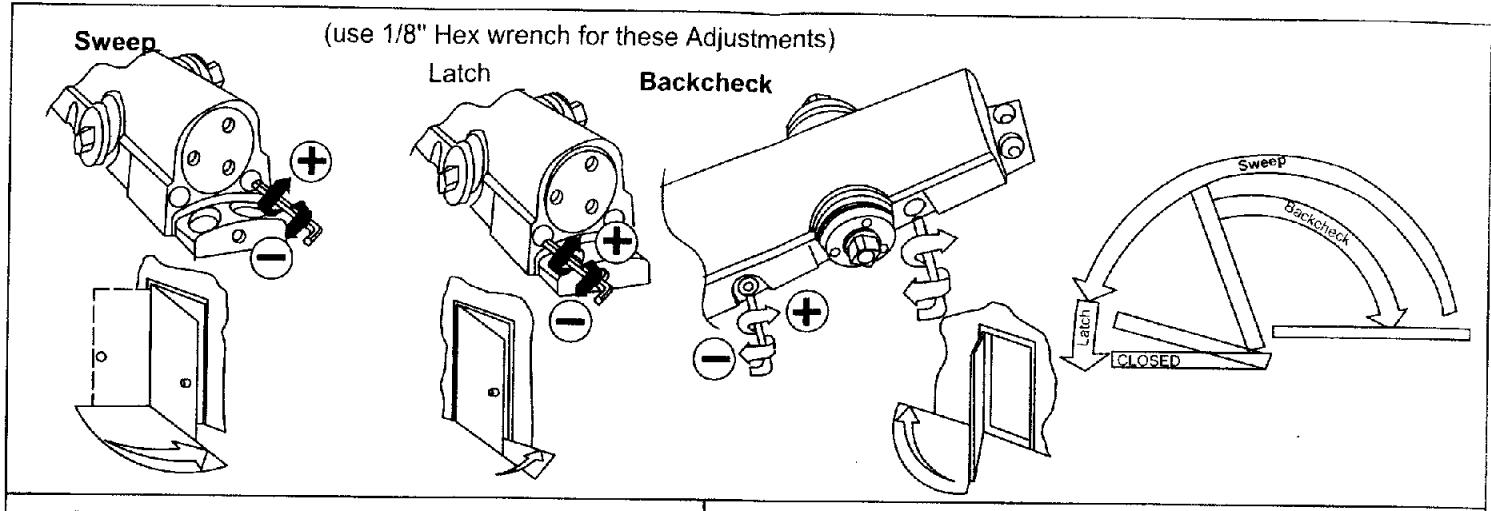

Backcheck

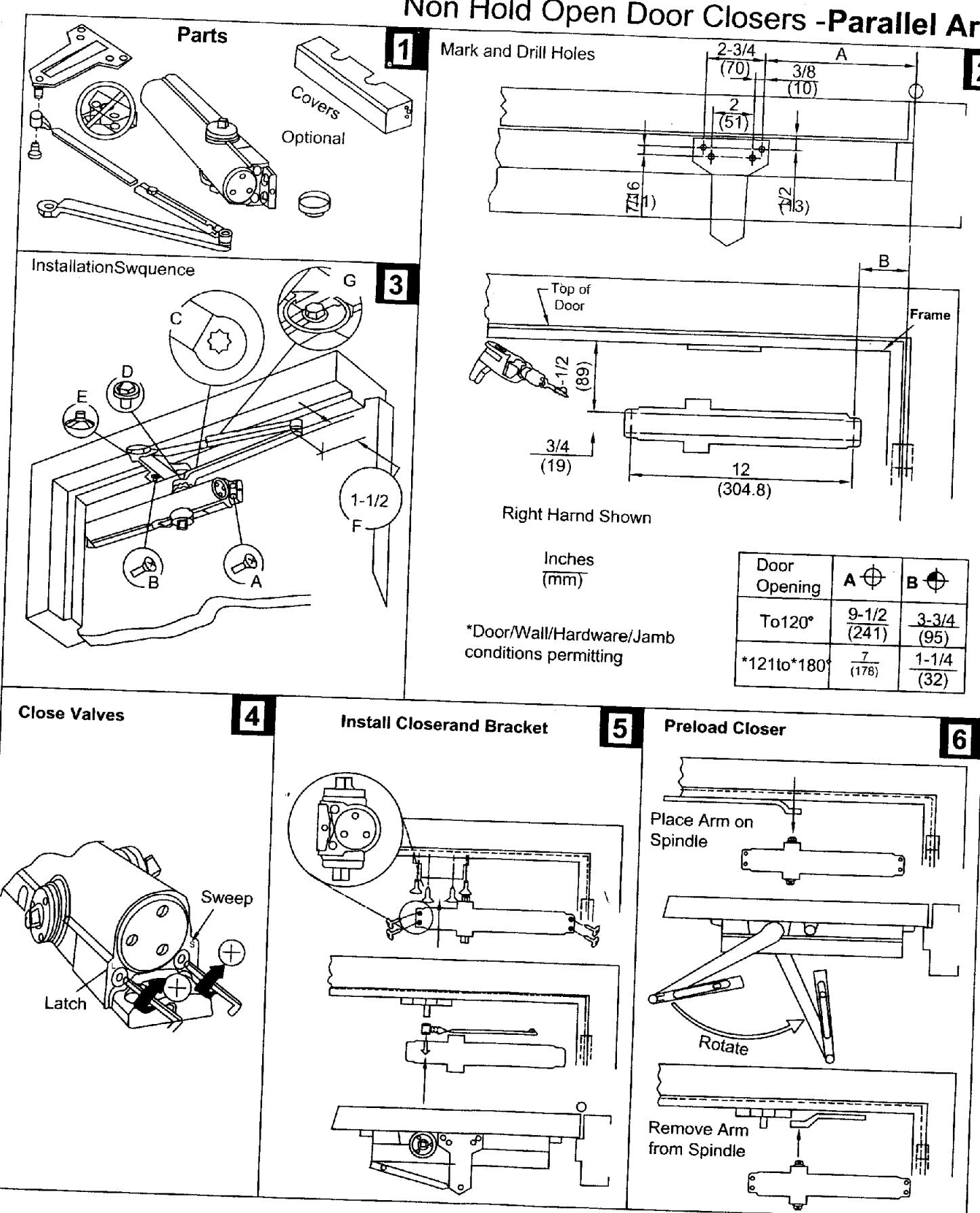

Non Hold Open Door Closers -Parallel Arm

TDC-85 SERIES DOOR CLOSER

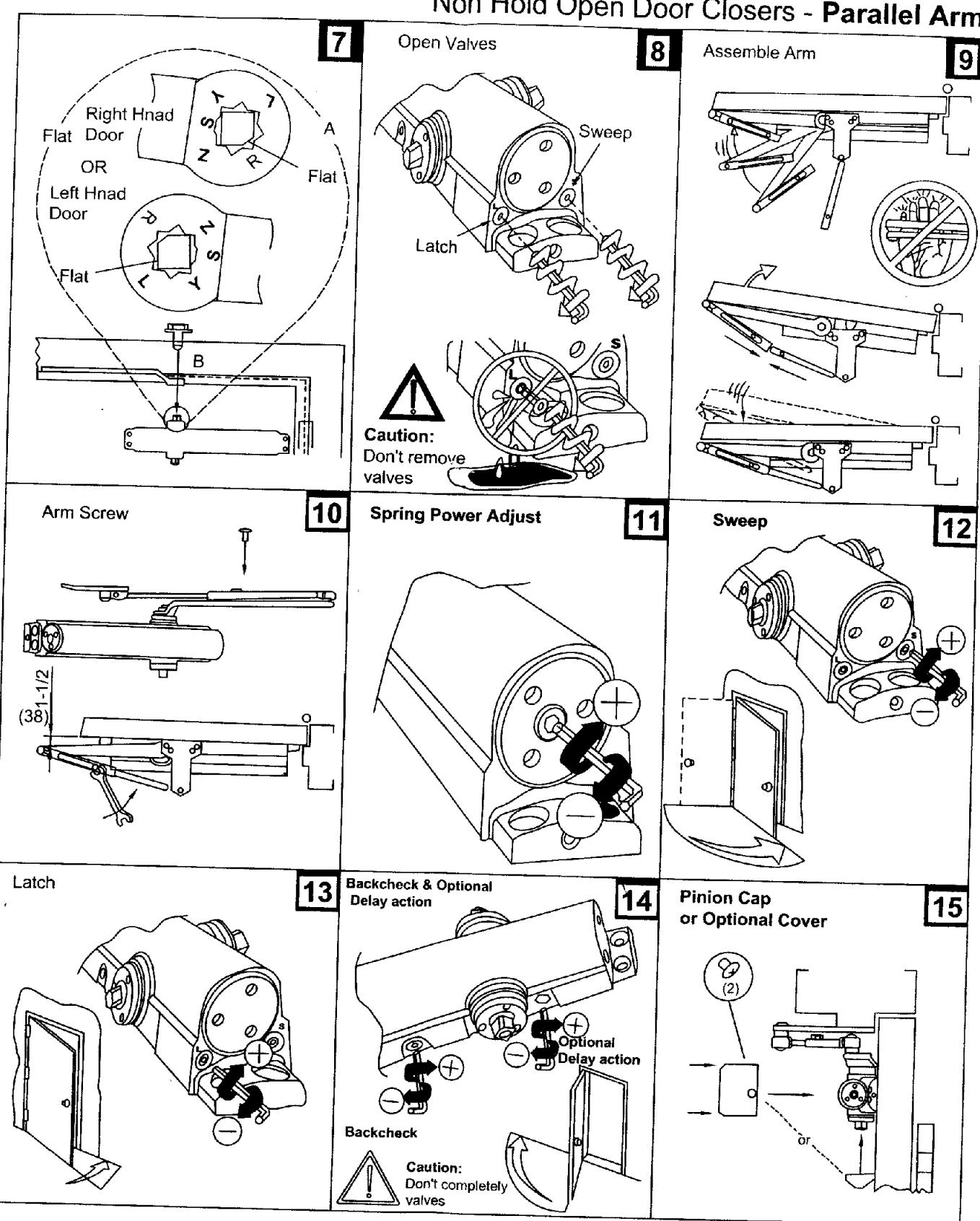

Non Hold Open Door Closers - Parallel Arm

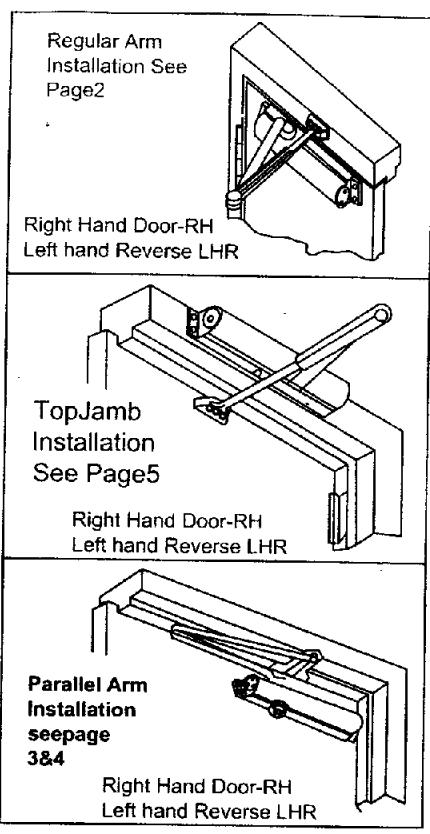

Non Hold Open Door Closer -Top Jamb Arm

Adjustments Page

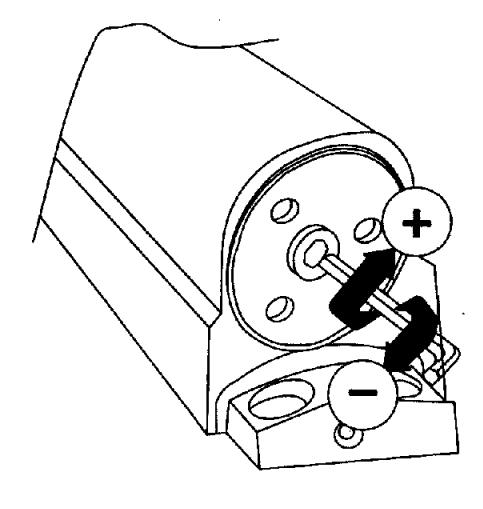

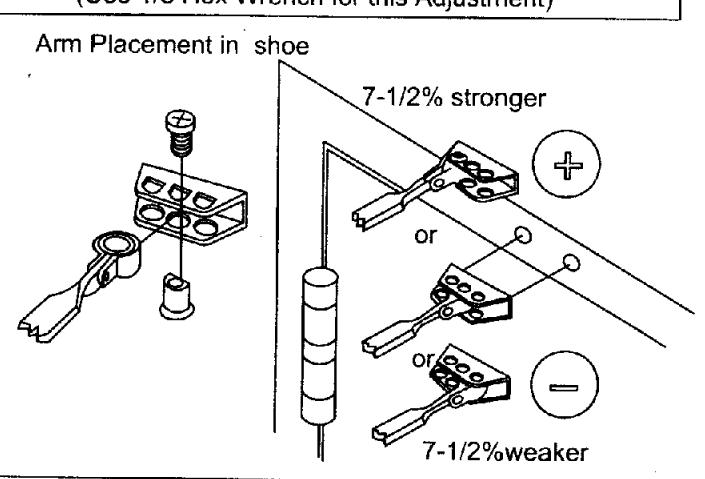

Spring Power Adjust

(Use 1/8 Hex Wrench for this Adjustment)

POWER ADJUSTMENT CHART

MAXIMUM DOOR WIDTH		FULL TURNS	MAX.DOOR
EXTERIOR DOORS	INTERIOR DOORS	REQUIRED	WEIGHT LBS (KGS)
	5lb-f*	-7 TURNS C.C.W.	55 ( - 25)
8.5lb-f*	34"(864)	-3 TURNS C.C.W.	55-99 (25-45)
30"(762)	38"(962)	0 TURNS	99-143 (45-65)
36"(914)	48"(1219)	4 TURNS C.W.	143-187 (65-85)
42"(1067)	54"(1372)	8 TURNS C.W.	187-264 (85-120)
48"(1291)	60"(1542)	13 TURNS C.W.	264-330 (120-150)

NOTED! 20 Full (360°) turns maximum available from the Min. setting. Factory preset size 3 originally.
