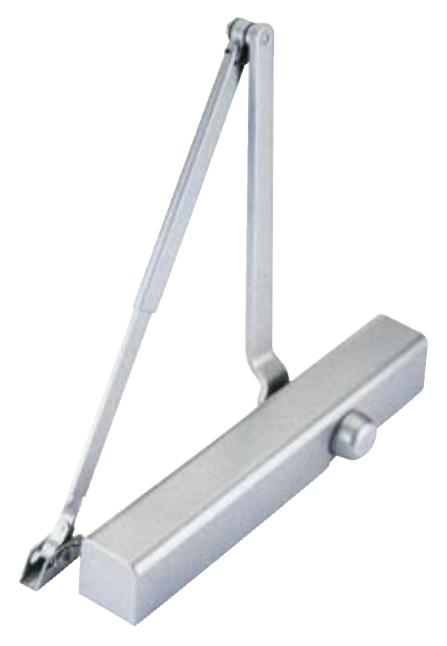

TDC85 CLOSERS

GRADE 1

HEAVY DUTY POWER ADJUSTABLE CLOSER

FEATURES

• Easy to install
• UL listed
• ANSI 156.4 Grade 1
• Power adjustable closer (Standard: Size 1-6)
• Standard adjustable back-check function
• Needle bearing application
• Efficiency over 70%
• Highly precise closer for high performance
• Standard plastic full cover

• Standard PA bracket for tri-packed application
• Optional polished brass / Stainless steel cover and arm set
• Optional adjustable hold open arm
• Optional Cush-n stop arm
• Optional forged hold open arm
• Optional Tracked Arm
• Finishes: Plastic Cover- AL,Duro,Gold
• 25 year Guarantee

17901 Railroad Street, City of Industry, CA 91748 Toll Free: 877-858-0888

Tel: 626-965-8917 Fax: 626-965-8919 www.townsteel.com

TDC-85 Door Closer

Series	Arm Type	Delayed Action	Finishes	ВАА
TDC 85: Heavy duty Closer	Blank: Regular Arm, Standard HOA: Hold Open Arm CUSH: CUSH Arm HCUSH: Hold-Open and Cush Arm	Blank: No Delayed Action DA: Delayed Action	AL: Aluminum DU: Duro	Blank: Non BAA BAA: Meets the Buy American Act

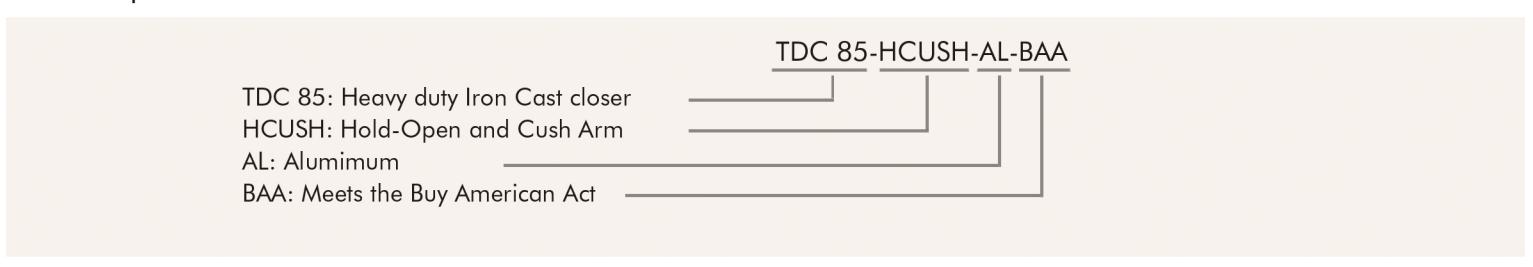

Order Sample

TDC-85 Drop Plate

Series	Finishes
TDC-85-DPPA TDC-85-DP	AL: Aluminum DU: Duro
Example:	TDC-85-DPPA-AL
TDC-85-DPPA ———————————————————————————————————

TDC-85 Arm

Series	Finishes
TDC ARM-01: Friction Hold-Open Arm TDC ARM-02: Cush Arm TDC ARM-03: Cush and Hold-Open Arm	AL: Aluminum DU: Duro
Example:	TDC ARM-01-AL
TDC ARM-01: Friction Hold-Open Arm AL: Aluminum
