TDC70 CLOSERS

GRADE 1

Heavy Duty Commercial Door Closer

FEATURES

• Tri-Pack with regular, parallel and top-jamb mounting, instructions and full size template.
• Standard spring adjustment from size 2 to 6
• Non handed
• Standard with adjustable sweep, latch and back check.
• Full plastic cover
• SNB Sex Nuts and Bolts
• Standard hole pattern and mounting location.

OPTIONS

• BF Barrier free spring adjustment from size 1 to 4
• DA Delay Closing Action.

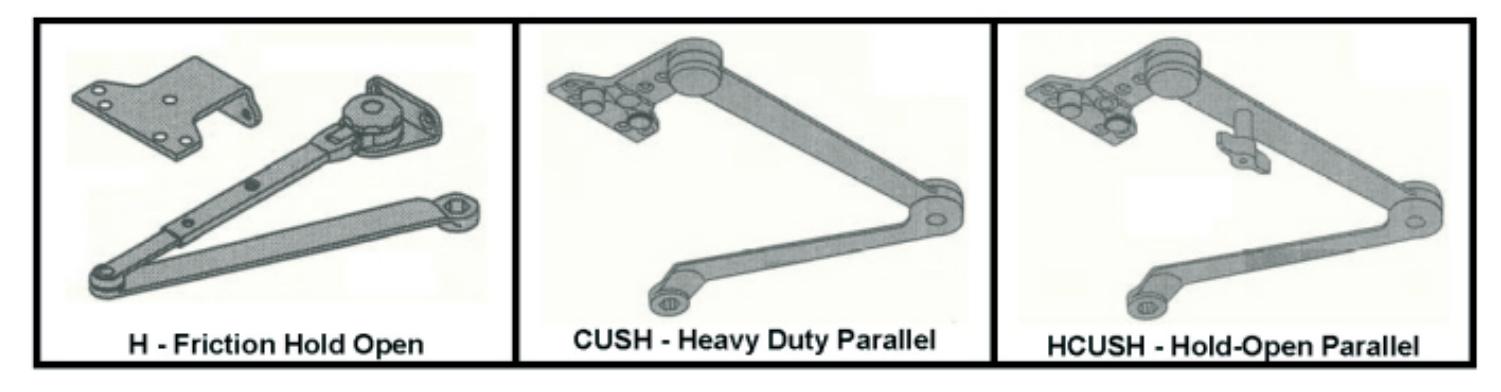

• H Friction Hold-Open Non-Handed Arm.
• CUSH Heavy Duty Parallel Mount Cush Arm.
• HCUSH Heavy Duty Parallel, Hold-Open Cush Arm.

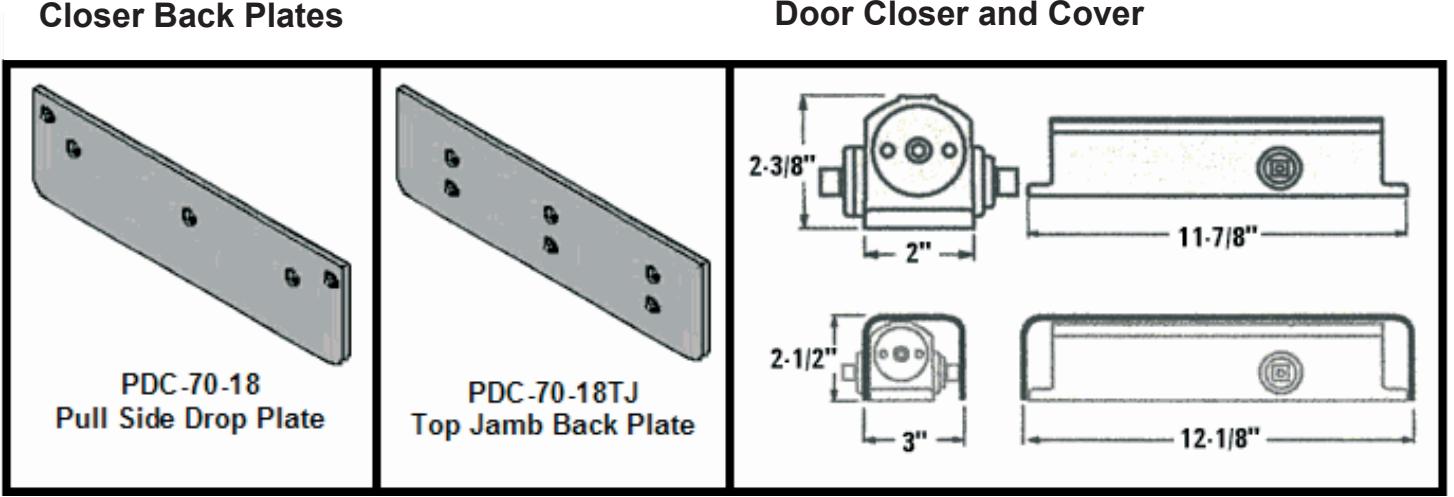

• PTDC7018 Drop Plate, Pull-side Mount
• PTDC7018TJ Back Plate Top Jamb Mount Plate. TRACK - Slide Track Arm.

Shipping Weight

TDC70 = 7 lbs TDC50 = 6 lbs TDC90 = 6 lbs

SPECIFICATIONS

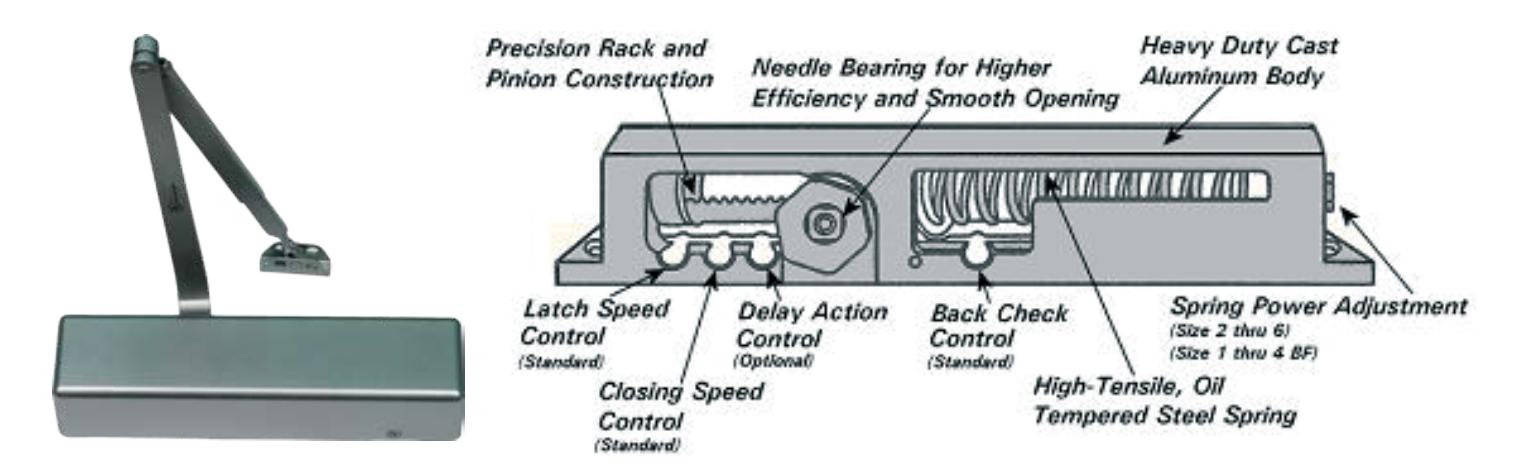

Closer - Closers shall be by TownSteel model number TDC70 and TDC70BF, full rack and pinion type with cast aluminum alloy body. All closers shall be provided with non-critical hex-key adjustment to independently regulate the sweep, latch and back-check. Closer shall be non-handed with full cover and projection of 2-1/2" from the surface of the door. Closer shall have full spring adjustment from size 1 to size 4 for barrier free (BF) size and size 2 to size 6 for standard size. The closer shall be pre-adjusted at the factory to size 2 for TDC70BF and size 3 for TDC70. Each closer shall be adjusted for each door condition and mounted to allow the maximum degree of swing.

17901 Railroad Street, City of Industry, CA 91748 Toll Free: 877-858-0888

Tel: 626-965-8917 Fax: 626-965-8919 www.townsteel.com

GRADE 1

Door Closer Arms

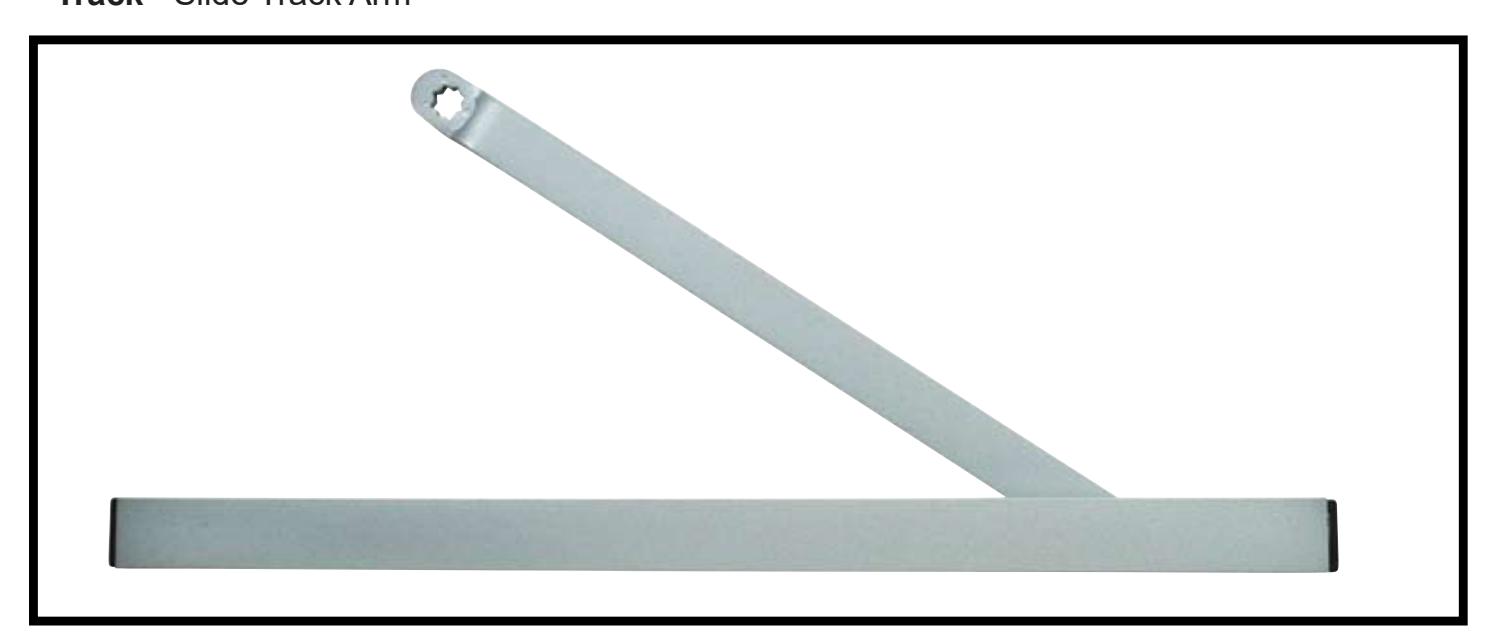

Track - Slide Track Arm

17901 Railroad Street, City of Industry, CA 91748 Toll Free: 877-858-0888

Tel: 626-965-8917 Fax: 626-965-8919 www.townsteel.com

TDC-70 Door Closer

Series	Arm Type	Delayed Action	Finishes	BAA
TDC 70: Heavy duty Closer	Blank: Regular Arm, Standard HOA: Hold Open Arm CUSH: CUSH Arm HCUSH: Hold-Open and Cush Arm	Blank: No Delayed Action BF: Delayed Action	AL: Aluminum DU: Duro	Blank: Non BAA BAA: Meets the Buy American Act

Order Sample

TDC 70-HCUSH-BF-AL-BAA TDC 70: Heavy duty Iron Cast closer HCUSH: Hold-Open and Cush Arm BF: Delayed Action AL: Alumimum BAA: Mosts the Buy American Act
BAA: Meets the Buy American Act

TDC-70 Drop Plate

Series	Finishes	Example:	TDC-70-DPPA-AL
TDC-70-DPPA: for push side parallel TDC-70-DP: for pull side mounting	AL: Aluminum DU: Duro	TDC-70-DPPA: for push side paralle

TDC-70 Arm

Series	Finishes	Example:
TDC ARM-01: Friction Hold-Open Arm TDC ARM-02: Cush Arm TDC ARM-03: Cush and Hold-Open Arm TDC ARM-04: Slide Track Arm	AL: Aluminum DU: Duro	TDC ARM-01-AL TDC ARM-01: Friction Hold-Open Arm AL: Aluminum
