GRADE 1

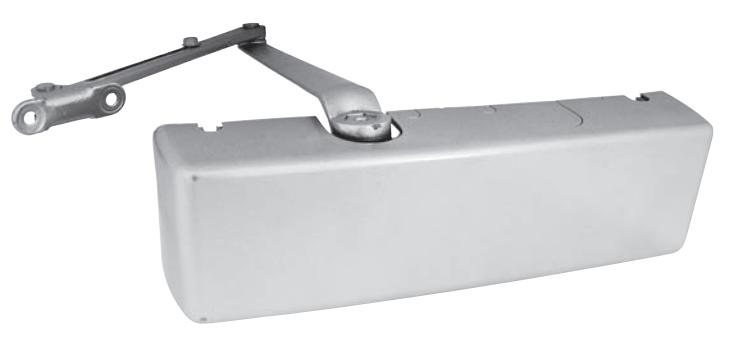

Extra Heavy Duty Commercial Door Closer

FEATURES

• Tri-Pack with regular, parallel and top-jamb mounting, instructions and full size template.
• Barrier free spring adjustment from size 1 to 6.
• Non handed.
• Standard with adjustable sweep, latch and back check.
• Full plastic cover.
• SNB Sex Nuts and Bolts.
• Standard hole pattern and mounting location.

Shipping Weight

TDC40 = 12lbs

TDC70 = 7 lbs

TDC50 = 6 lbs

TDC90 = 6 lbs

OPTIONS

• DA Delay Closing Action.
• H Friction Hold-Open Non-Handed Arm.
• CUSH Heavy Duty Parallel Mount Cush Arm.
• HCUSH Heavy Duty Parallel, Hold-Open Cush Arm.
• PTDC4018 Drop Plate, Pull-side Mount.
• PTDC4018G Drop Plate Top jamb Drop Down Plate.
• PTDC4018PA Back Plate Top Jamb Mount Plate.
• PTDC4018TJ H Drop Plate Parallel Arm Mount Plate.

SPECIFICATIONS

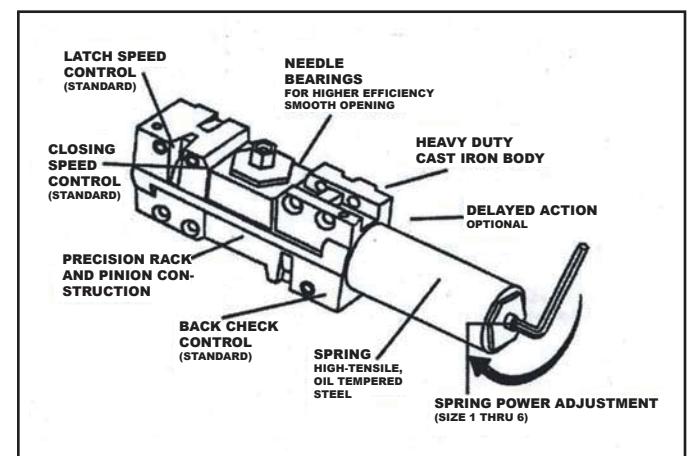

Closer - Closers shall be by TownSteel model number TDC40, full rack and pinion type with cast iron body. All closers shall be provided with non-critical values with hex-key adjustment to independently regulate the sweep, latch and back-check. Closer shall have full spring adjustment from size 1 to size 6 and be non-handed, with full cover and narrow projection of 2-1/4" from the surface of the door. All closers shall be mounted to allow the maximum degree of swing.

17901 Railroad Street, City of Industry, CA 91748 Toll Free: 877-858-0888

Tel: 626-965-8917 Fax: 626-965-8919 www.townsteel.com

TDC40 CLOSERS

GRADE 1

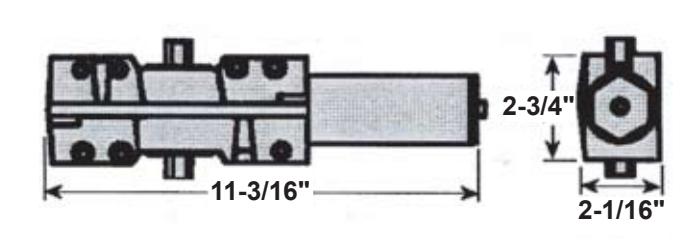

10-13/16" 1-15/16" 11/16" 11/16" 2-1/4" 6-1/4" 1" 3" 1"

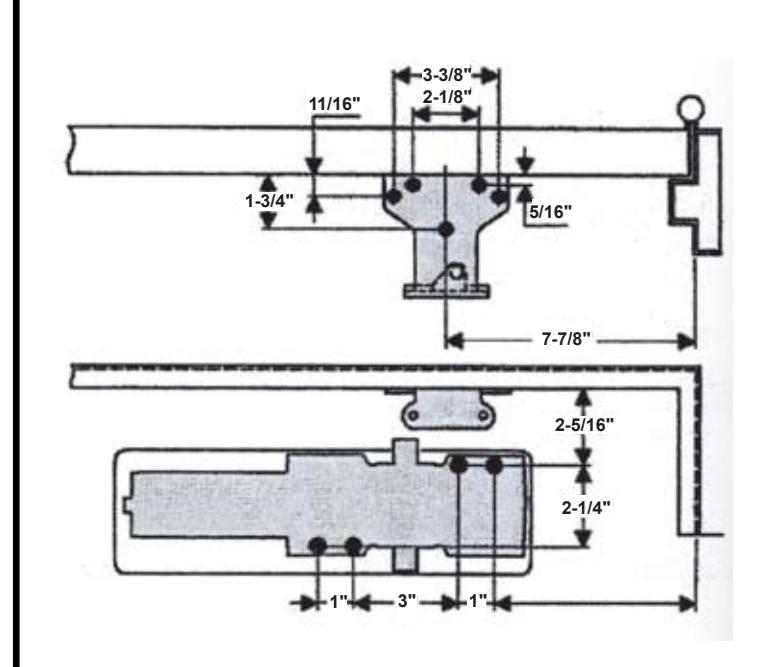

PULL SIDE INSTALLATION PUSH SIDE INSTALLATION

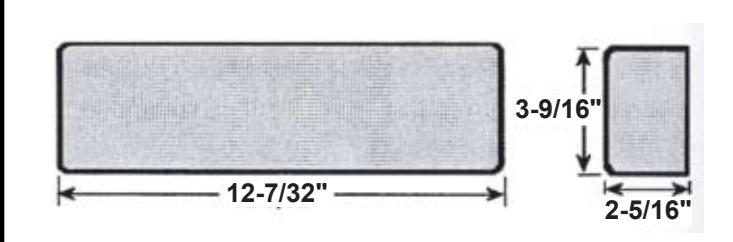

CLOSER BODY

17901 Railroad Street, City of Industry, CA 91748 Toll Free: 877-858-0888

Tel: 626-965-8917 Fax: 626-965-8919 www.townsteel.com

TDC-40 Door Closer

Series	Arm Type	Delayed Action	Finishes	ВАА

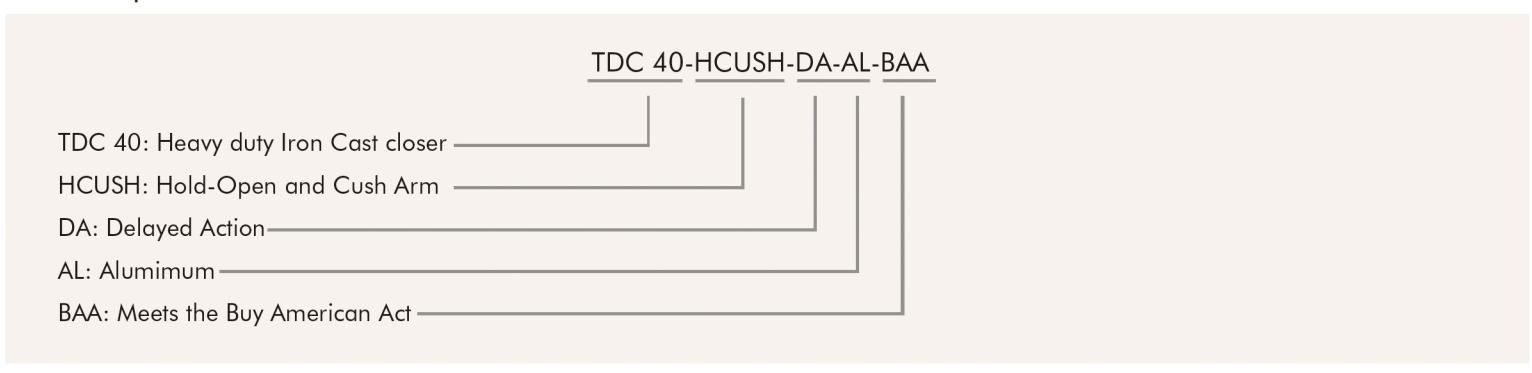

TDC 40: Heavy duty Closer	Blank: Regular Arm, Standard HOA: Hold Open Arm CUSH: CUSH Arm HCUSH: Hold-Open and Cush Arm EDA: Extra Heavy Duty Arm	Blank: No Delayed Action DA: Delayed Action	AL: Aluminum DU: Duro	Blank: Non BAA BAA: Meets the Buy American Act

Order Sample

TDC-40 Drop Plate

Series	Finishes	Example:
TPDC 718: for hinge side mount TPDC 718G: for head frame flush with ceiling TPDC 718TJ: Head frame less than 3 1/2" TPDC 718PA: for parallel arm mounting	AL: Aluminum DU: Duro	TPDC 718-AL TPDC 718: for hinge side mount AL: Aluminum

TDC-40 Arm

Series	Finishes	Example:
TDC ARM-01-40: Friction Hold-Open Arm TDC ARM-02-40: Cush Arm TDC ARM-03-40: Cush and Hold-Open Arm	AL: Aluminum DU: Duro	TDC ARM-01-40-AL TDC ARM-01-40: Friction Hold-Open Arm AL: Aluminum
