GRADE 3

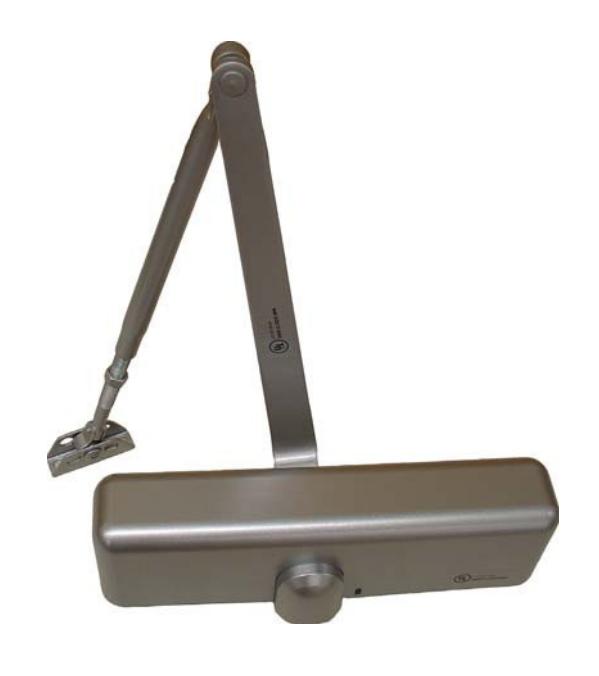

Economy Commercial Door Closer
FEATURES
- Tri-Pack with regular, parallel and top-jamb mounting, instructions and full size template.
- Standard Closer Spring Sized to 3, 4 with NO adjustment.
- Non handed
- Standard with adjustable sweep, latch.
- Slimline Plastic Cover
- SNB Sex Nuts
- Standard hole pattern and mounting location.
SPECIFICATIONS
Closer - Closers shall be by TownSteel model number TDC50. a full rack and pinion type with cast aluminum alloy body. All closers shall be provided with non-critical valves with flat head adjustment to independently regulate the sweep, latch and back-check valves. Closer shall have set spring size. Closers shall be non-handed with projection of 2-1 /2" from the surface of the door. All closers shall be mounted to allow the maximum degree of swing.
OPTIONS
- BC Backcheck Adjustment Valve
- SIZE 2, 5 available special order only
17901 Railroad Street, City of Industry, CA 91748 Toll Free: 877-858-0888
Tel: 626-965-8917 Fax: 626-965-8919 www.townsteel.com
TDC50 CLOSERS
GRADE 3

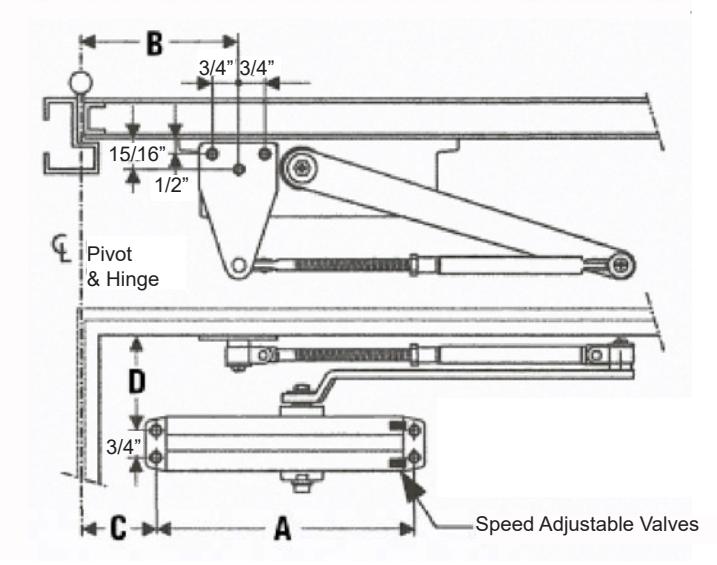

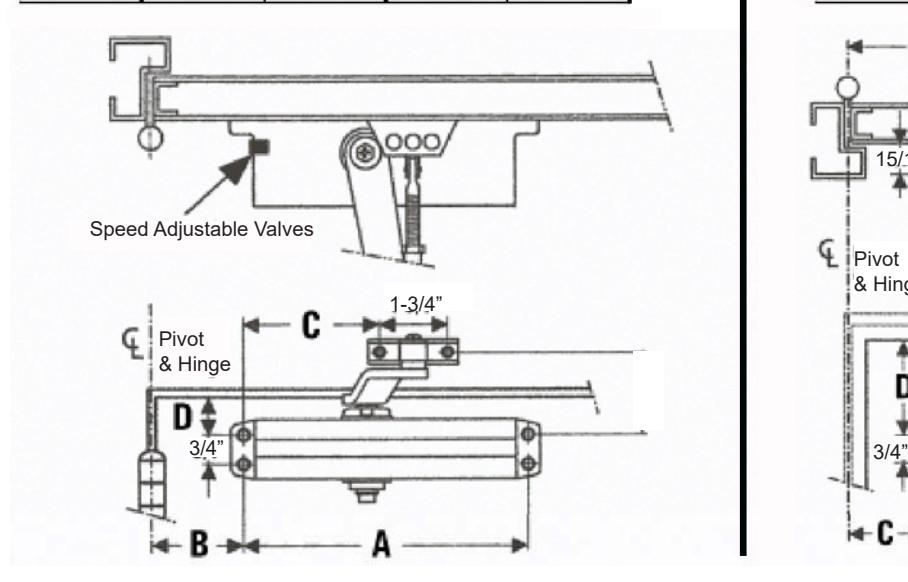

PULL SIDE INSTALLATION PUSH SIDE INSTALLATION
| Model | Model | ||||
|---|---|---|---|---|---|
| TDC53 | 8-3/16" | 4" | 6-1/2" | 1-1/8" | TDC53 |
| TDC54 | 9-1/16" | 4" | 6-1/2" | 1-1/8" | TDC54 |
| TDC53 | 8-3/16" | 8-3/4" | 5-5/8" | 3-3/8" |
| TDC54 | 9-1/16" | 8-3/4" | 4-3/4" | 3-3/8" |

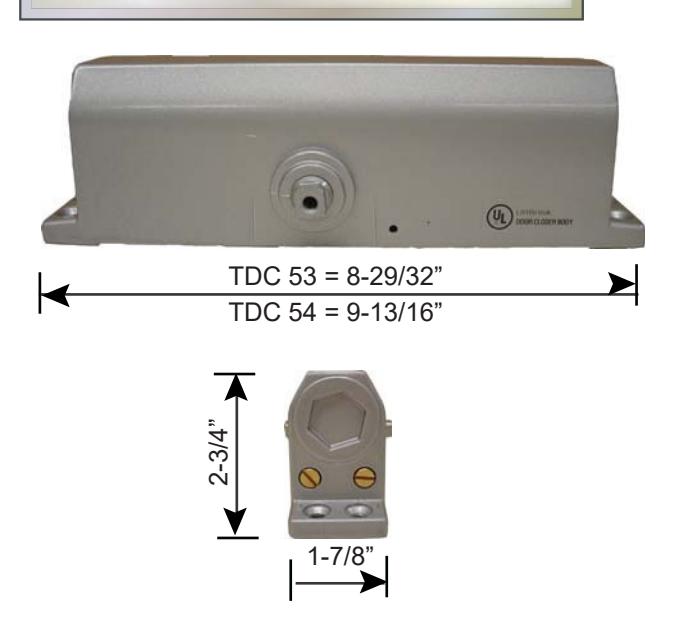

CLOSER BODY

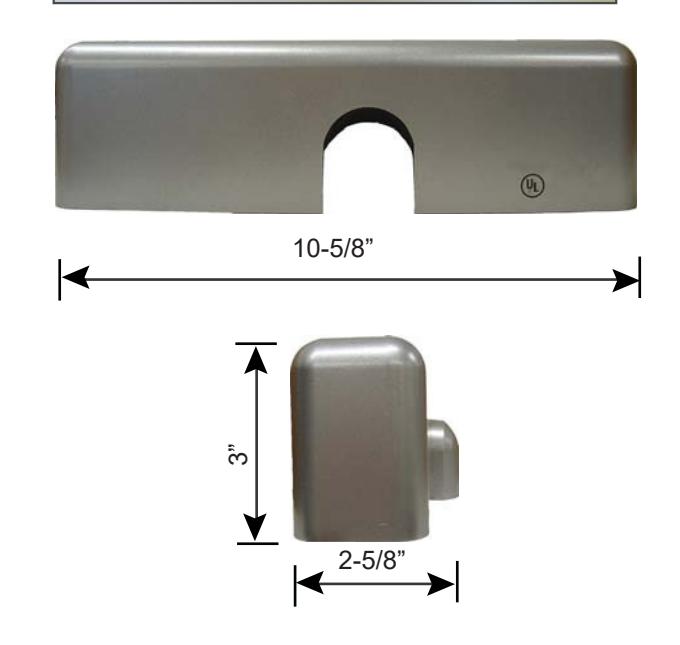

PDC-SLM-SLIM LINE COVER
17901 Railroad Street, City of Industry, CA 91748 Toll Free: 877-858-0888
Tel: 626-965-8917 Fax: 626-965-8919 www.townsteel.com
TDC-53/54 Door Closer
| Series | Finishes | ||
|---|---|---|---|
| TDC 53: Size 3 door closer | AL: Aluminum | ||
| TDC 54: Size 4 door closer | DU: Duro | ||
Order Sample
