T Strike Template
Open the original PDF document

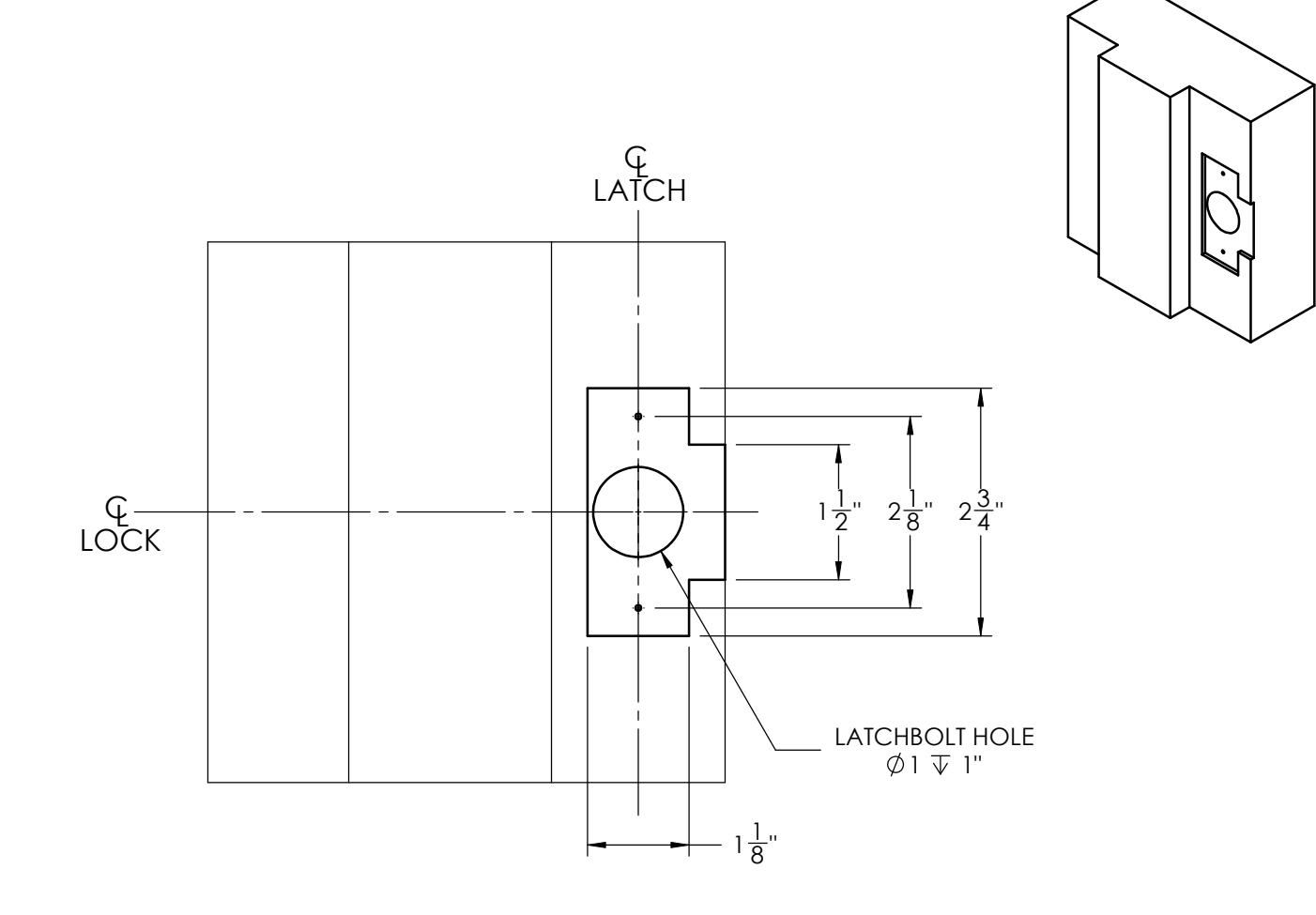

View PDFSTRIKE TEMPLATE: T-STRIKE
TEMPLATE: V32430, REV. 0 12-17-2010

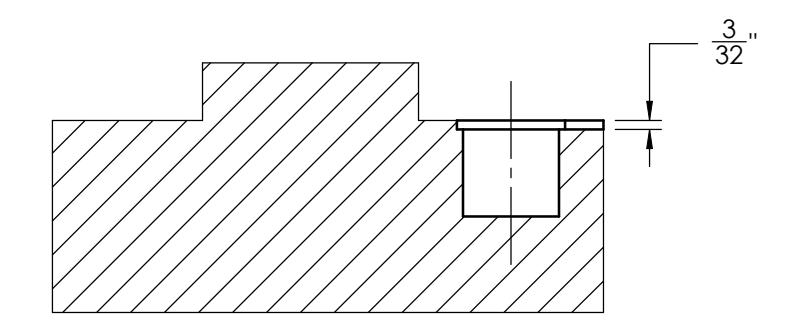

NOTE: 1. STRIKE LOCATION ON FRAMES MUST BE ADJUSTED FOR THICKNESS OF DOOR SILENCERS, WHEN USED.
PDQ Manufacturing 2754 Creek Hill Rd. Leola, PA 17540 800-441-9692 Fax: 717-656-6892 www.pdqlocks.com
| "" "paqioonoiooiii | |
|---|---|
| JOB: | |
| DATE: | |
| COMMENTS: | |
