T Option – Threaded Pivot Screw & Nylon Washer in Lieu of Jamb Bracket – Template

"T" SERIES OVERHEAD HOLDERS & STOPS

1000T/1000SLT/9000T/9000AT

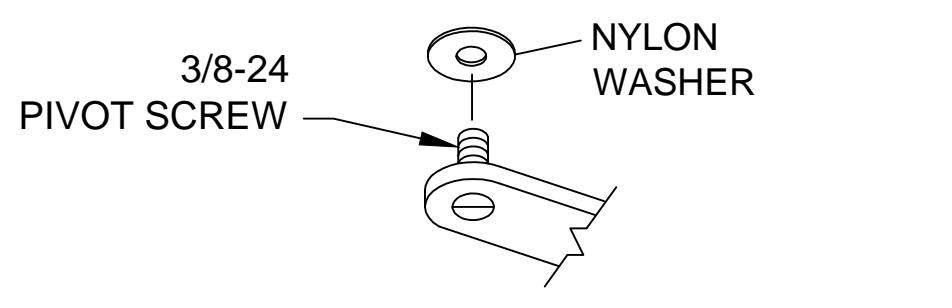

1000T, 1000SLT, 9000T 9000AT REPLACES THE JAMB BRACKET WITH A THREADED NYLOK JAMB PIVOT SCREW

DRILL & TAP FRAME FOR 3/8-24 MACHINE SCREW ADD 3/8" TO B DIMENSION ON STANDARD TEMPLATES

NOTE: 1/4" OR GREATER REINFORCEMENT RECOMMENDED

3300AT/4000T/4400T

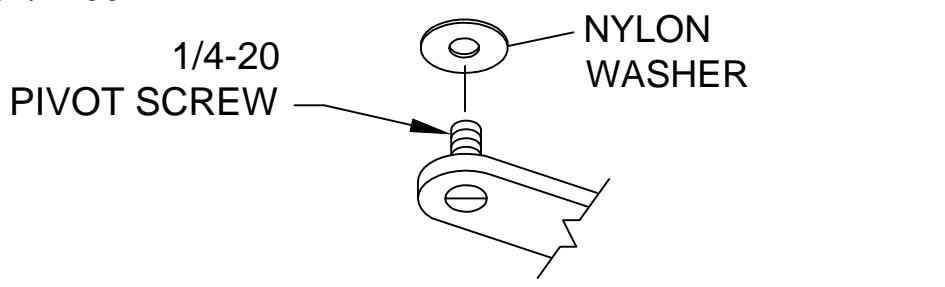

3300AT, 4000T & 4400T REPLACES THE JAMB BRACKET WITH A THREADED NYLOK JAMB PIVOT SCREW

ADD 3/8" TO B DIMENSION ON STANDARD TEMPLATES

DRILL & TAP FRAME FOR 1/4-20 MACHINE SCREW

NOTE: 1/4" OR GREATER REINFORCEMENT RECOMMENDED

NOTE:

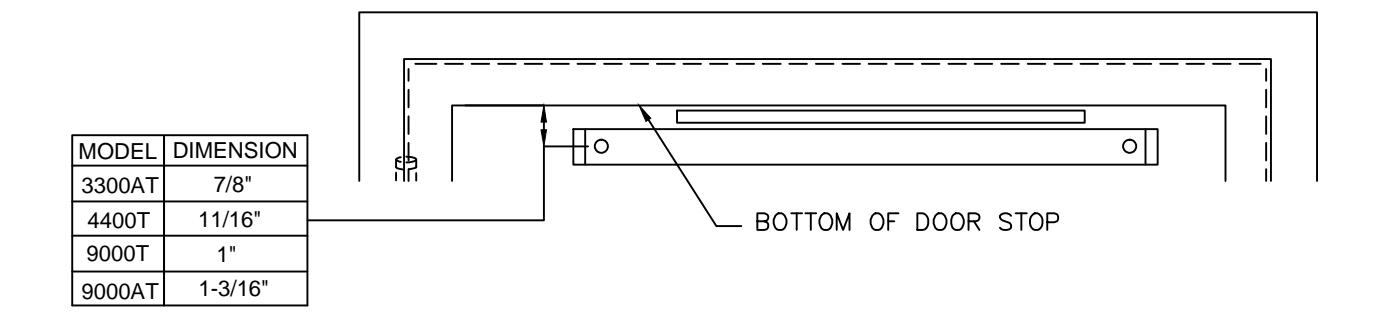

USING THE "T SERIES" SURFACE MOUNTED HOLDERS/STOPS ALTERS THE VERTICAL DIMENSION FOR MOUNTING THE CHANNEL TO THE DOOR. SEE CHART BELOW FOR PROPER DIMENSIONS.
