T-LS00179-Rev04

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR THE LATEST REVISION DATE OF TEMPLATE.

PRIMARY DIMENSIONS SHOWN IN INCHES, DIMENSIONS IN [] ARE MILLIMETERS.

HAGER

DRAWN MRJ 12/10/2007 ENG. APPR. - - MATERIAL Material <not specified> G.A. TOLERANCES: FRACTIONAL: ±0.015" ANGULAR: MACH: ±1 ° BEND: ±1 ° TWO PLACE DECIMAL: ±0.01" THREE PLACE DECIMAL: ±0.00"

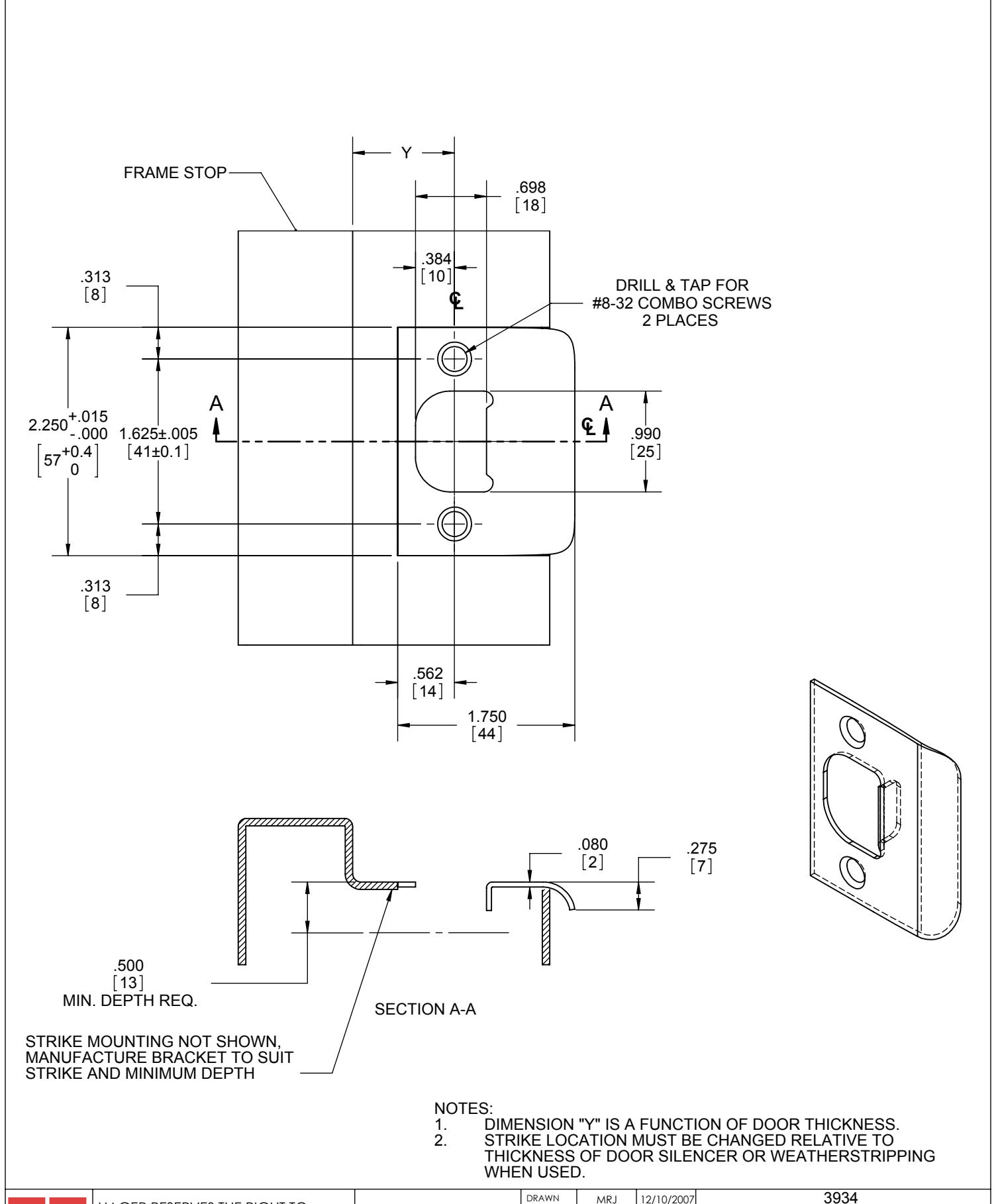

METAL JAMB TEMPLATE FOR 2500, 3400, 3500, AND 3600 SERIES LOCKS

SIZE DWG, NO. T-LS00179 SCALE:1:2 WEIGHT: 0.18 SHEET 1 OF 1
