T-LS00163-Rev03

NOTES:

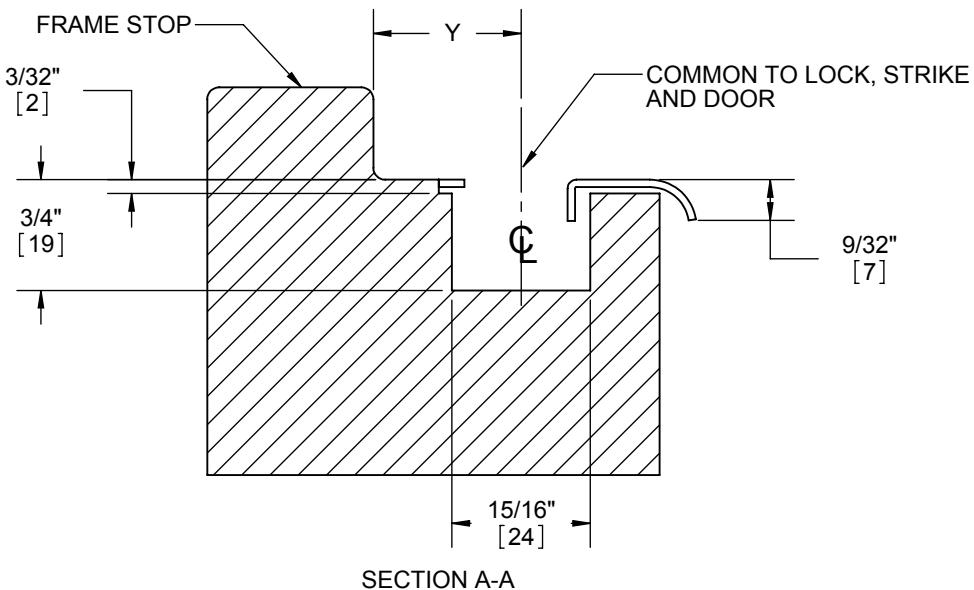

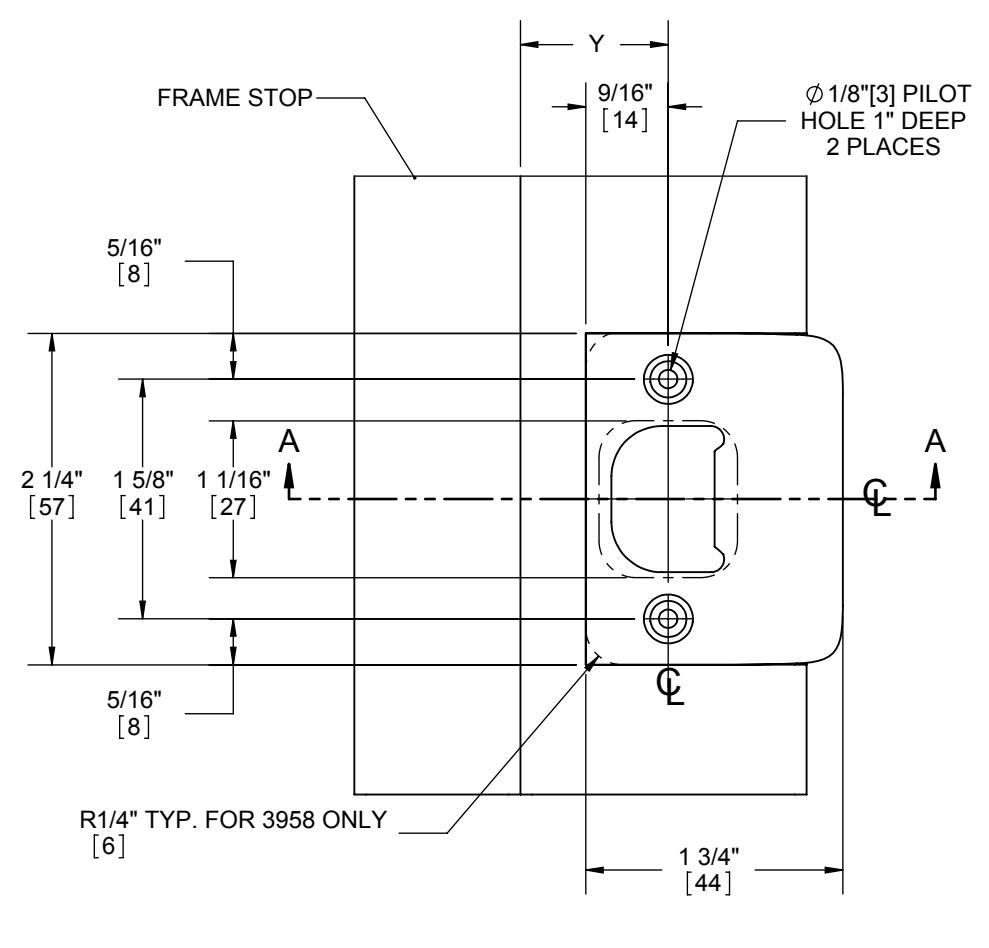

• DIMENSION "Y" IS A VARIABLE DEPENDING ON DOOR THICKNESS. STRIKE LOCATION MUST BE CHANGED RELATIVE TO
• STRIKE LOCATION MUST BE CHANGED RELATIVE TO THICKNESS OF DOOR SILENCER OR WEATHERSTRIPPING WHEN USED.
