T-LS00162-Rev06
Open the original PDF document

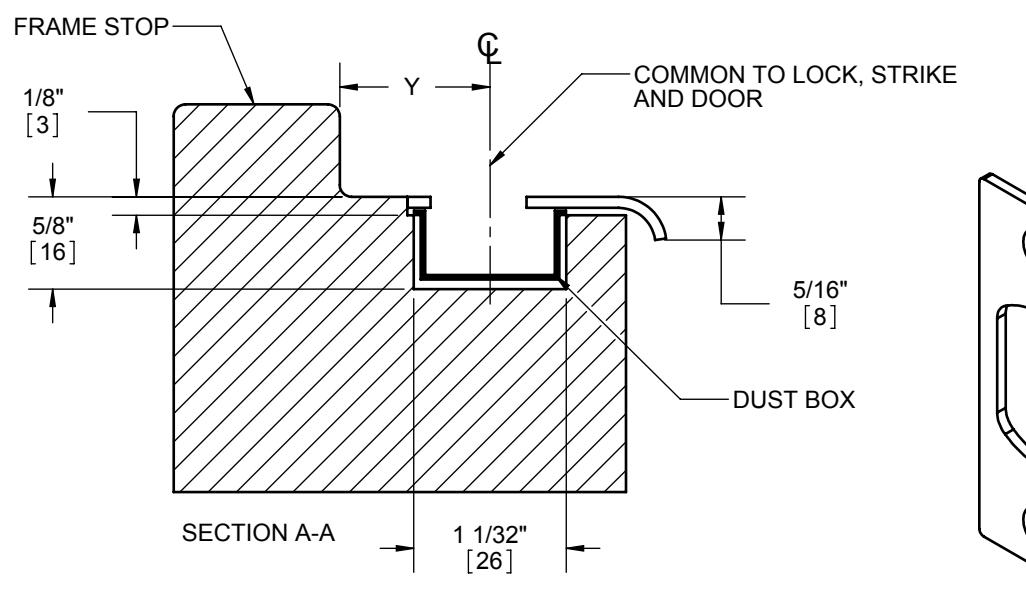

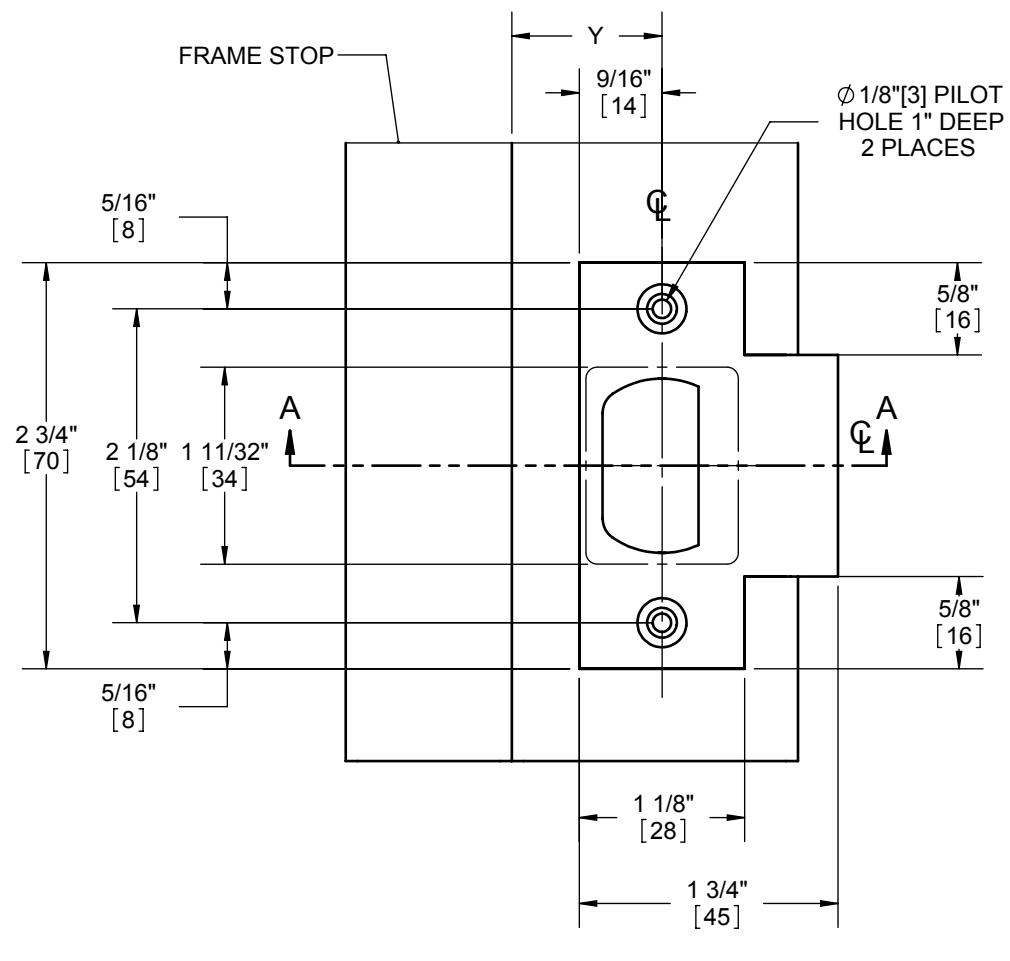

View PDF3933 T-STRIKE WOOD JAMB PREP TEMPLATE
NOTES:
- 1. DIMENSION "Y" IS A VARIABLE DEPENDING ON DOOR THICKNESS.
- 2. STRIKE LOCATION MUST BE CHANGED RELATIVE TO THICKNESS OF DOOR SILENCER OR WEATHERSTRIPPING WHEN USED.
| TEMPLATE NO: | DRAWING NO: T-LS00162 | REV: 06 | SHEET 1 OF 1 |
| HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 - (800) 325-9995 - Fax (800) 782-0149 | |||
