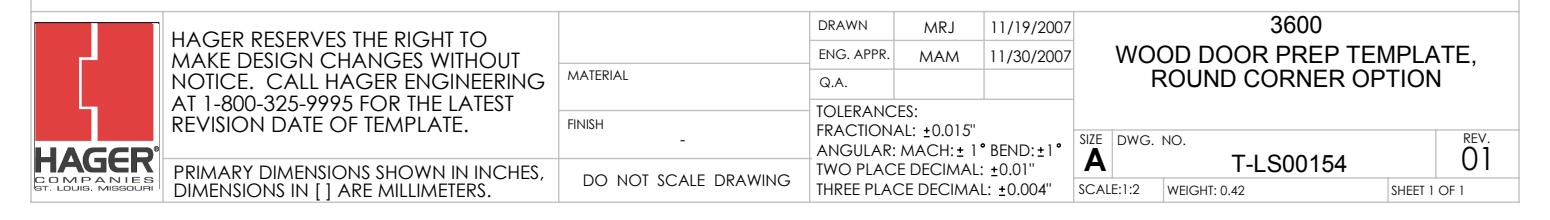

T-LS00154-Rev01

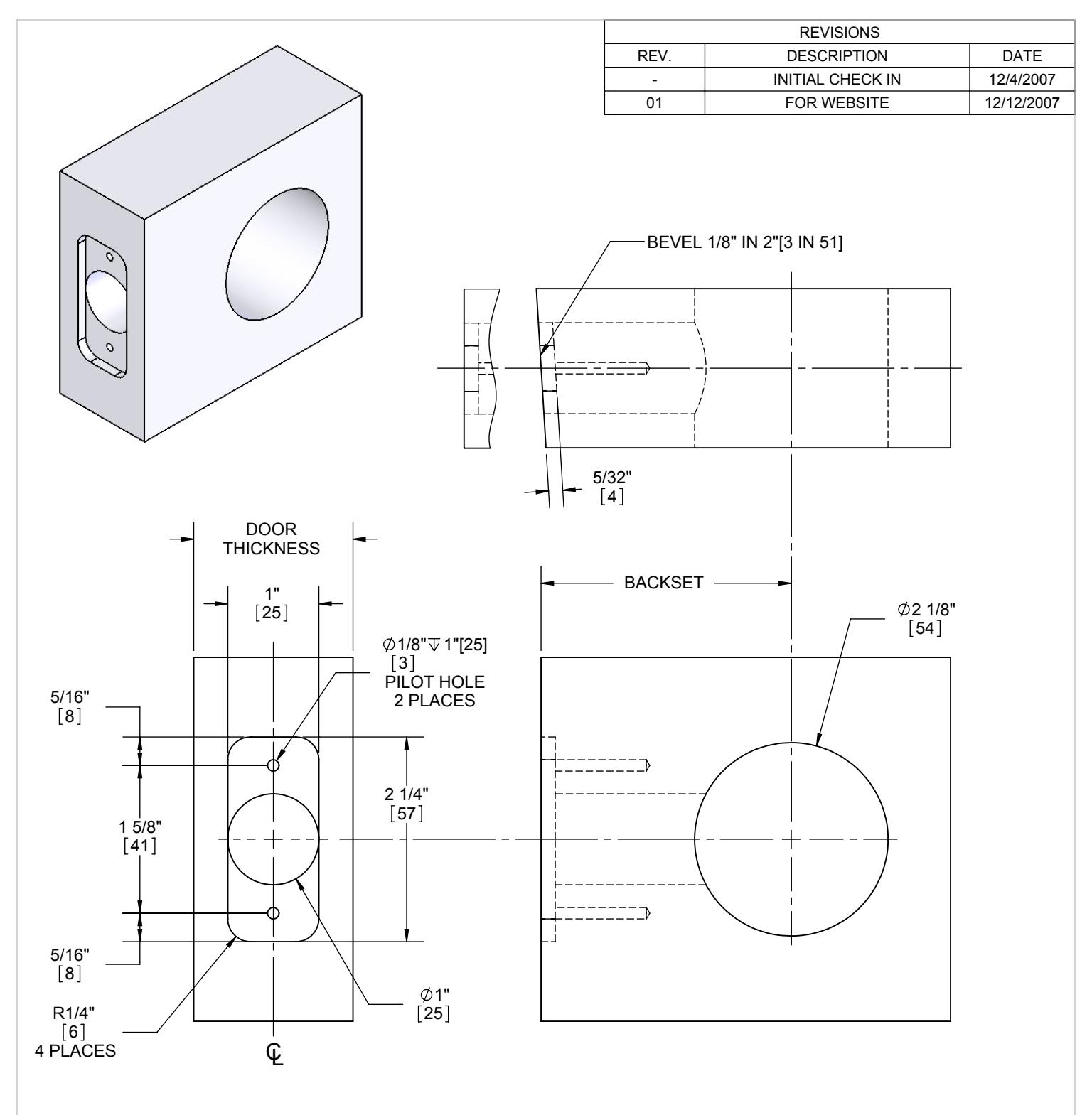

DOOR TYPE: WOOD OR COMPOSITE, FLAT OR BEVELED

DOOR THICKNESS: 1 3/8"[35] - 1 3/4"[45] FACEPLATE: 1/4"R, 1"[25] WIDTH

BACKSETS: ADJUSTABLE FOR 2 3/4"[70] OR 2 3/8"[60], 5"[127] OPTIONAL

DIMENSIONS IN [] ARE IN MILLIMETERS
