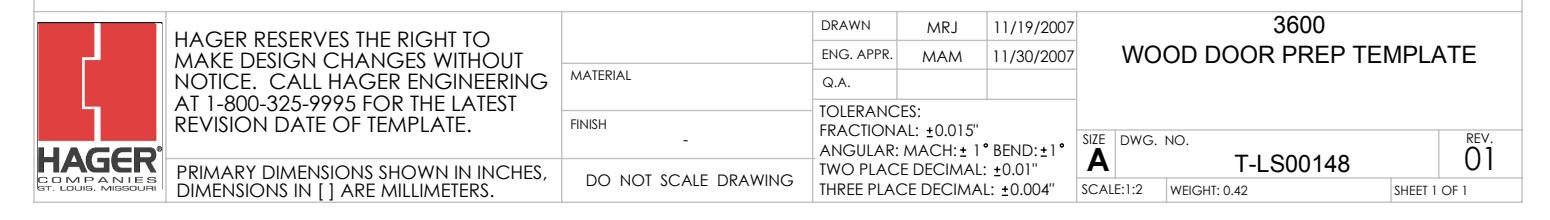

T-LS00148-Rev01

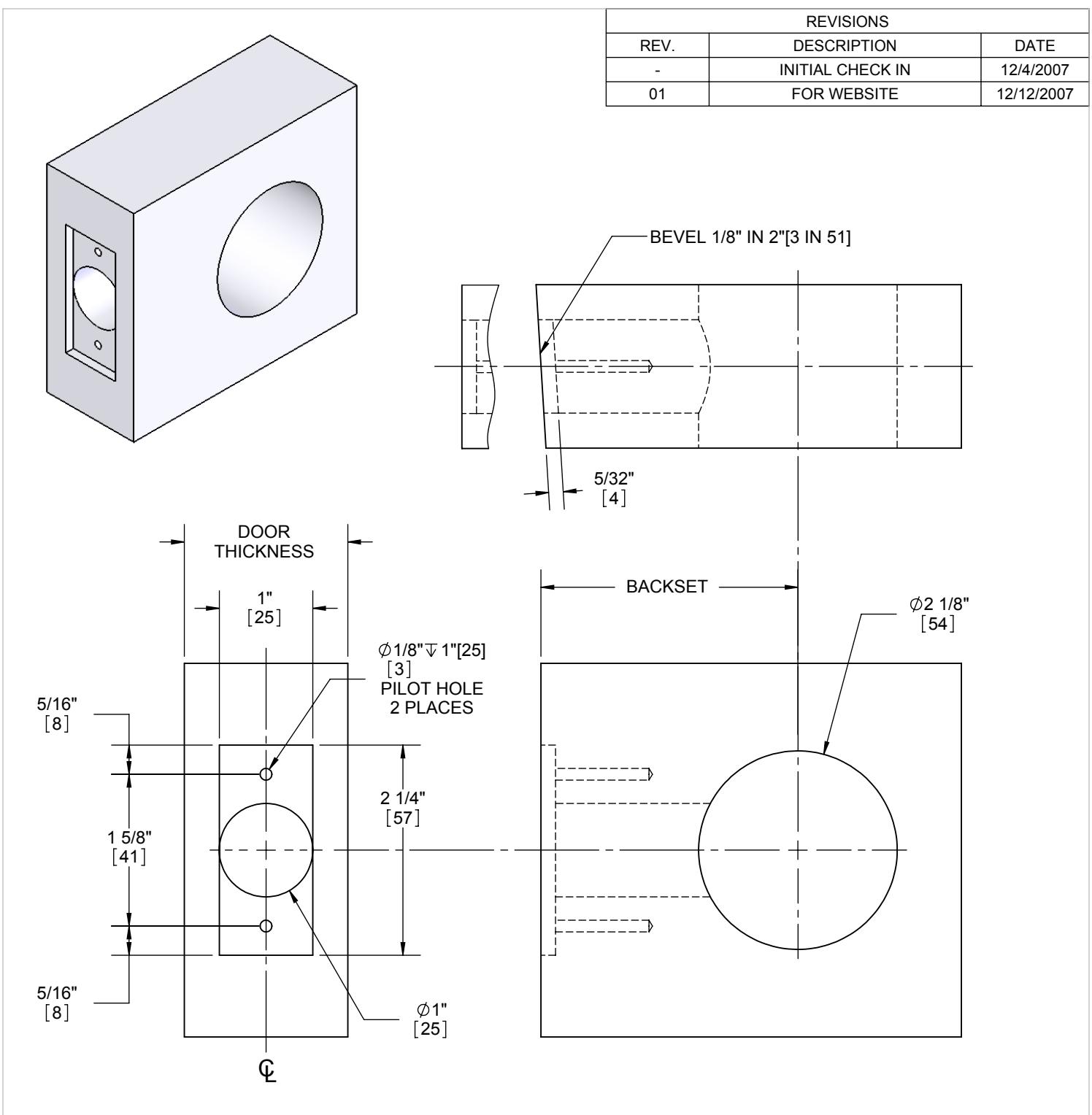

DOOR TYPE : WOOD OR COMPOSITE, FLAT OR BEVELED

DOOR THICKNESS: 1 3/8"[35] - 1 3/4"[45] FACEPLATE: SQUARE 1"[25] WIDTH

BACKSETS: ADJUSTABLE FOR 2 3/4"[70] OR 2 3/8"[60], 5"[127] OPTIONAL

DIMENSIONS IN BRACKETS [] ARE IN MILLIMETERS
