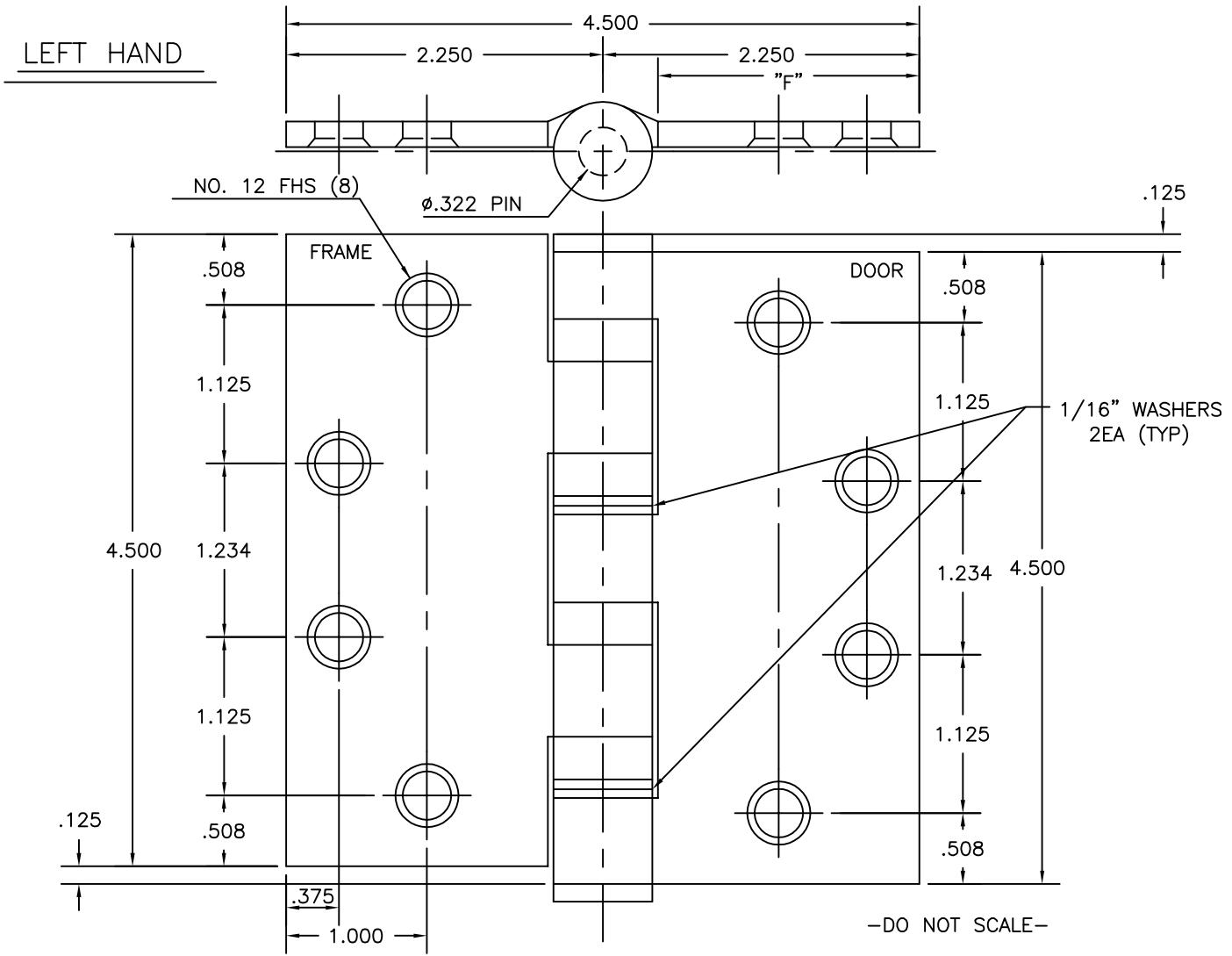

T-Drop Leaf Left Hand t-dropleaflh

Open the original PDF document

View PDF

4 \frac{1}{2} \times 4 , 4 \frac{1}{2} \times 4 \frac{1}{2} , 4 \frac{1}{2} \times 5 , 4 \frac{1}{2} \times 6 , SIZES: 4 1/2 x 7, 4 1/2 x 8

CATALOG NUMBER (F) DI STANCE FR ROM EDGE OF LEAF TO SWAGE LINE
STEEL
HINGES 		NON-
FERROUS
HINGES 		METAL
GAUGE 		(E)
KNUCKLE
DIAMETER 		4 1/2 x 4 1/2 x
4 1/2 		4 1/2 x
5 		4 1/2 x 4 1/2 x 4 1/2 x
8
700 800 .134 39/64 1 5/8 1 7/8
1279 1191 .134 39/64 1 5/8 1 7/8 2 1/8 2 5/8 3 1/8 3 5/8
AB700 AB800 .134 39/64 1 5/8 1 7/8
BB1174 BB1193 .134 39/64 1 3/8 1 5/8
BB1279 BB1191 .134 39/64 1 5/8 1 7/8 2 1/8 2 5/8 3 1/8 3 5/8
AB750 AB850 .180 45/64 1 9/16 1 13/16 2 1/16 2 9/16 3 1/16 3 9/16
BB1168 BB1199 .180 45/64 1 9/16 1 13/16 2 1/16 2 9/16 3 1/16 3 9/16

ALL DIMENSIONS ARE IN INCHES.

Wood Screw Size- No. 12 x 1 1/4" F.H. Machine Screw Size- 12-24 x 1/2" F.H. Hospital type and round corner template hinges conform to the above screw size and location. They are designated by "HT" and "RC" to catalog number.

Hager template hinges are made in size, gauge and with screw holes located

to conform to ANSI-A156.7.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.

HAGER COMPANIES 139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300

「emplate No. T—DROP LEAF
