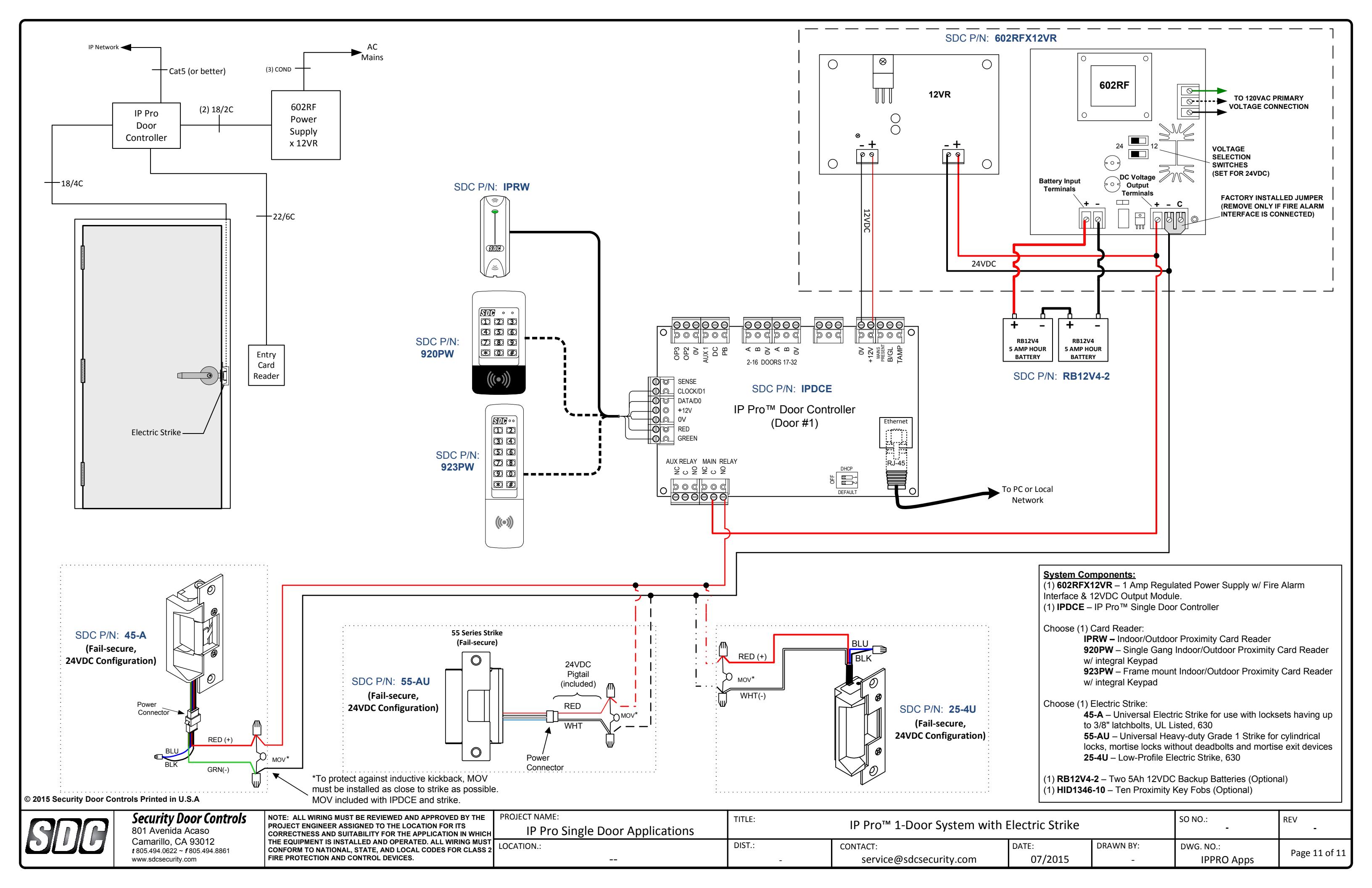

System Design for Single Door Electric Strike

IP Pro™ Access Control Solution

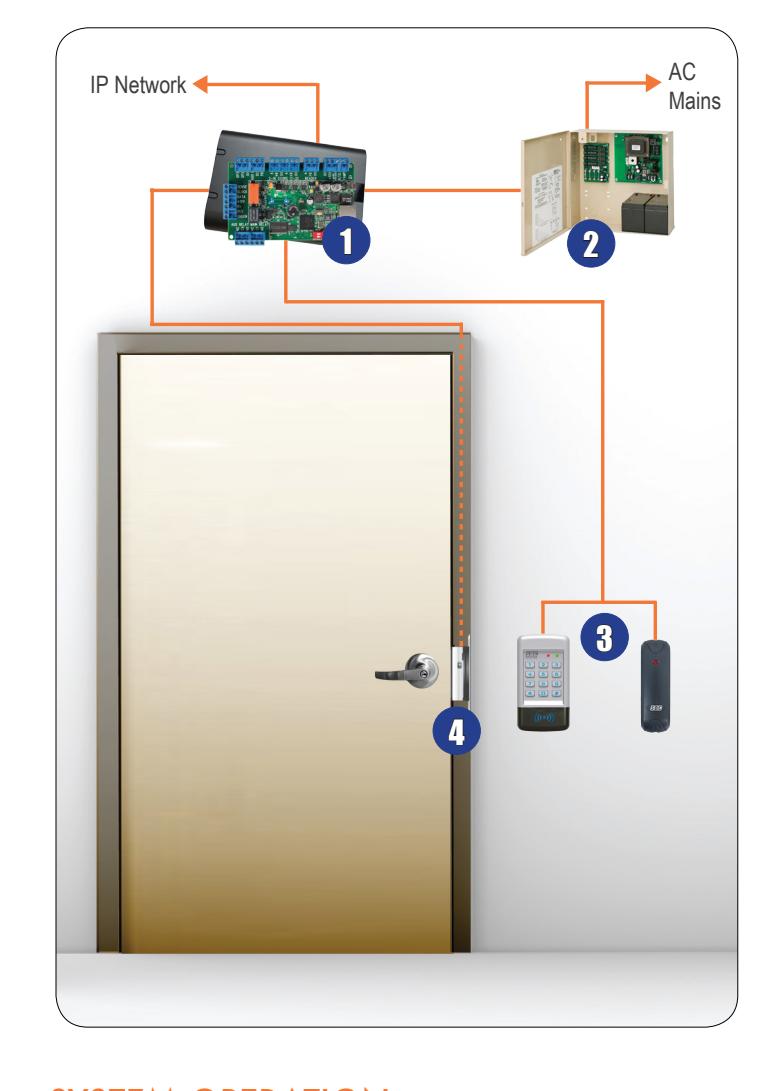

Single Door Electric Strike Application

IPDCE

OPTIONAL BATTERY BACKUP RB12V4-2

Wiegand Reader Options (Choose one): Prox Reader or Keypad-Prox Combo

OPTIONAL CREDENTIALS Fobs - HID1346-10 Cards - HID1326-25

45-A

25-4U

55-ABCU

SYSTEM OPERATION

Door is normally closed and secured by an electrified lockset.

Authorized Access: Presenting a valid card or entering a valid user code on the reader will momentarily unlock the door for access. The unlock time will be configured by the access control programming. The door may also be programmed for maintained access.

Authorized Egress: Free egress is available at all times by turning the inside lever, retracting the latchbolt, and opening the door.

Emergency Override: The door may be accessed by key override.

Low Voltage: System is powered by a regulated & filtered power supply with 12VDC output for access control equipment and 24VDC output for locking hardware to maximize efficiency. Loss of power will result in unsecure door, unless equipped with optional battery back-up.

IP-based Access Control: User-friendly programming

interface via a built-in web server, accessible from any networked PC.
