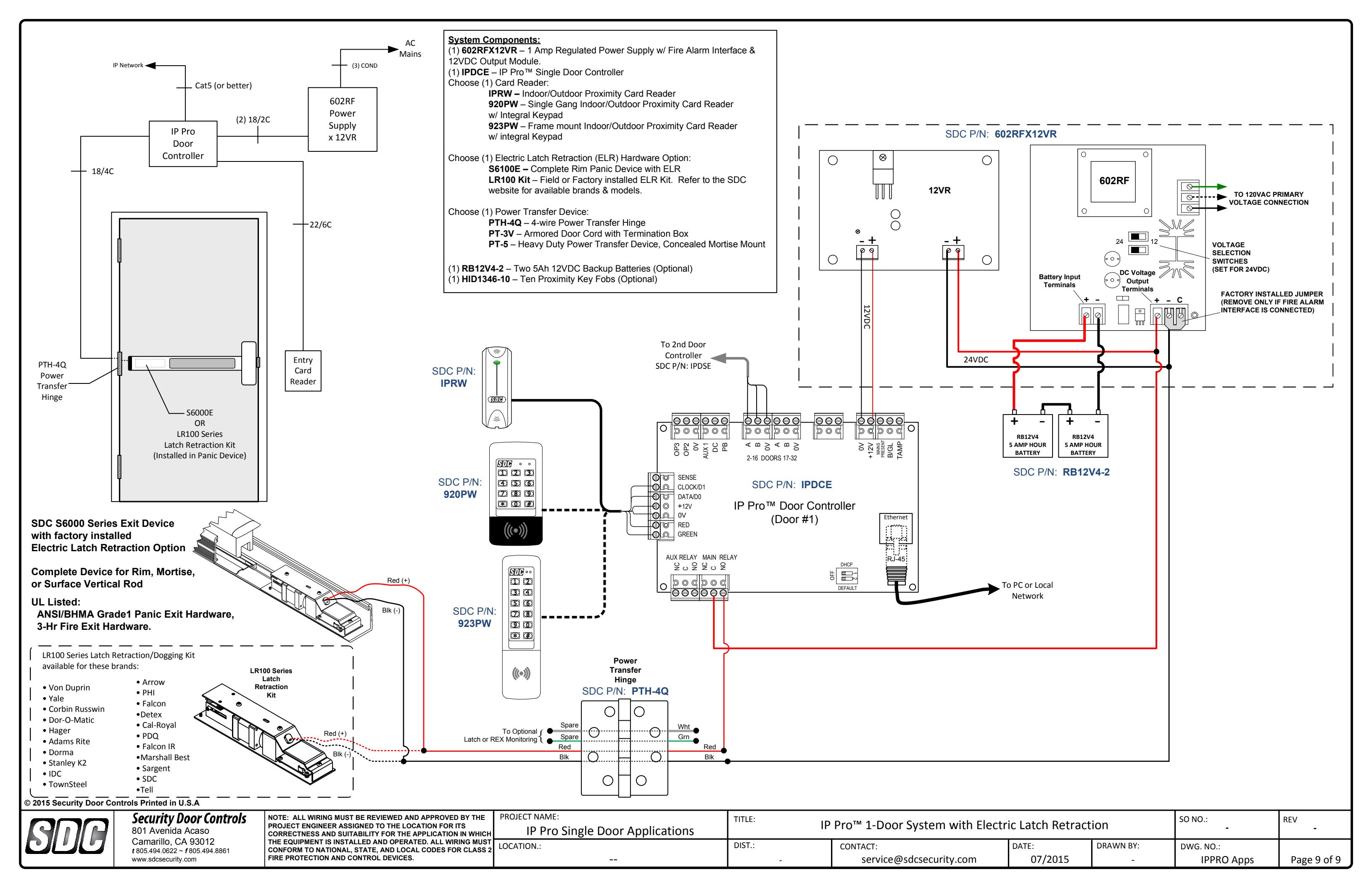

System Design for Single Door Electric Latch Retraction

IP Pro™ Access Control Solution

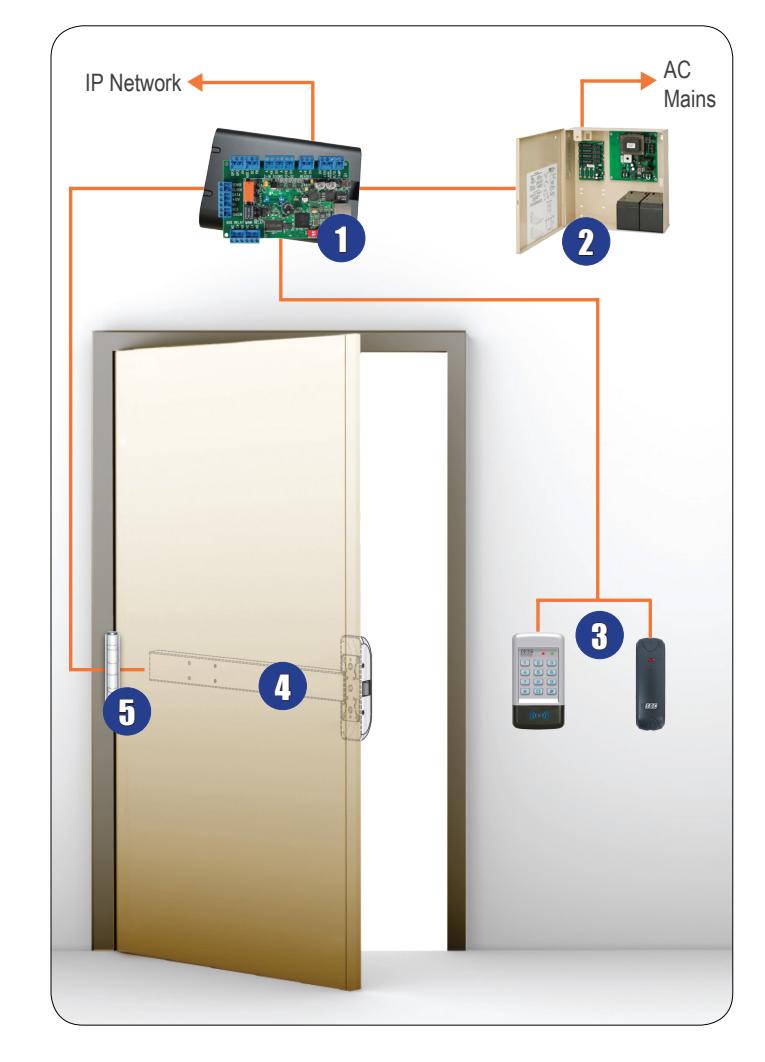

Single Door Electric Latch Retraction Application

IPDCE

Power Supply (1) LISTED 12 and 24VDC Output

OPTIONAL BATTERY BACKUP RB12V4-2

Wiegand Reader Options (Choose one):

OPTIONAL CREDENTIALS Fobs - HID1346-10 Cards - HID1326-25

LR100 Kit

Power Transfer Device (Choose one): Wire Transfer Hinge or Loops

SYSTEM OPERATION

Door is normally closed and secured by an exit panic device.

Authorized Access: Presenting a valid card/fob or entering a valid user code on the keypad will momentarily retract the latch on the exit device, permitting access. The unlock time will be configured by the access control programming. The door may also be programmed for maintained access (dogging).

Manual Override: Key override is available from the unsecure side via optional active trim.

Authorized Egress: Free egress is available at all times by pressing the exit device pushpad, retracting the latch, and opening the door.

Low Voltage: System is powered by a regulated & filtered power supply with 12VDC output for access control equipment and 24VDC output for locking hardware to maximize efficiency.

IP-based Access Control:

User-friendly programming interface via a built-in web server, accessible from any networked PC.

S6100E
