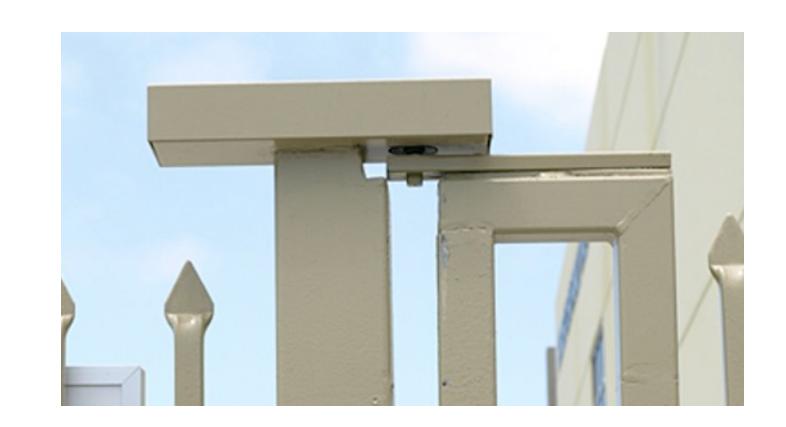

SWINGER 300 HYDRAULIC PEDESTRIAN GATE CLOSER

Tough, Dependable and Vandal Resistant.
2" x 4" x 12" 16 gauge galvanized Steel housing.
Gate closer manufactured for pedestrian gates.
Two Separate Closing and Latching valves adjustable after installation without removing the closer.
Adjustable spring power to accommodate various size gates.
Non Handed (right or left swing).
Opens to full 105 degrees.
Fully adjustable top arm for proper gate alignment.
Adjustable zinc plated Bottom Hinge with sealed ball bearings rated for 350 lbs. Slotted Yoke for Adjustability.
Designed to close gate into its latch position without slamming.
Smooth operation.
Factory tested to over 1,000,000 cycles.

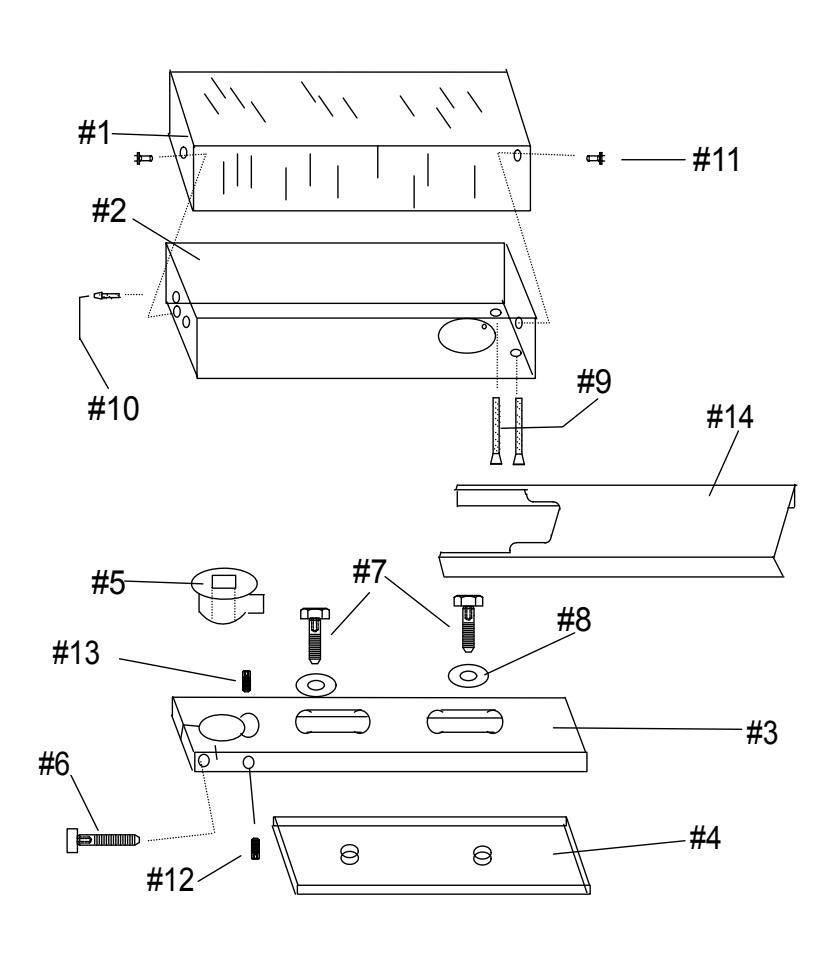

Item	Description	Quantity	Part #
1	Housing Cover	1	311-LBC
2	Housing Box	1	311-BC
3	Arm	1	311-GB
4	Steel Plate	1	311-SP
5	Bushing	1	311-BB
14	U-Channel Arm cover	1	311-UC
15	Single Bearing Hinge (Not shown)	1	311-BH
16	Hydraulic Closer (Not shown)	1	311RVLS
311 SW Screw Package Kit
6	¼-28x1" Socket head cap screw	1
7	3/8-24 x ½" #5 Hex head bolt	2	311-SW
8	3/8" USS-SAE Flat washer	2
9	¼-20 x 1-1/4" Flathead screws	2
10	¼-20 x ½" Button head screws	2
11	10-32 x ¼" Button head screw	2
12	¼-20 x 5/8" Socket set screw	1
13	¼-20 x 1/2" Socket set screw	1
