Surface Applied Escutcheon Plate Trim – Wood or H.M. Door_7086-1301

Yale® and Symphony® are registered trademarks of Yale Security Inc., an ASSA ABLOY Group company. Copyright © 2004, 2013, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.

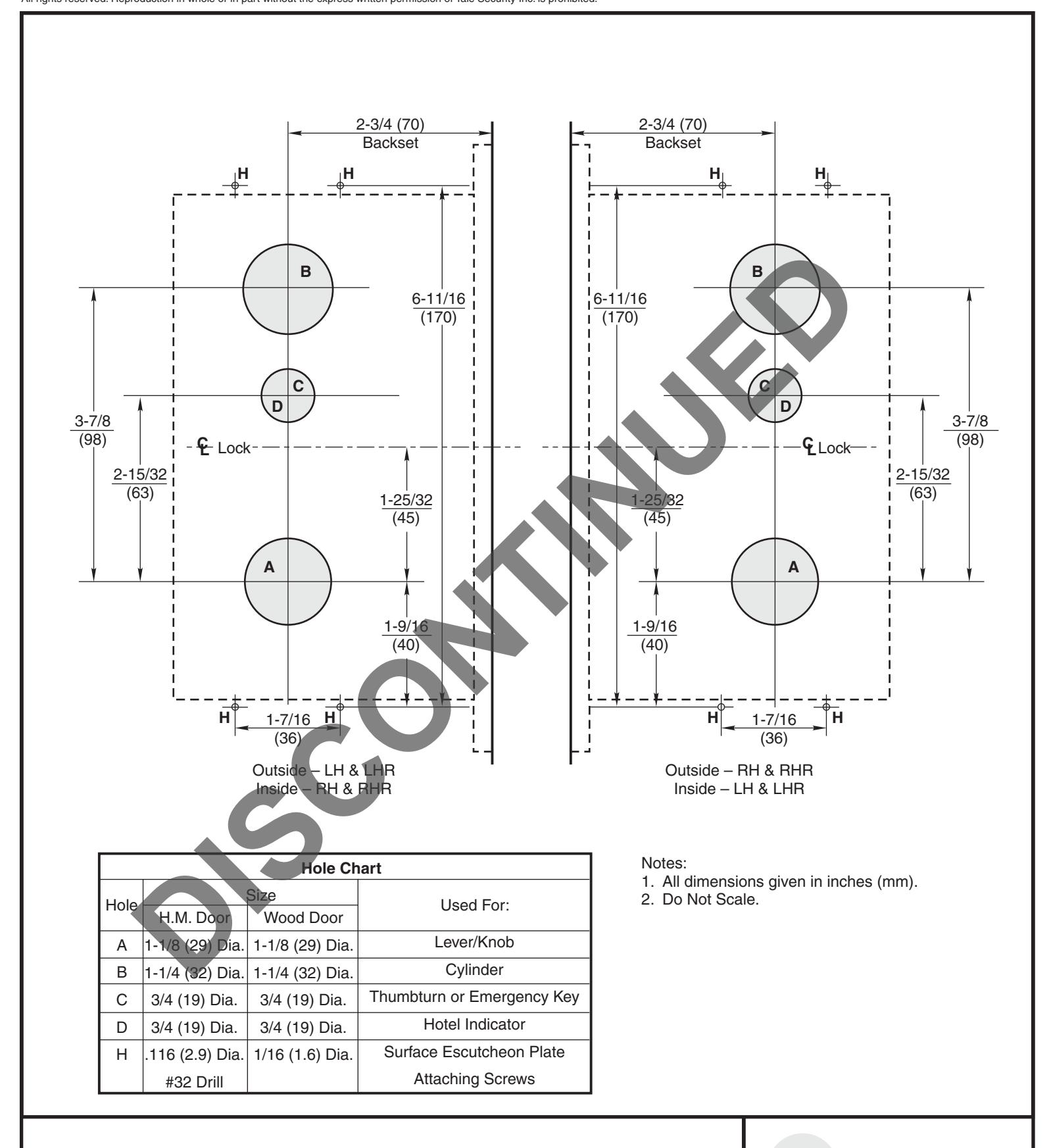

All Series Mortise Locks Wood and H.M. Door Preparation Surface Applied Escutcheon Plate Trim

An ASSA ABLOY Group brand ASSA ABLOY

		Lock Function					Holes in Door
	4600	8600	8700	8800		Outside	Inside
	4601	8601	8701	8801
			8770DT	8870DT
			8771DT	8871DT
			8772DT	8872DT		A, H	A, H
	4680	8680	8780	8880
	4681	8681	8781	8881
	4684	8684	8784	8884
			836A & B	836A & B
			838A & B	838A & B
	4602	8602	8702	8802	8865	A, C, H	A, C, H
	4605	8605	8705	8805
	4607	8607	8707	8807
	4608	8608	8708	8808		A, B, H	A, H
	4624	8624		8824
				8831
	4690	8690	8790	8890		A, B*, H	A, B*, H
	4691	8691	8791	8891
			8717-2	8808-2	8830-2
			8730-2	8811-2	8860-2
	4660-2	8660-2	8760-2	8812-2	8894-2	A, B, H	A, B, H
	4694-2	8694-2	8794-2	8817-2	8895-2
	4695-2	8695-2	8795-2	8818-2
	4620	8620	8720	8820		A, B, D, H	A, C, H
			8727	8827
	4622	8622	8722	8822	8861
	4632	8632	8732	8832	8867
		8647	8747	8840	8809	A, B, H	A, C, H
	4660	8660	8760	8847
	4667	8667	8767	8860
			8728	8828		None	A, H
		8633		8833		B, H	A, H
		8634		8834
		8634-2		8834-2		B, H	A, B, H
					8833-2
						B, H	B, H
* Lock can be mounted with cylinder outside or inside. Check for proper application.				8813
				8815		B, H	C, H
				8814		B, H	None
				8823	8829	A, B, H	None
				8835		None	A, C, H

All Series Mortise Locks Wood and H.M. Door Preparation Surface Applied Escutcheon Plate Trim

05-13 TEMPLATE NUMBER DATE 7086-1301 2 of 2 SHEET
