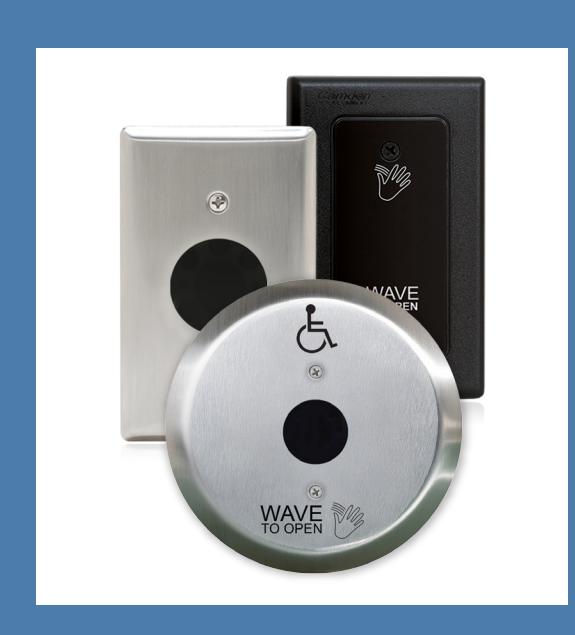

CM-336 Series Battery Powered Touchless Switches

The SureWave™ family of touchless switches by Camden lead the industry in performance, quality and value - with a range of features unmatched by any other on the market.

CM-336 touchless switches offer the longest battery life, up to 100 activations per day for 4 years, with an option for even longer battery life using lithium batteries.

SureWave™ CM-336 wireless switches are compatible with Camden's Lazerpoint RF™ family of 915Mhz. spread spectrum wireless products.

CM-336 APPLICATION

Battery Powered

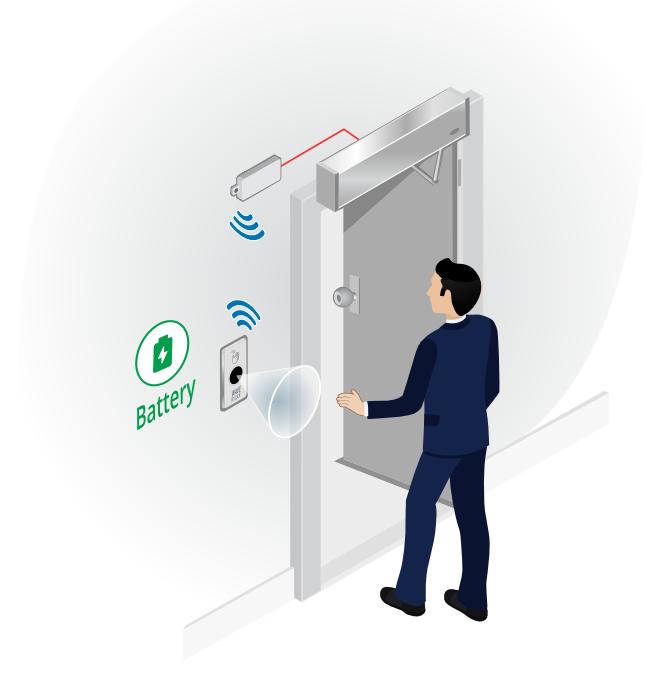

Ideal for door activation where installing wiring is difficult or expensive, and for instant replacement of non-powered switches in retrofit applications.

These switches offer the longest alkaline battery life of any switch in the market, with the option for lithium batteries.

SPECIFICATIONS

NO. OF IR SENSORS: 1

BATTERIES: (2) 'AA' ALKALINE (SUPPLIED)

(2) 'AA' LITHIUM BATTERIES (OPTIONAL)

ESTIMATED BATTERY LIFE: 4 YEARS (BASED ON 100 OPERATIONS/DAY)

LOW BATTERY ALARM: YES BATTERY TEST GAUGE: YES

STANDARD OPERATING RANGE: 1"- 12" (25.4MM - 304MM)

OPERATING MODE: MOMENTARY

BUILT-IN 915MHZ. SPREAD SPECTRUM WIRELESS TRANSMITTER

INPUT: REQUEST TO EXIT OR EXTERNAL (DOOR CONTACT)

MODELS

CM-336 Battery Operated Wireless Touchless Switch (receiver required)

OPTIONAL FACEPLATE MATERIAL ( Supplied Black Polycarbonate Standard )

S Stainless Steel Faceplate

OPTIONAL BATTERIES ( 2) 'AA' ALKALINE SUPPLIED

-L1 Add suffix '- L1' for (2) 'AA' Lithium Batteries in place of (2) Alkaline

CM-LP1 (2) 'AA' Lithium Battery Pack

FACEPLATE SIZES ( Supplied Single Gang Standard)

Single Gang Compatible surface mount box CM-34BL

/N - Narrow 2-1/16" deep narrow jamb surface mount box CM-23DSER

/W - Double Gang Compatible surface mounting box CM-43CBLA

/R - 6" Round Stainless steel only. Indoor use only. Compatible surface box CM-69SER

1-3/4" (45mm) 4" (101mm) FRONT VIEW 2-1/4" (57mm) 1-3/8" (35mm) 2-3/4" (70mm) 1" (25mm) 5/8" (16mm) SWITCH DIMENSIONS

OPTIONAL FACEPLATE GRAPHICS

( Supplied Blank Standard )

SIDE VIEW

Add 'F' to graphic option for French language

OPTIONAL RECEIVERS

CM-	RX9

CM-RX90 V2 Lazerpoint RF™ single relay receiver,

CM-RX92 Lazerpoint RF™ dual relay receiver, 12/24V AC/DC

For a complete list of all SureWave™ Touchless Switch Kits, please visit www.camdencontrols.com
