CM-324, CM-325 1 Relay Touchless Switches

The SureWave™ family of touchless switches lead the industry in selection, quality and performance.

CM-324 and CM-325 touchless switches provide economical and reliable door activation command while eliminating the spread of germs and adding convenience.

These hands-free switches feature an adjustable operating range of 1-30", adjustable time delay of 1-5 seconds, and provide superior performance in all ambient lighting conditions.

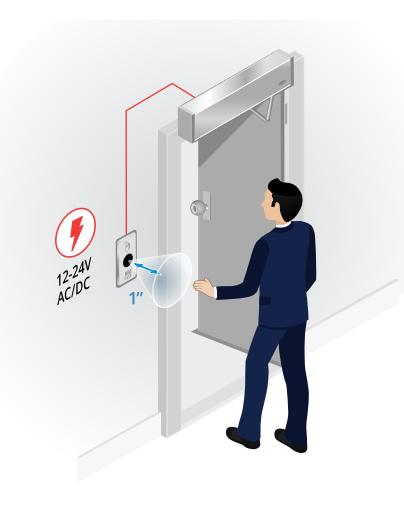

324 APPLICATION

1 Relay, Line Powered

Ideal for economical door activation where a door or locked status indicator is not required.

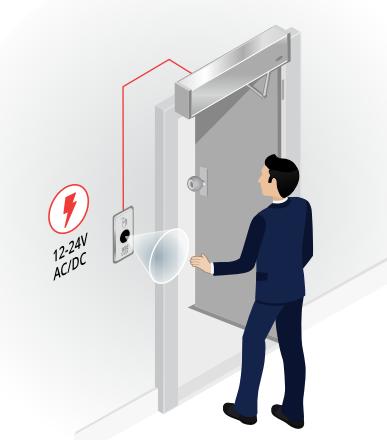

325 APPLICATION

1 Relay, Short Range

Ideal for short range sensing in confined areas (such as in restrooms) and to resist false activation due to highly reflective surfaces (typically found in health care facilities).

SPECIFICATIONS

NO. OF SENSORS: (2) CM-324

(1) CM-325

OPERATING VOLTAGE: 12-24 VOLTS, AC/DC ± 12%

CURRENT DRAW: 60mA RESPONSE TIME: 100ms

ACTIVATION RANGE: 1"- 3" (25MM – 75MM) MINIMUM

1"- 26" (25MM – 660MM) MAXIMUM

IMMUNITY: 11" (457MM) MIN. FROM REFLECTIVE SURFACE

OPERATING TEMPERATURE: -4ºF TO +153ºF (-20ºC TO +85ºC)

RELAY OPERATING MODES: PULSE (SENSE) / TOGGLE RELAY OUTPUT: (1) FORM 'C' (SPDT) RELAY CONTACT RATING: 5 AMPS @ 30 VDC TIME DELAY: 1 OR 5 SECONDS

OUTPUT TYPE: FAIL SAFE / NON-FAIL SAFE ELECTRICAL LIFE: 100,000 OPERATIONS

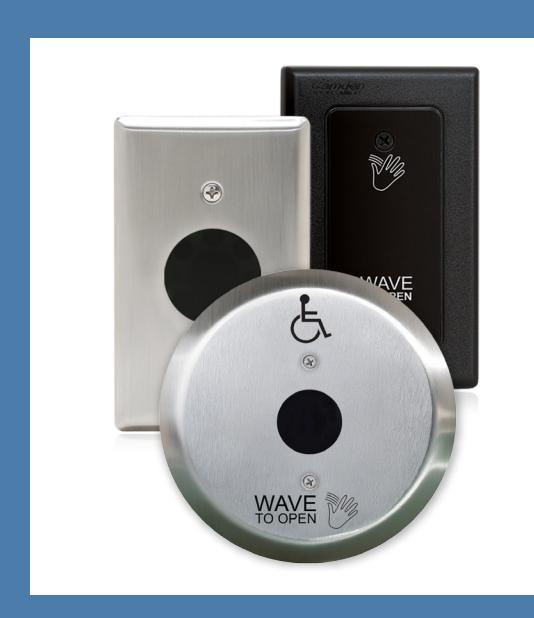

MODELS CM-324 Economical Touchless Switch, Line Powered, 1 Relay CM-325 'Short Range' Touchless Switch, Line Powered, 1 Relay

OPTIONAL FACEPLATE MATERIAL ( Supplied Black Polycarbonate Standard )

S Stainless Steel Faceplate

OPTIONAL FACEPLATE SIZE ( Supplied Single Gang Standard)

Single Gang Compatible surface mount box CM-34BL

/N - Narrow Compatible narrow jamb surface mount box CM-23D

/W - Double Gang Compatible surface mounting box CM-43CBLA

/R - 6" Round Stainless steel only. Indoor use only. Compatible surface box CM-69SER

For a complete list of all SureWave™ Touchless Switch Kits, please visit www.camdencontrols.com
