SureWave, ValueWave Product Comparison Chart
Open the original PDF document
View PDF

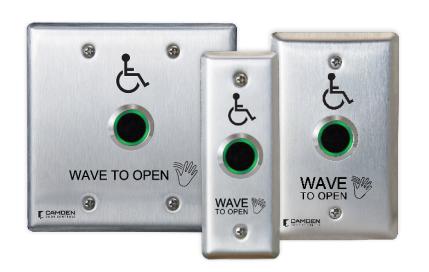

CAMDEN 1 RELAY TOUCHLESS SWITCHES
| DESCRIPTION |
VALUEWAVE™
CM-221 |
SUREWAVE™
CM-324 |
SUREWAVE™
CM-331 |
|---|---|---|---|
| Technology | Active Infrared | Active Infrared | Active Infrared |
| Voltage | 12 - 24 VDC | 12 / 24V AC/DC | 12 / 24V AC/DC |
| Current Draw | 45mA (peak) | 48mA (peak) | 40mA (peak) |
| Range | 2" - 8" | 1" - 26" | 1" - 28" |
| Adjustable Hold Time | 0.5 - 20 seconds | 1 - 5 seconds | 1 - 30 seconds |
| Red / Green Light Ring | Yes, Built-In | No | Optional, SGLR |
| Operating Modes | Sense / Toggle | Sense / Toggle | Sense / Toggle |
| Fail-Safe Mode? | No | Yes | Yes |
|
Presence Detection with
Non-Moving Object |
Yes | Yes | Yes |
| Faceplate Sizes Available | Jamb, 1 & 2 Gang | Jamb, 1 & 2 Gang | Jamb, 1 & 2 Gang |
| Number of Graphic Options | 2 | 6 | 6 |
| Relay Output | Form 'C' | Form 'C' | Form 'C' |
| Relay Contact Rating | 1 Amp | 5 Amps | 3 Amps |
| REX Input | No | No | Yes |
| Optional Wireless Module | No | No | Yes, Lazerpoint RF |
| Temp Rating | 14ºF to +122ºF (-10 to +50ºC) | -4 to +153ºF (-20 to +85ºC) | -4 to +153ºF (-20 to +85ºC) |
| Gasket Included | Yes | Yes | Yes |
