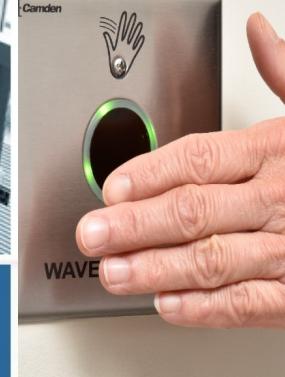

TOUCHLESS SWITCHES Options & Applications

EXCLUSIVE IN THE INDUSTRY

CM-331

1 Relay switch with built-in door control (REX and contact inputs)

CM-332

2 Relay touchless switch with built-in door sequencing

CM-333

Hybrid battery powered model with wired relay

CM-336

Battery powered wireless touchless switch with 4-year battery life

CM-331 & 332

Line powered switches with option for plug in wireless transmitter CM-325

Short range touchless switch with immunity to reflective surfaces

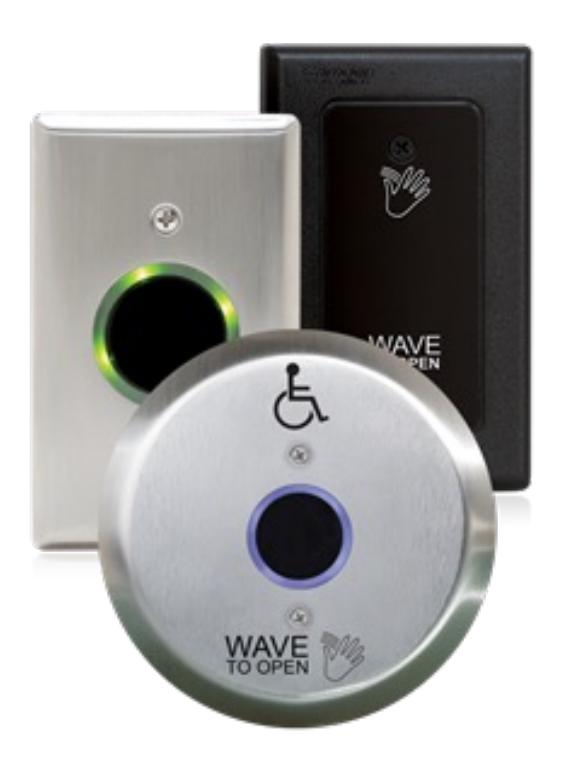

FACEPLATE OPTIONS – ALL MODELS

Black Polycarbonate or Stainless Steel

Narrow

Single Gang

Double Gang

6" Round SS

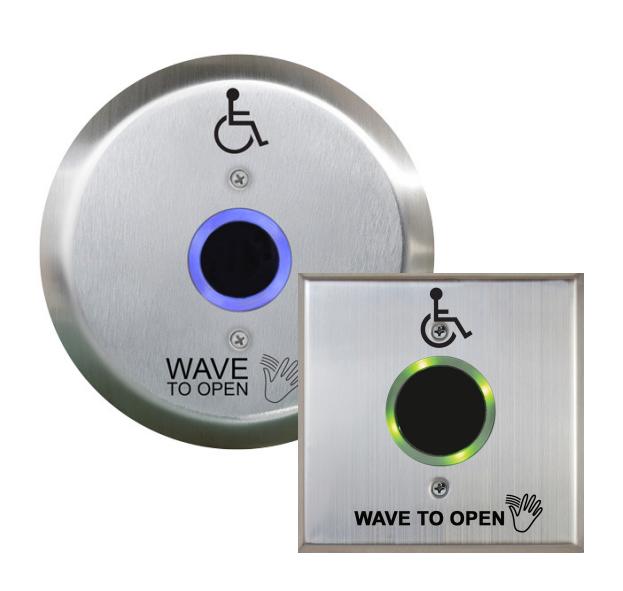

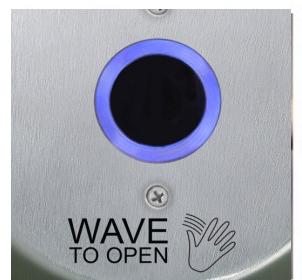

LIGHT RING OPTION

RED, GREEN, BLUE FIELD SELECTABLE

ACTIVE ON SWITCH STATUS OR REMOTE STATUS (DOOR CLOSED OR LOCKED)

'-SGLR' OPTION, STAINLESS STEEL ONLY

• Single Gang
• Double Gang
• 6" Round SS

CM-331 & CM-332 MODELS ONLY

NOT AVAILABLE ON BATTERY POWERED MODELS (CM-333 and CM-336)

NOT AVAILABLE ON BASIC CM-324 OR CM-325 MODELS

WEATHER/WATER RESISTANCE

NON-ILLUMINATED FACEPLATES

Water resistant, sold with gasket

• Narrow
• Single Gang
• Double Gang

ILLUMINATED & ROUND FACEPLATES

Outdoor rated but not intended for direct exposure to rain/snow (on bollard)

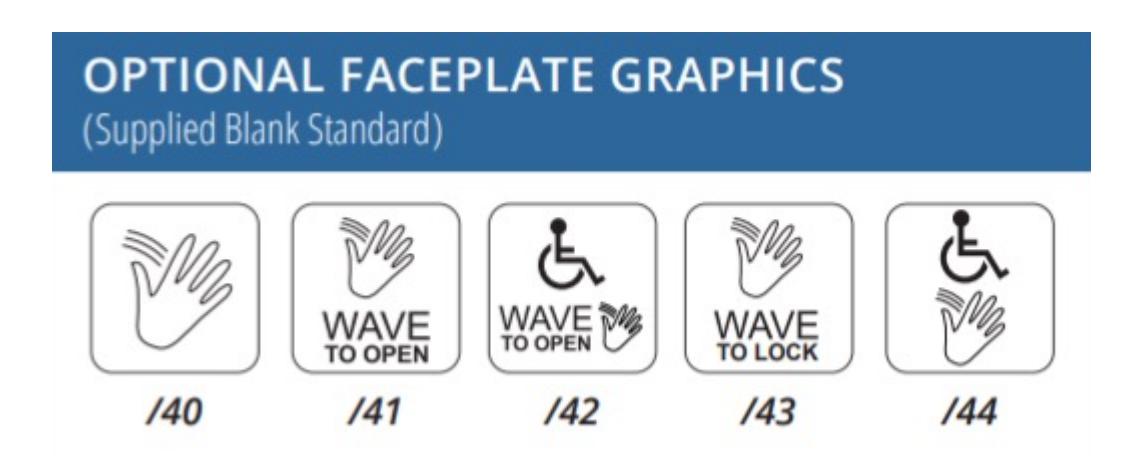

GRAPHIC OPTIONS – ALL MODELS

Add 'F' to option # for French Language.

WIRELESS OPTIONS

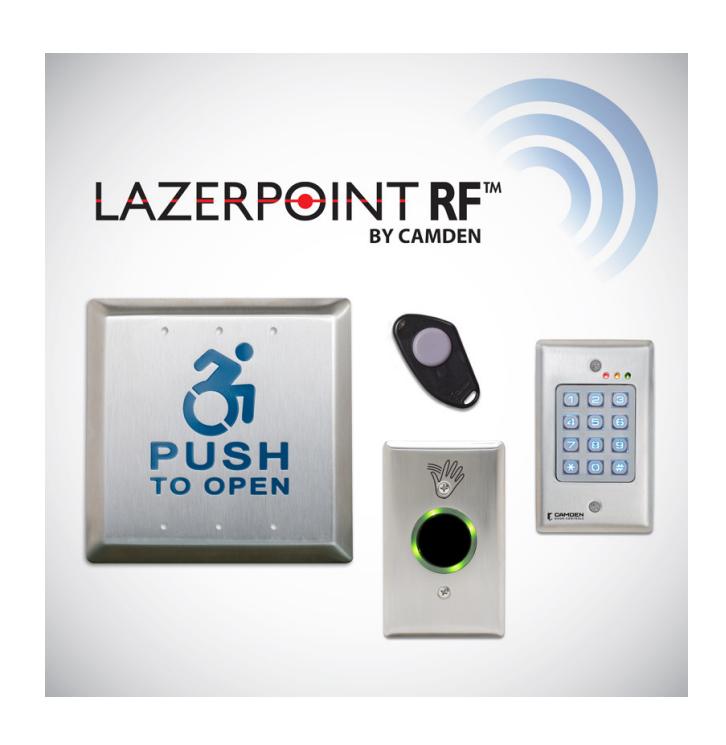

NOT JUST ANY WIRELESS – LAZERPOINT RF™

• 915Mhz Spread Spectrum Wireless
• The Lazerpoint RF™ includes wall switches, fobs, keypads and touchless switches

BATTERY AND LINE POWERED WIRELESS

• CM-336 is battery powered wireless

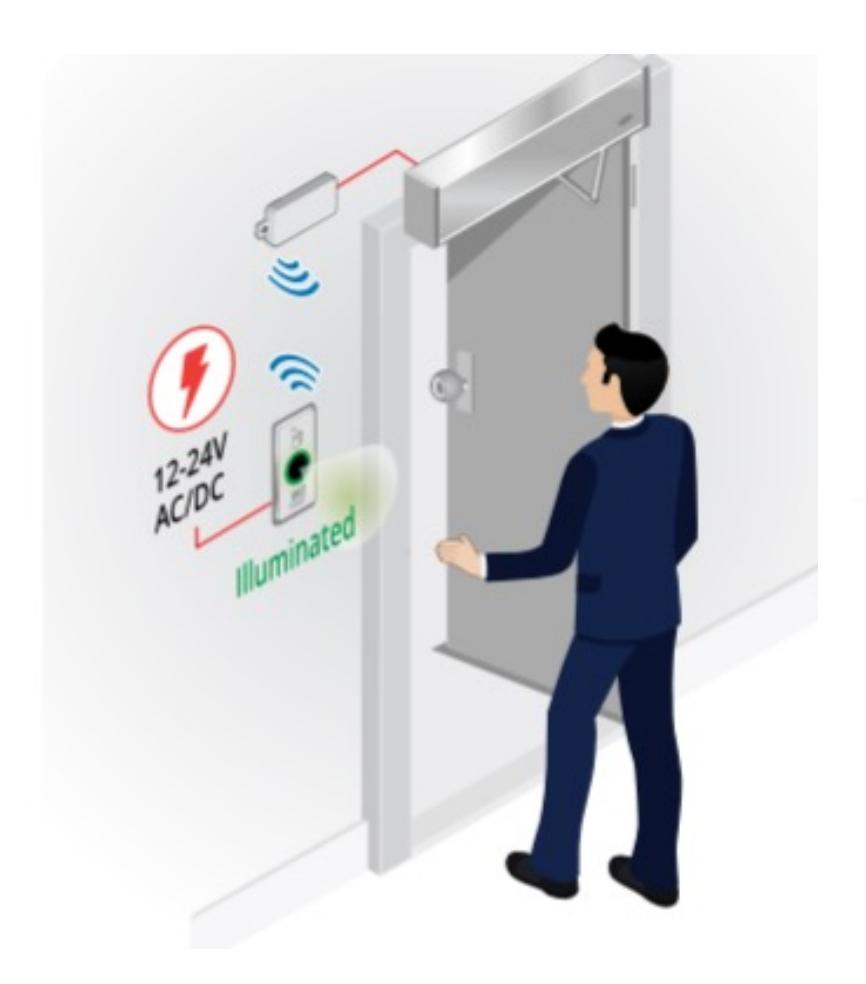

• Option to add CM-TX99 plug in wireless transmitter to CM-331 and 332 models.

3 COMPATIBLE RECEIVERS

- CM-RX90 and RX-92

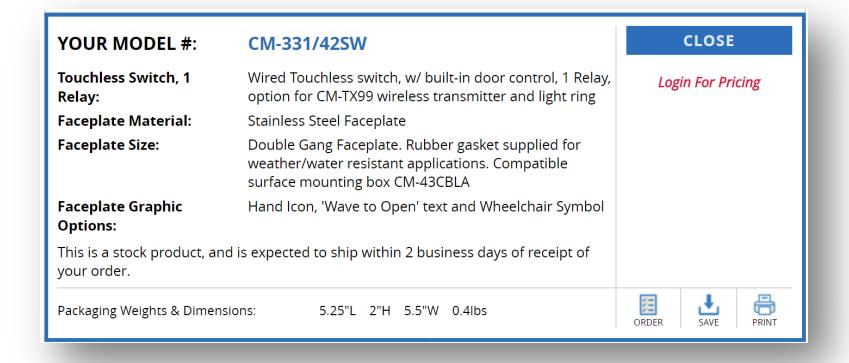

ONLINE SWITCH CONFIGURATION WIZARD

CLICK ON THE HAT TO EASILY SELECT THE MODEL & OPTIONS YOU NEED FOR YOUR APPLICATION

LOG IN FOR LIST OR NET PRICING

ORDER, SAVE OR PRINT THE RESULTS

COMPATIBLE MOUNTING BOXES ALSO SHOWN

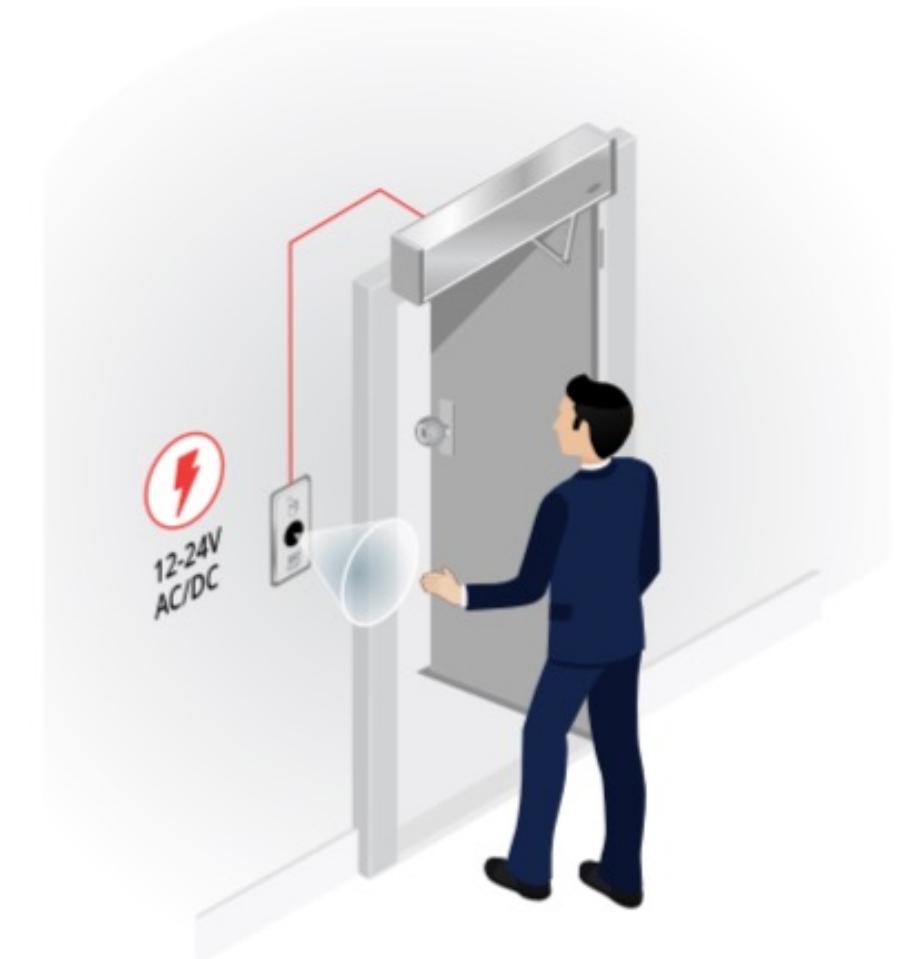

CM-324 Basic Door Control

Ideal for economical door activation where a door or locked status indicator is not required.

CM-325 Short Range Model

Ideal for short range sensing in confined areas (such as in restrooms) and to resist false activation due to highly reflective surfaces (typically found in health care facilities).

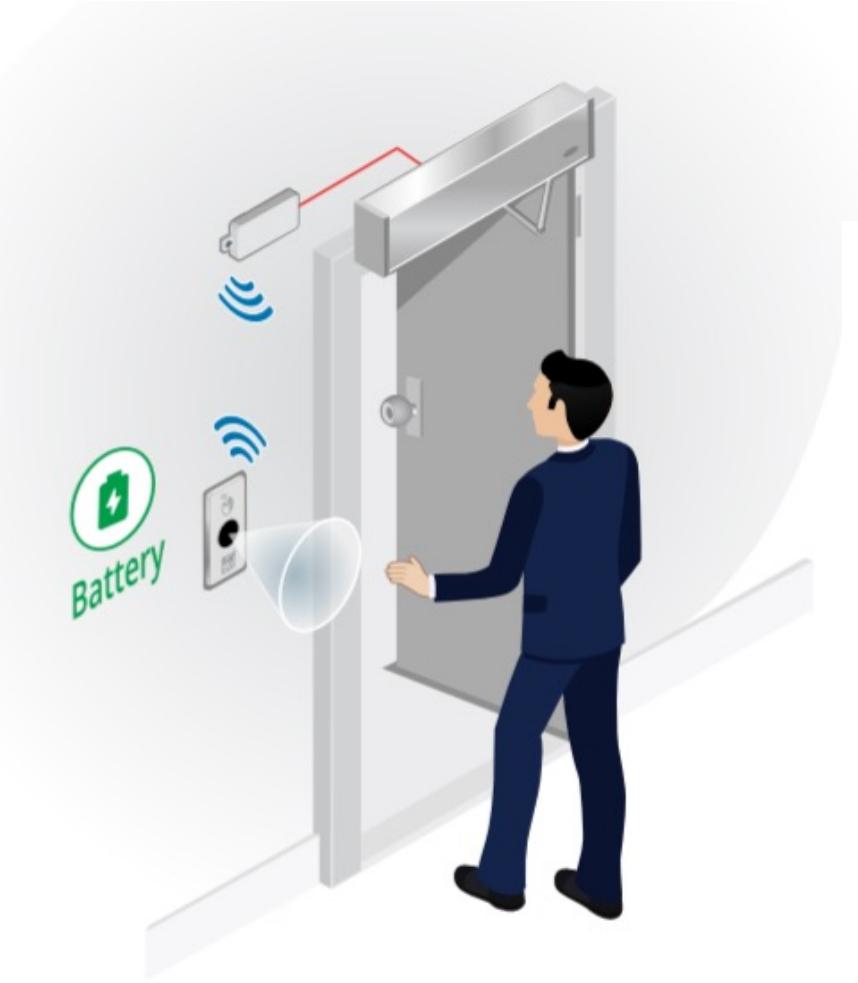

CM-336 Battery Powered Wireless

Ideal for door activation where installing wiring is difficult or expensive, and for instant replacement of non-powered switches in retrofit applications.

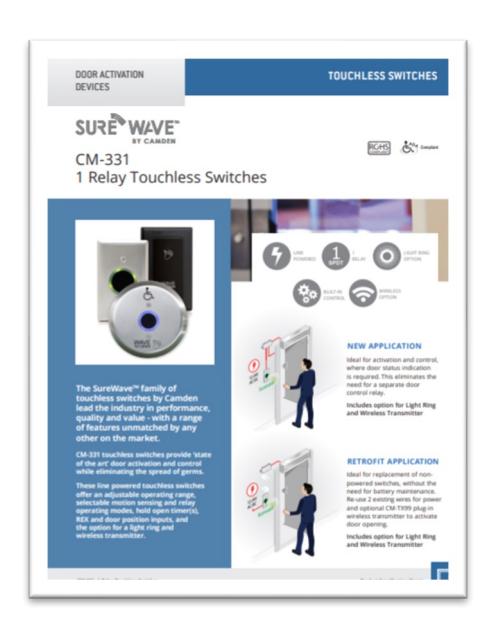

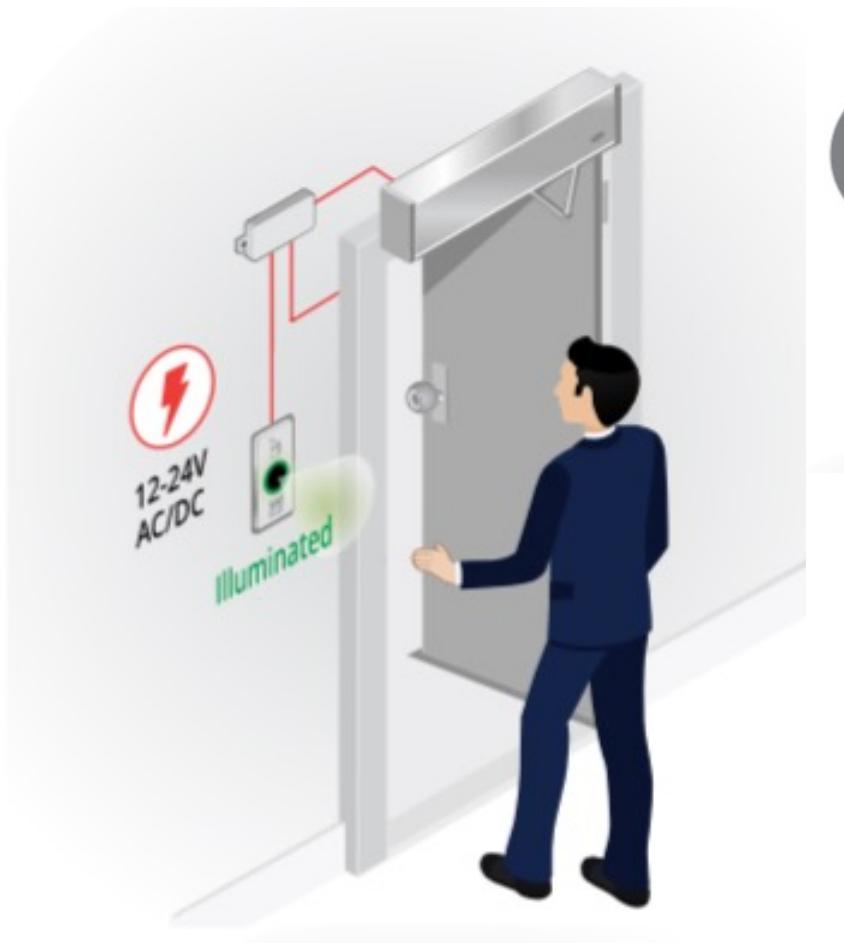

CM-331 (New Application) Switch with Door Control

Ideal for activation and control, where door status indication is required. This eliminates the need for a separate door control relay.

CM-331 (Retrofit Application) without Batteries

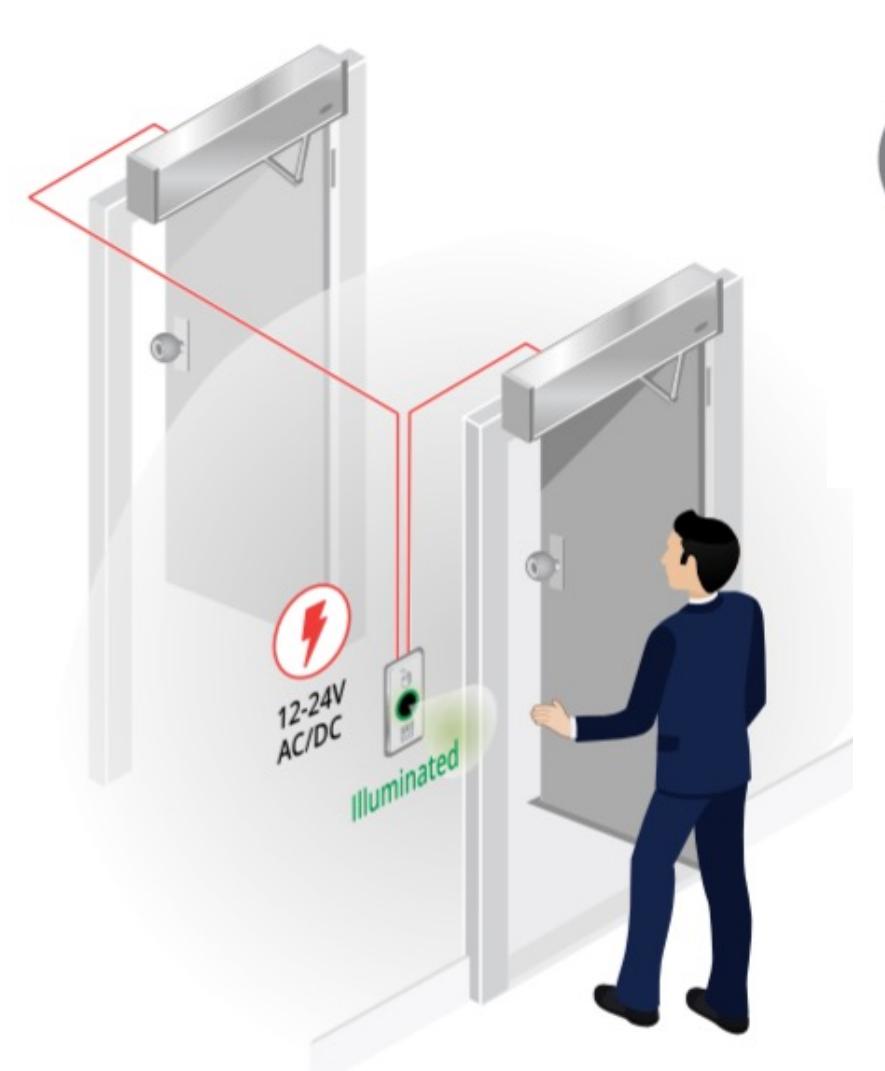

CM-332 2 Relay Switch with Door Sequencing

Ideal for activation and control of two doors (particularly vestibule applications) or additional control of electrified lock or signal devices. This eliminates the need for a separate door control relay

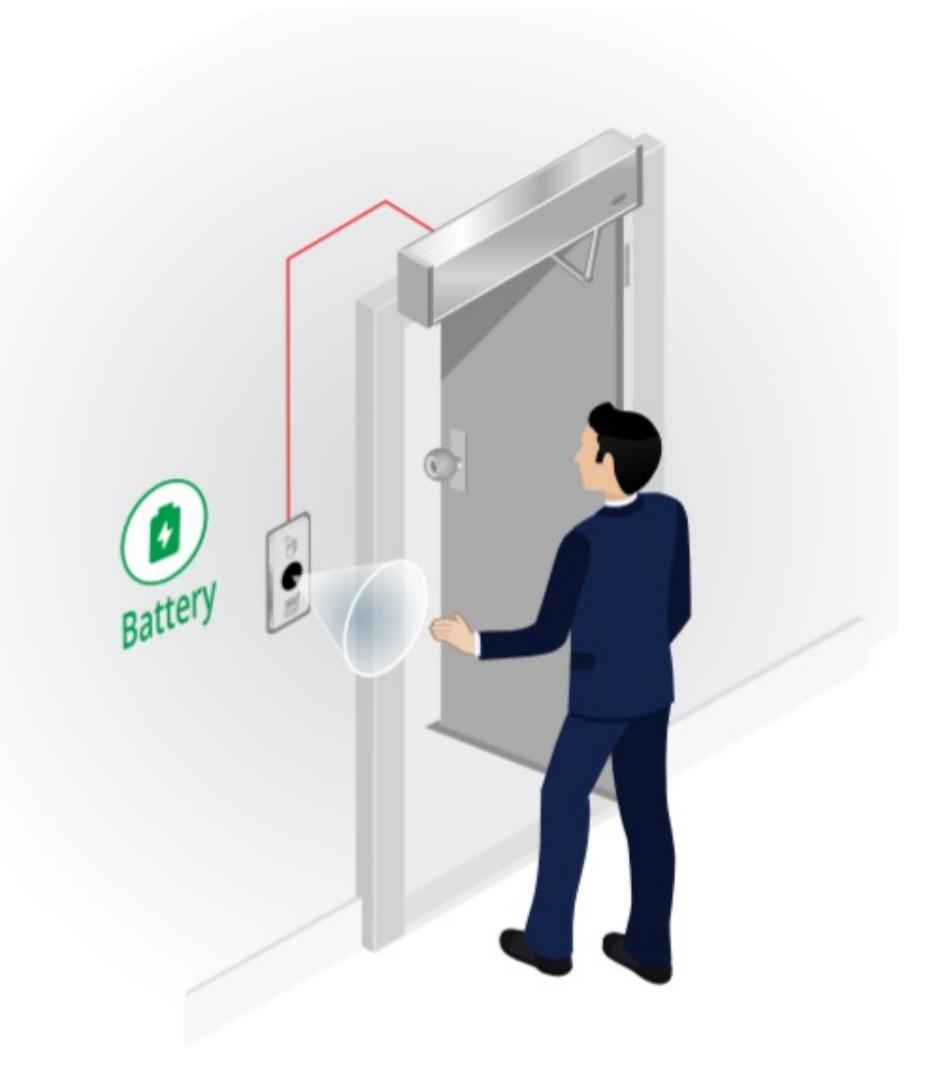

CM-333 Hybrid Battery Powered with 1 Relay

Designed to retrofit non-powered push plate switches with sensor switches without any additional wiring. These switches offer the longest alkaline battery life of any switch in the market, with the option for lithium batteries.

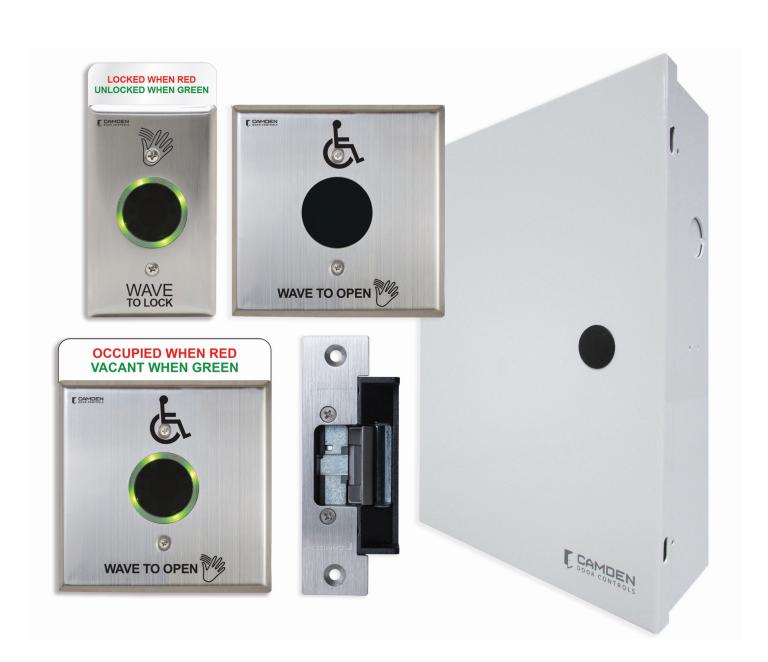

CX-WC16-PS RESTROOM CONTROL SYSTEM KIT

SureWave™ touchless switches enable Camden to offer a restroom control system that features a shortrange switch, to avoid false activation, as well as LED indication of both 'occupancy' and 'door locked' status.

The kit includes a grade 2 electric strike and controller/power supply cabinet.

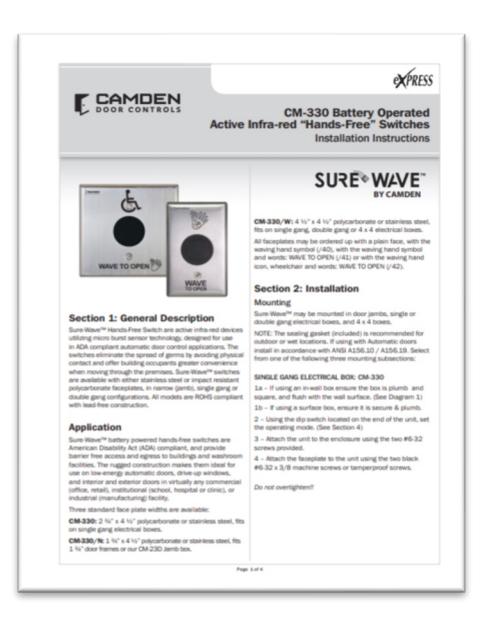

A COMPLETE LIBRARY OF ONLINE RESOURCES
