Supplemental Handing Instructions i-ct00049

253 REINFORCEMENT PIVOT HANDING INSTRUCTIONS

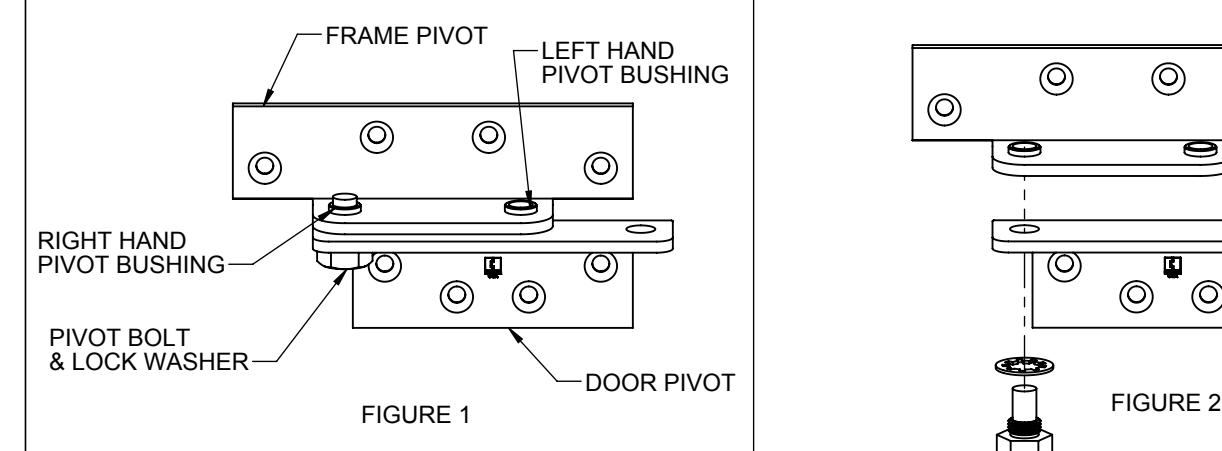

STEP NO. 1 DETERMINE THE HANDING REQUIRED. FIGURE 1 SHOWS THE 253 PIVOT AS BEING RIGHT HANDED.

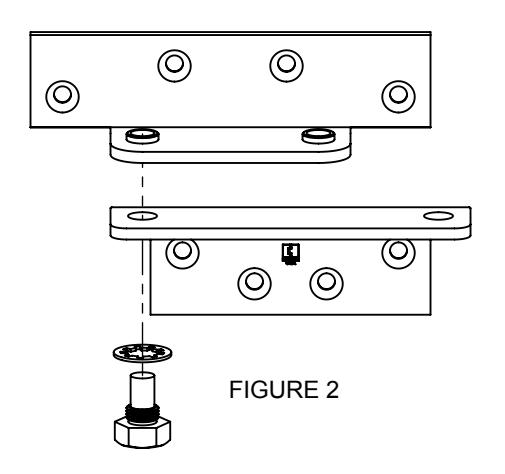

STEP NO. 2 TO CHANGE THE HANDING FIRST REMOVE THE PIVOT BOLT AND LOCK WASHER AS SHOWN IN FIGURE 2 BELOW.

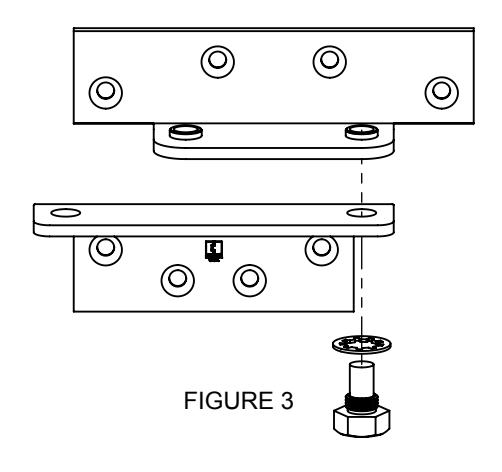

STEP NO. 3 NOW REPOSITION THE DOOR PIVOT TO UTILIZE THE ALTERNATE HANDING PIVOT BUSHING

STEP NO. 4 INSTALL THE PIVOT BOLT AND LOCK WASHER IN THE ALTERNATE HANDING PIVOT BUSHING.

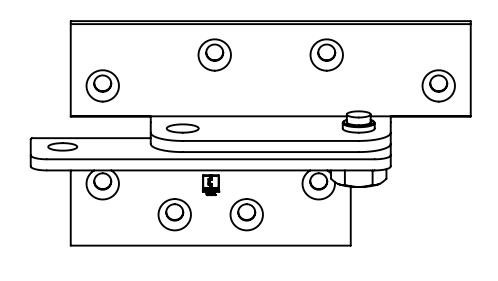

THEN REMOVE THE PIVOT BUSHING THAT IS NOT BEING UTILIZED TO PREVENT INTERFERENCE. FIGURE 4 SHOWS THE HINGE BEING LEFT HANDED.

FIGURE 4

DRAWING NO: I-CT00049	REV:	SHEET 1 OF 1
