SUPERSCAN ACTIVE INFRARED SENSOR INDUSTRIAL

Distance Measuring Technology

FEATURES

• A focused pattern may be ideal for many applications where increased safety and/or functionality is needed

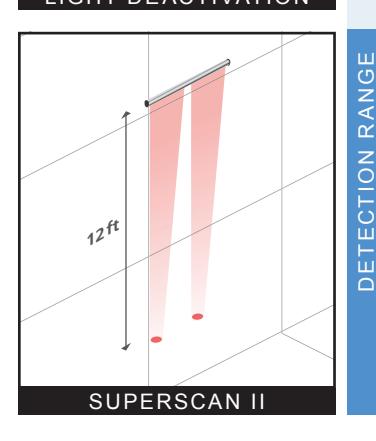

• Adjustable detection range from 2 to 12 feet
• Background elements, such as texture, color or reflectivity do not effect detection sensitivity
• Single unit emitter and receiver in the same module
• Adjustable to various angles for unique applications; adjustable detection angle in 5-degree increments

The SUPERSCAN is a presence sensor that uses

Precise Detection For Industrial Applications

APPLICATIONS

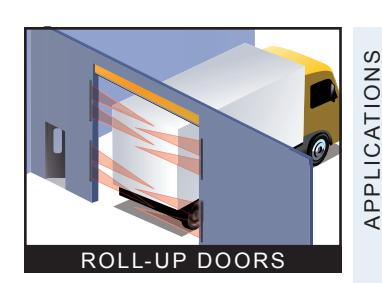

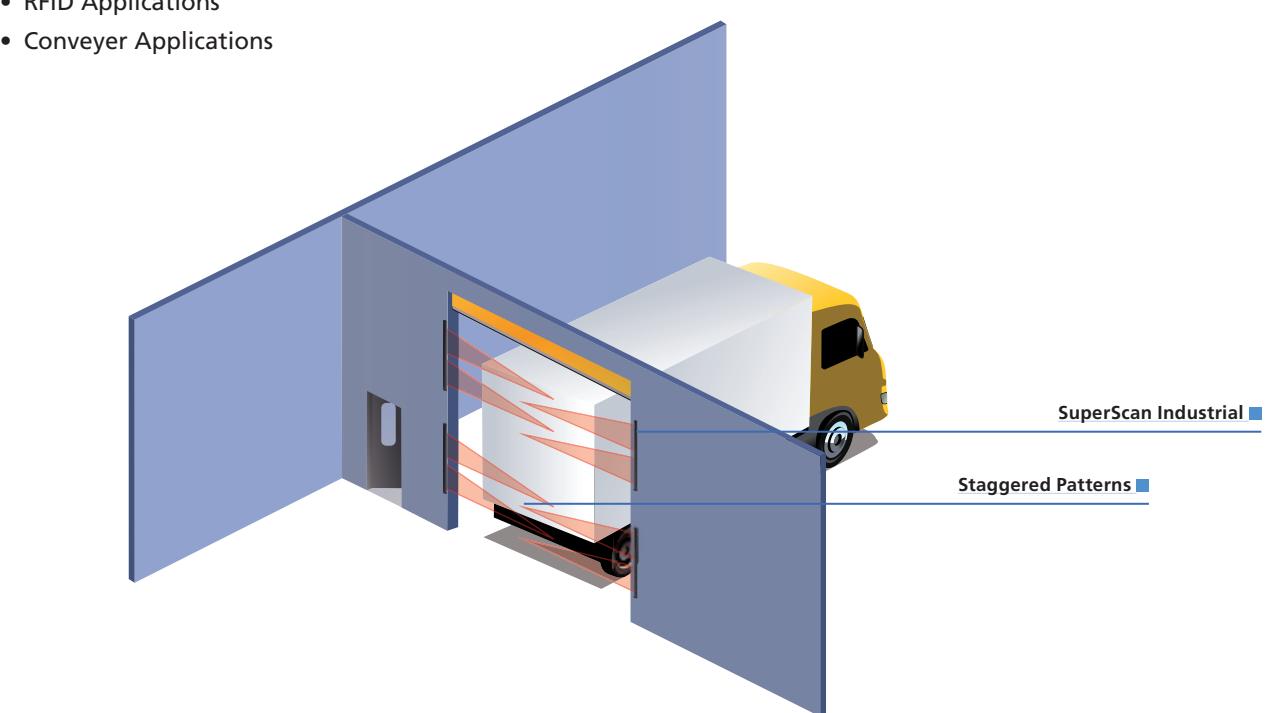

• High-Speed Roll-Up Doors
• Industrial Swinging, Sliding & Bi-folding Doors
• Swinging & Sliding Gates

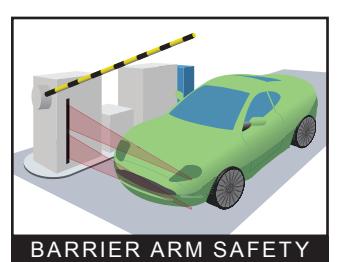

• Barrier Arm Safety
• Off-Door Applications (i.e. Light Activation)

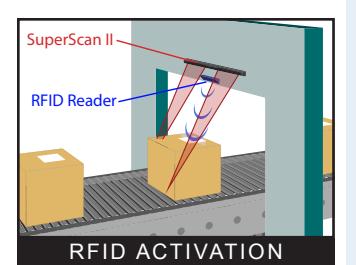

• RFID Applications

• Material Handling Applications distance measuring technology to project focused active infrared patterns which can be used for activation, safety and reactivation on industrial door, gate and RFID applications.

International Door Closers, Inc.

COPYRIGHT 2018 INTERNATIONAL DOOR CLOSERS, INC www.intldoorclosers.com

West: 800-544-4422 • East: 800-225-6737

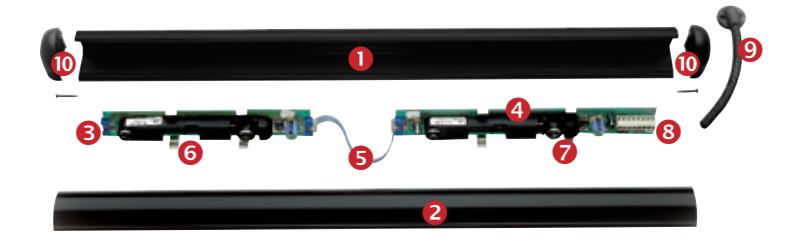

COMPONENTS

1.	6.
Aluminum Housing	Mounting clip for angle adjustment
2.	7.
Lens	Distance adjustment cam
3.	8.
Slave Module	Terminal block
4.	9.
Master Module	Wiring transfer loop
5. Plug-in ribbon cable	10. End cap

TECHNICAL SPECIFICATIONS

Technology	Focused Active Infrared
Detection Mode	Presence
Measurement of Distance	Triangulation
Adjustable Detection Range	Minimum: 2'3" Maximum: 12'
Temperature Range	-30º F to +140º F
Supply Voltage	12 to 24 VAC / VDC; ±10%
Relay Hold Time
Potentiometer Range	0.1 s to 4.5 s
Output Maximum Contact Rating Hold Time	Single Relay 1 A @ 30 V (resistive) 0.1 to 4.5 seconds
Response Time	< 50 ms
Material	Aluminum, ABS plastic / acrylic
Housing Color	Dark Bronze Anodized
Industrial Product Family 10SSI	SuperScan I, 34.5" housing end cap to end cap – 1 master Custom lengths and additional slaves available

Specifications are subject to change without prior notice.

DISCLAIMER This document as well as all other enclosed documents (quotation / specification / other) are provided «as is» without warranties of any kind, either expressed or implied, including but not limited to the implied warranties of merchantability, fitness for a particular purpose, or non-infringement. / Information is supplied upon the condition that the persons receiving it will make their own determination as to its suitability for their purposes prior to use. In no event will IDC be responsible for damages of any nature whatsoever resulting from the use of or reliance upon information from this document or the products to which the information refers. / IDC has the right without liability to change descriptions and specifications at any time. / Prices, shipping and availability are subject to change without prior notice.

Maximum Number of Modules 1 – 10; 1 Master + up to 9 Slaves

Degree of Protection IP53

International Door Closers, Inc.
