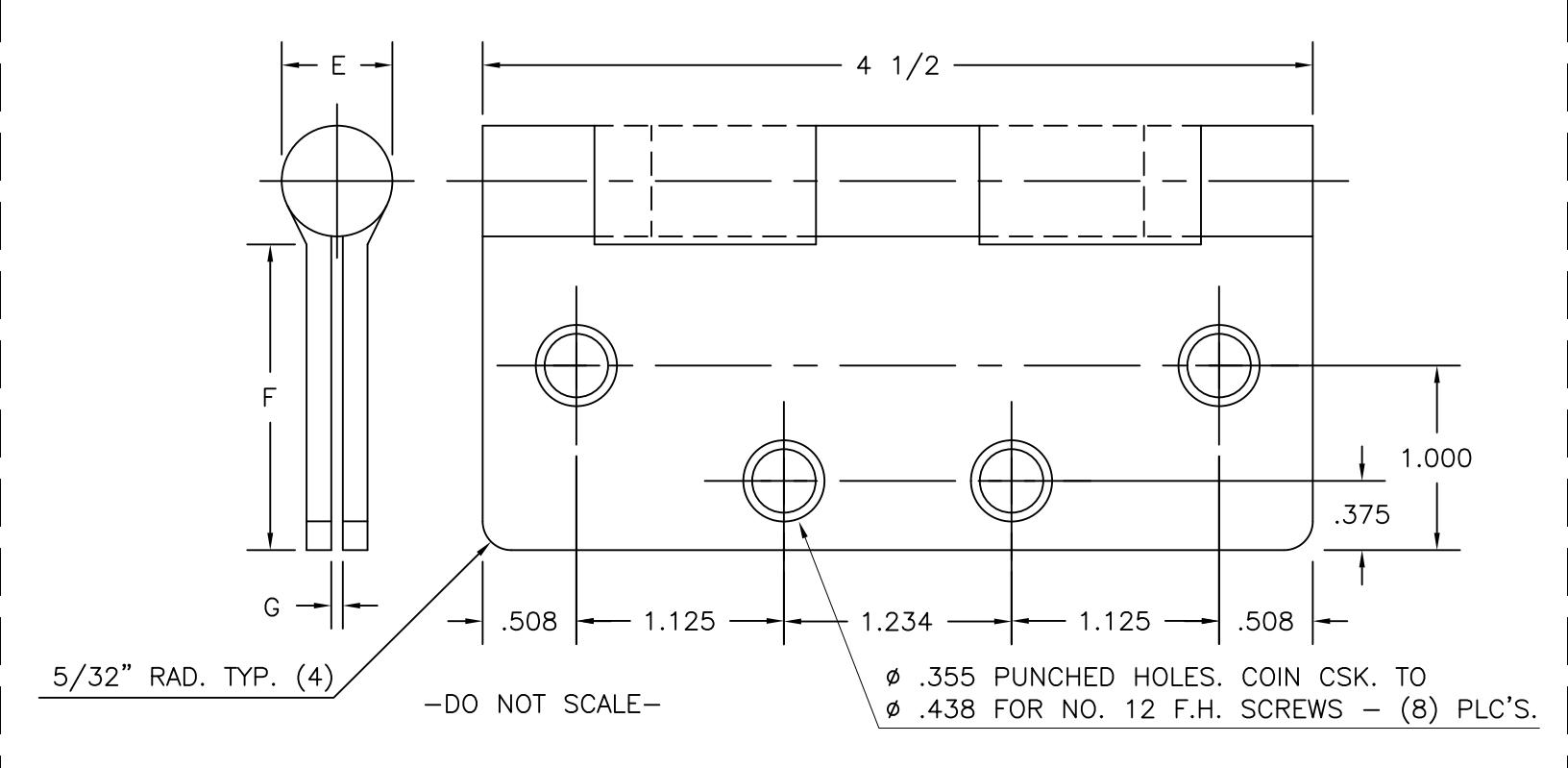

Storefront Hinge Template – T-SF

SIZE: $4\; \backslash frac\{1\}\{2\}\; \backslash times\; 4$

CATALOG	NUMBER			(F) DI	STANCE F	ROM EDGE	OF LEAF	TO SWAGE	LINE
STEEL HINGES	NON- FERROUS HINGES		(E) KNUCKLE DIAMETER	4 1/2 x 4						(G) SWAGE
	A-793	.134	39/64	1 5/8						.000
	A-794	.134	39/64	1 5/8						.000
	A-796	.134	39/64	1 5/8						.054
	A-797	.134	39/64	1 5/8						.054

ALL DIMENSIONS ARE IN INCHES.

BULK PACK IN ENVELOPES W/OUT SCREWS / AMS&AWS ELECTRICS ONLY

Machine Screw Size- $12-24\; \backslash times\; 1/2$ " F.H. Wood Screw Size- No. $12\; \backslash times\; 1\; \backslash cdot\; 1/4$ " F.H.

Hager template hinges are made in size, gauge and with screw holes located to conform to ANSI-A156.7.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.

HAGER COMPANIES 139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300
