Stanley Commericial QM Series Electric Lock II-M1500-25

STANLEY COMMERCIAL QM SERIES ELECTRIC LOCK M1510/M1520C FUNCTION CHANGE INSTRUCTIONS

TO CHANGE THE LOCKING FUNCTION FOLLOW THE INSTRUCTIONS BELOW CAREFULLY.

STEP 1: REMOVE THE 4 COVER SCREWS AND COVER.

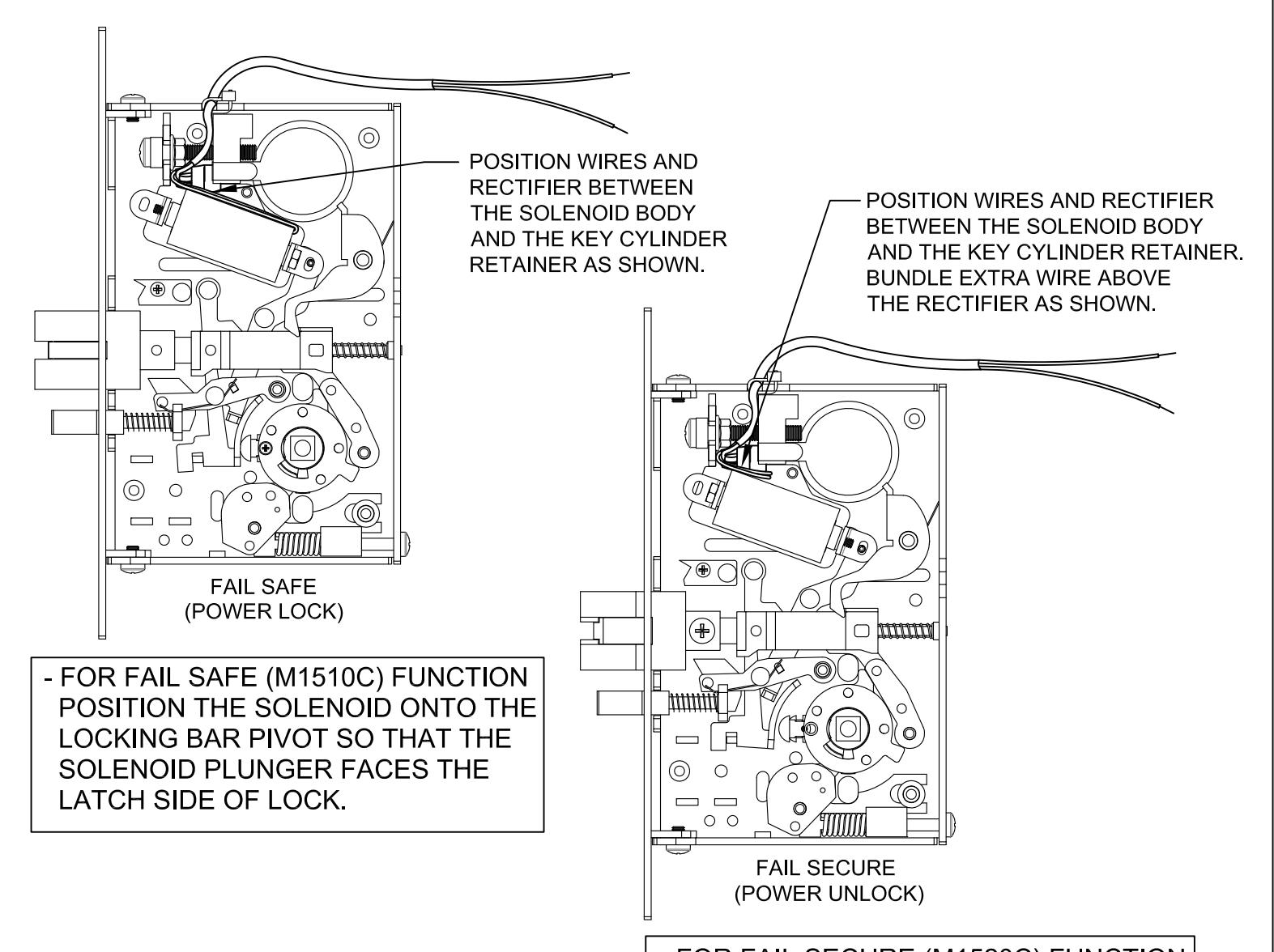

STEP 2: USE THE ILLUSTRATION BELOW FOR SWITCHING LOCK FUNCTION.

STEP 3: MAKE SURE SOLENOID IS PROPERLY POSITIONED IN CASE SLOT.

STEP 4: REPLACE COVER AND SCREWS.

- FOR FAIL SECURE (M1520C) FUNCTION POSITION THE SOLENOID ONTO THE LOCKING BAR PIVOT SO THAT THE SOLENOID PLUNGER FACES THE BACK OF LOCK.
