Stanley 674HD Specifications

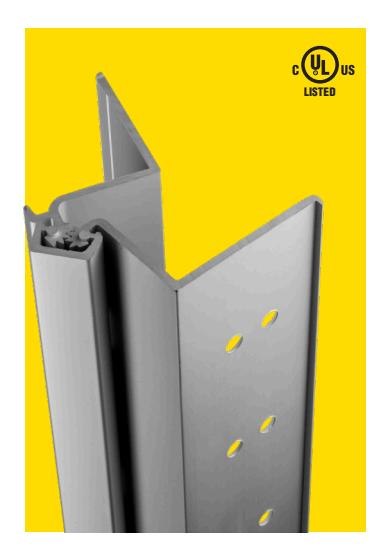

674HD- Heavy Duty Full Mortise

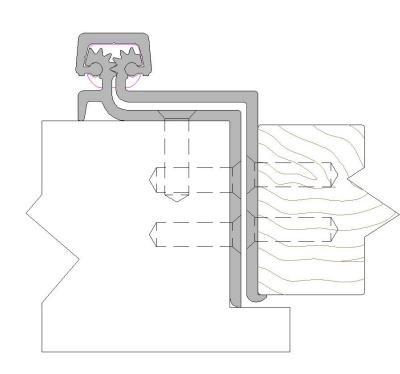

for Flush Mount (no inset) Swing Clear Doors

• Distributes door weight and stress along the full length of door and frame
• No misaligned pivot points of individual hinges
• For use on 1-3/4" doors only
• Typically no additional reinforcement required
• Clear aluminum, dark bronze and black anodized finishes
• Conforms to ANSI/BHMA Standard A156.26-1996, Grade 1
• Supports doors up to 450 lbs
• Hinge covered by limited lifetime warranty for the life of the building
• Approved for use on metal swinging type fire doors rated up to and including 90 minutes (Order "FR" option for 3 hour rating)
• Approved for use on wood swinging type fire doors rated up to and including 60 minutes (order "FR" option for 90 minute rating)

Hinges can be furnished as follows:

• Electric switch (CS)
• Dutch door prep (DD)
• Electronic Power Transfer Specify manufacturer and model number and handing of transfer at time of order (EPT)
• Fire Studs (FR)
• Lead Lined (LL)
• School option (SO)
• Custom length (specify length on order)

Size (Inches) Finish
AL
DB
BK

^* Fasteners included: 12-24 x 3/4" undercut self-drilling, thread-forming tek machine screws

Additional fastener options must be ordered separately

^** Hinge comes standard with all tek screws. To order wood screws, please indicate "Half Tek / Half Wood" or "All Wood" at time of order.
