Stanley 673HDLL Specifications

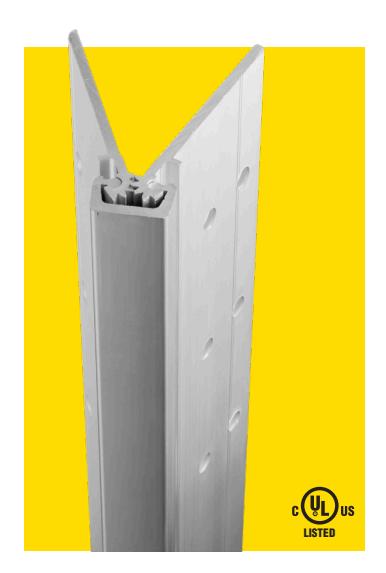

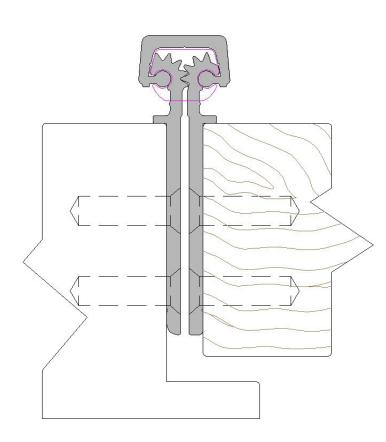

673HD- Heavy Duty Full Mortise

for Flush Mount (no inset) Doors

• Distributes door weight and stress along the full length of door and frame
• No misaligned pivot points of individual hinges
• Typically no additional reinforcement required
• For use with 2" thick doors
• Clear aluminum, dark bronze and black anodized finishes
• Conforms to ANSI/BHMA Standard A156.26-1996, Grade 1
• Supports doors up to 450 lbs
• Hinge covered by limited lifetime warranty for the life of the building
• Approved for use on metal swinging type fire doors rated up to and including 90 minutes (Order "FR" option for 3 hour rating)
• Approved for use on wood swinging type fire doors rated up to and including 60 minutes (order "FR" option for 90 minute rating)

Hinges can be furnished as follows:

• Electric through-wires with Easy Access Panel
• Electric through-wires supplied as three separate sections
• Electric switch (CS)
• Dutch door prep (DD)
• Electronic Power Transfer Specify manufacturer and model number and handing of transfer at time of order (EPT)
• Fire Studs (FR)
• Lead Lined (LL)
• School option (SO)
• Custom length (specify length on order)

How to Order
Series	Option	Option Description	Size (Inches)	Finish
673HD	CE-12EA	Electric through-wires with Easy Access Panel	79	AL
	CE-12R	Electric through-wires supplied as three separate sections	83	DB
	CS	Electric switch (CS)	85	BK
	DD	Dutch door prep (DD)	95
	EPT	Electronic Power Transfer – Specify manufacturer and model number and handing of transfer at time of order (EPT)	120
	FR	Fire Studs (FR)
	LL	Lead - Lined (LL)
	SO	School option (SO)
		Custom length (specify length on order)
		Additional fastener options must be ordered separately

^* Fasteners included: 12-24 x 3/4" undercut self-drilling, thread-forming tek machine screws

^** Hinge comes standard with all tek screws. To order wood screws, please indicate "Half Tek / Half Wood" or "All Wood" at time of order.
